Brake Control System (VDC - Introduction)
›
With VDC
›
System Description
›
System
›
Circuit Diagram
Circuit Diagram

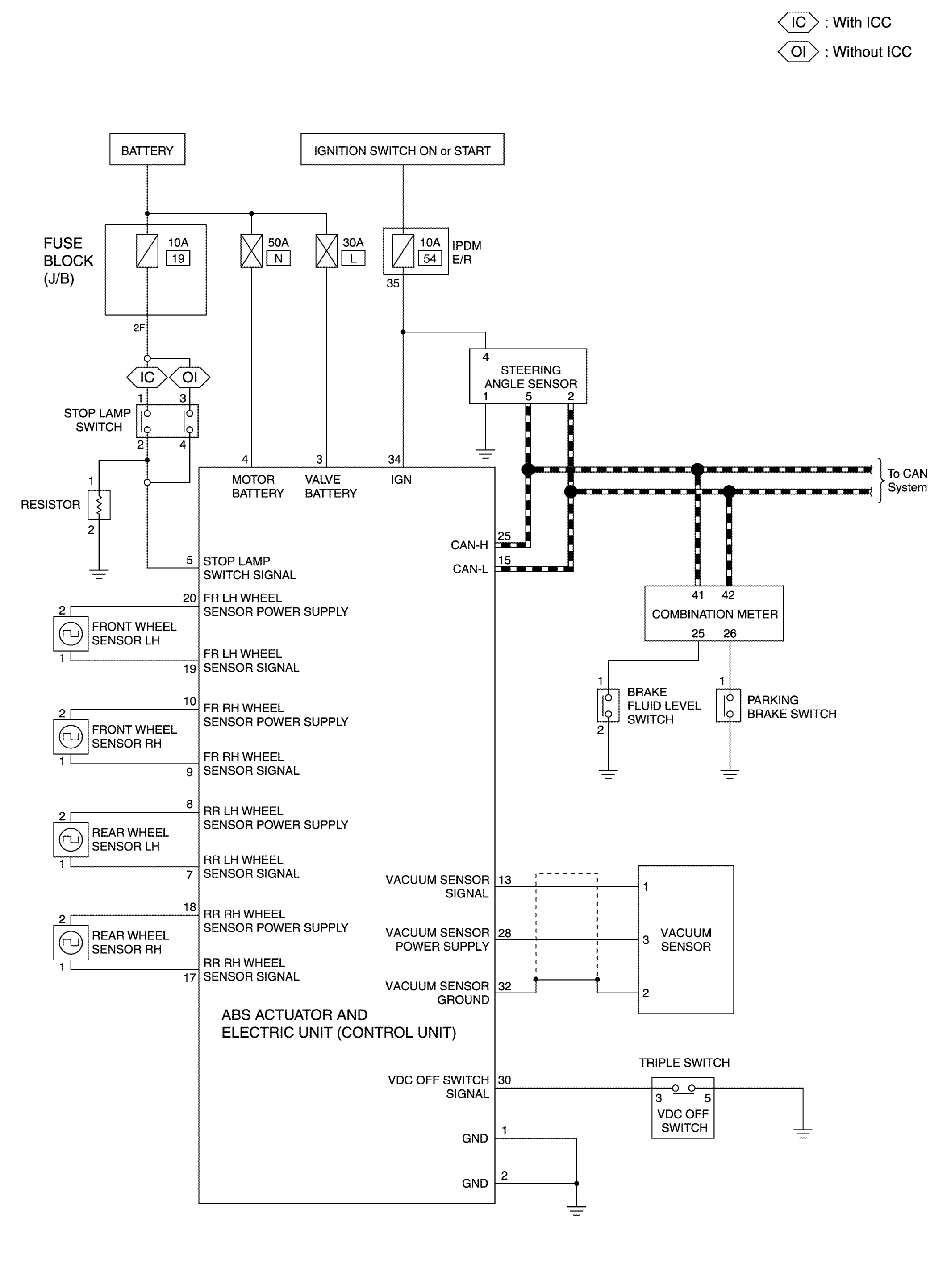

Fig 1: Brake Control System Circuit Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Brake Control System Connector End Views
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
