Power Distribution System Connectors

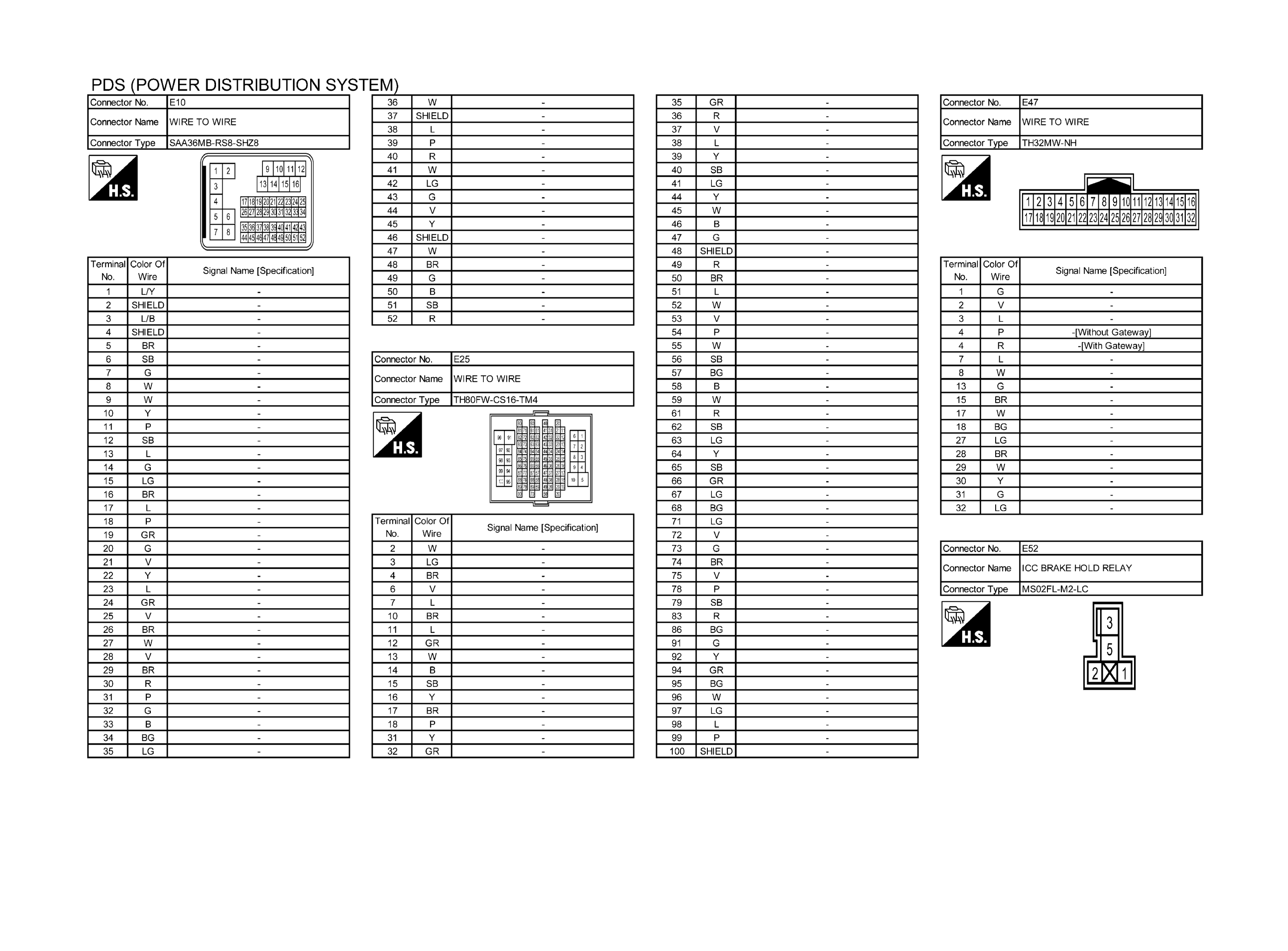

Fig 1: Power Distribution System Connectors (1 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

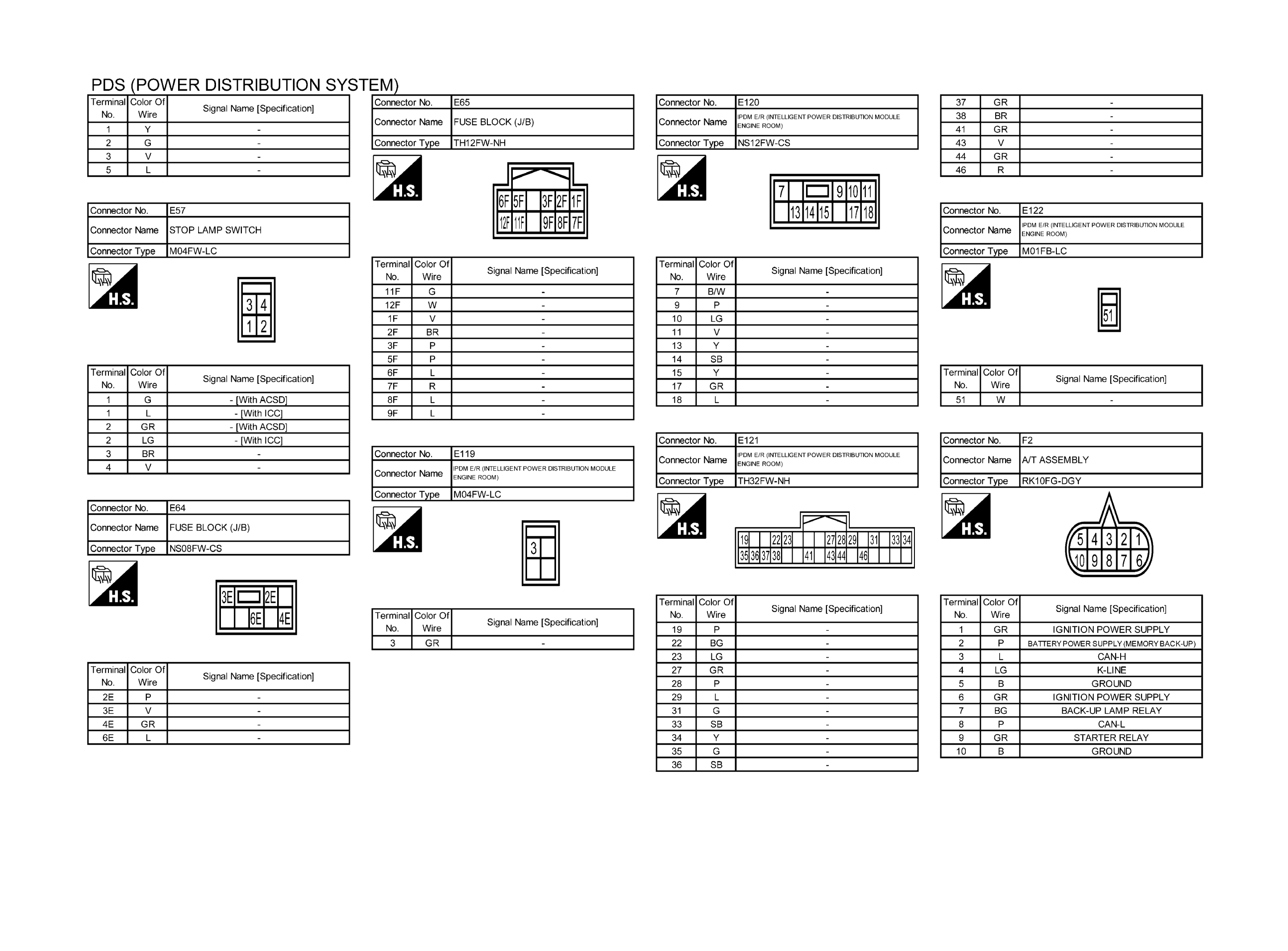

Fig 2: Power Distribution System Connectors (2 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

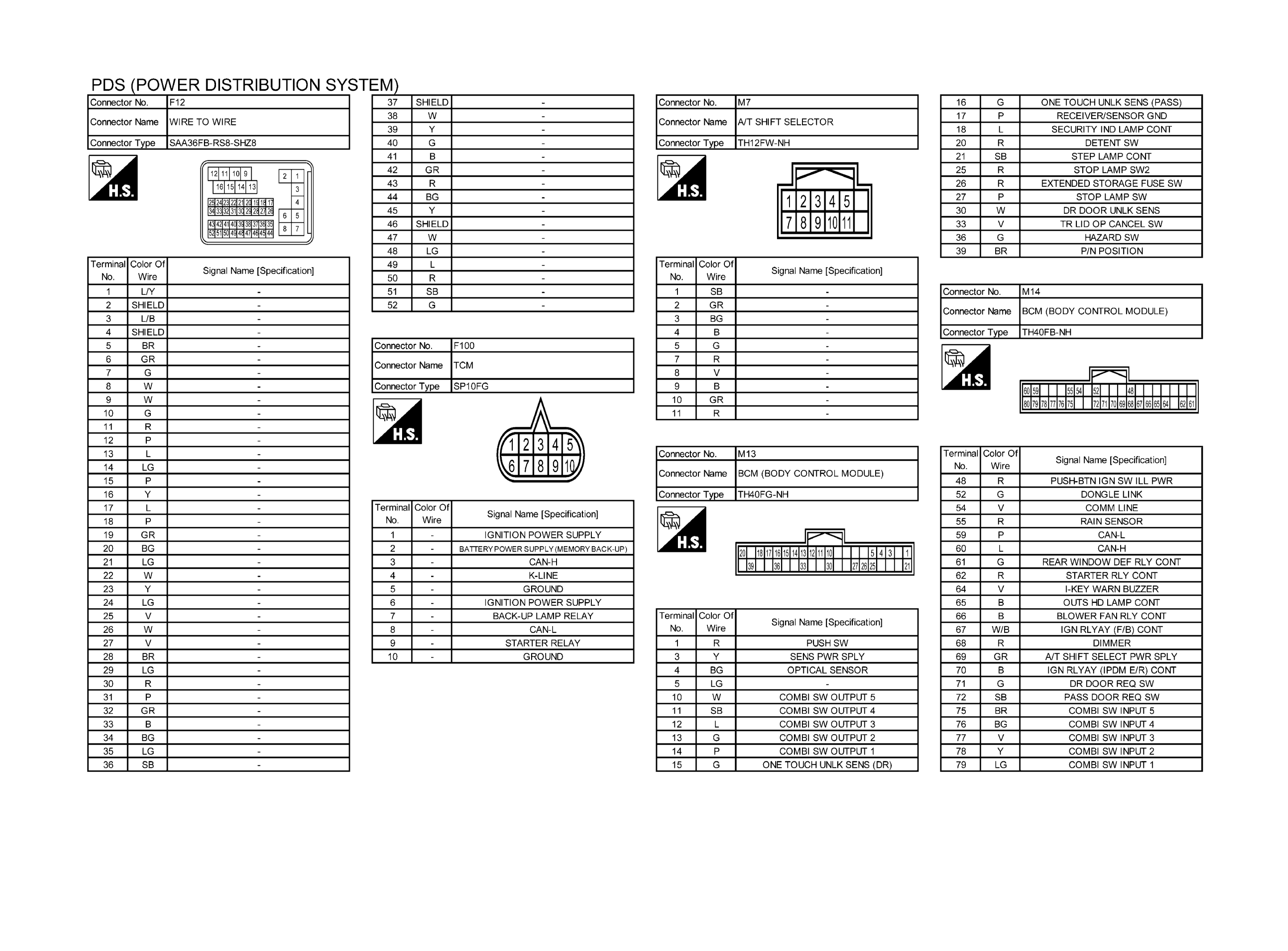

Fig 3: Power Distribution System Connectors (3 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

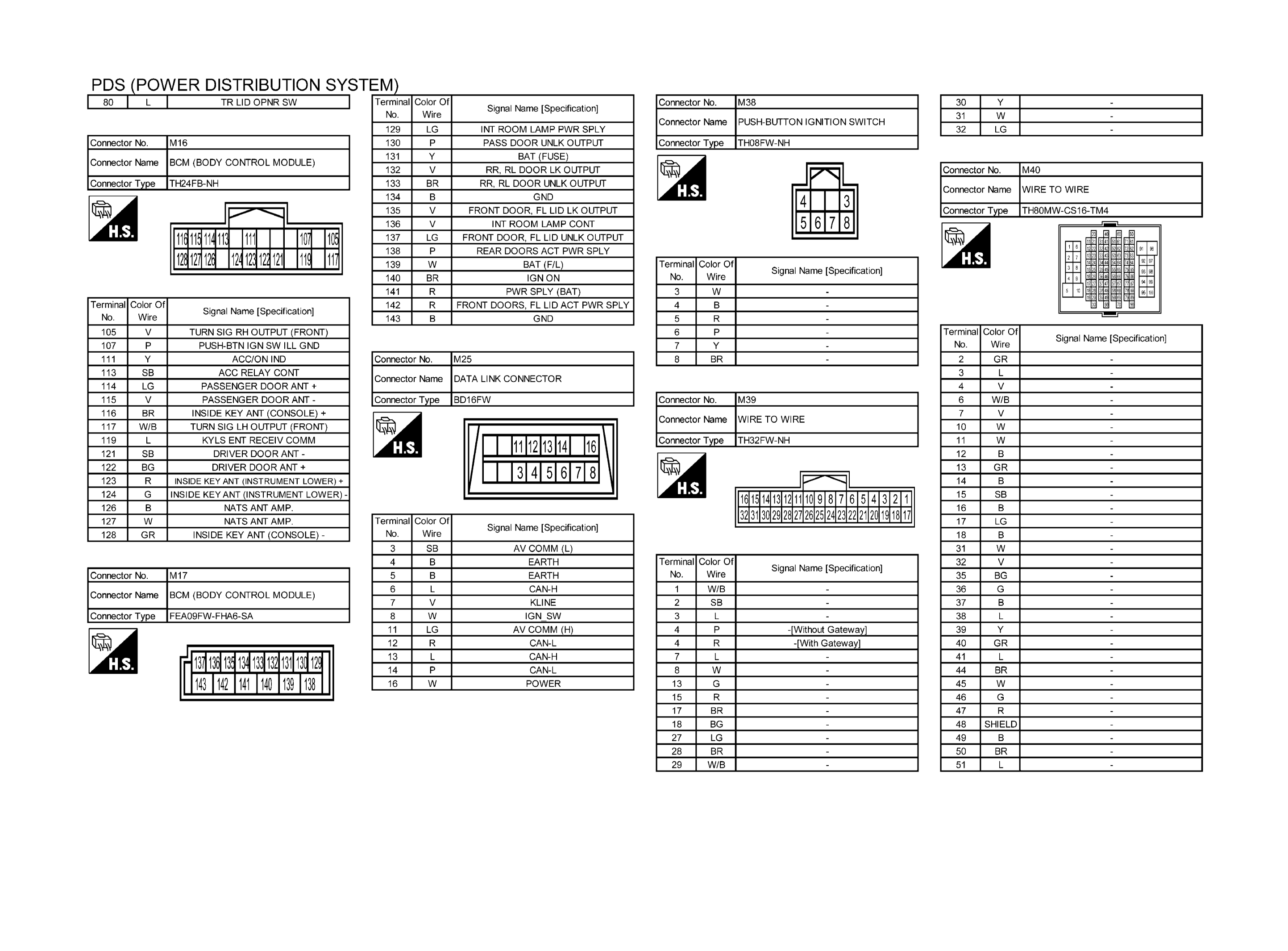

Fig 4: Power Distribution System Connectors (4 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

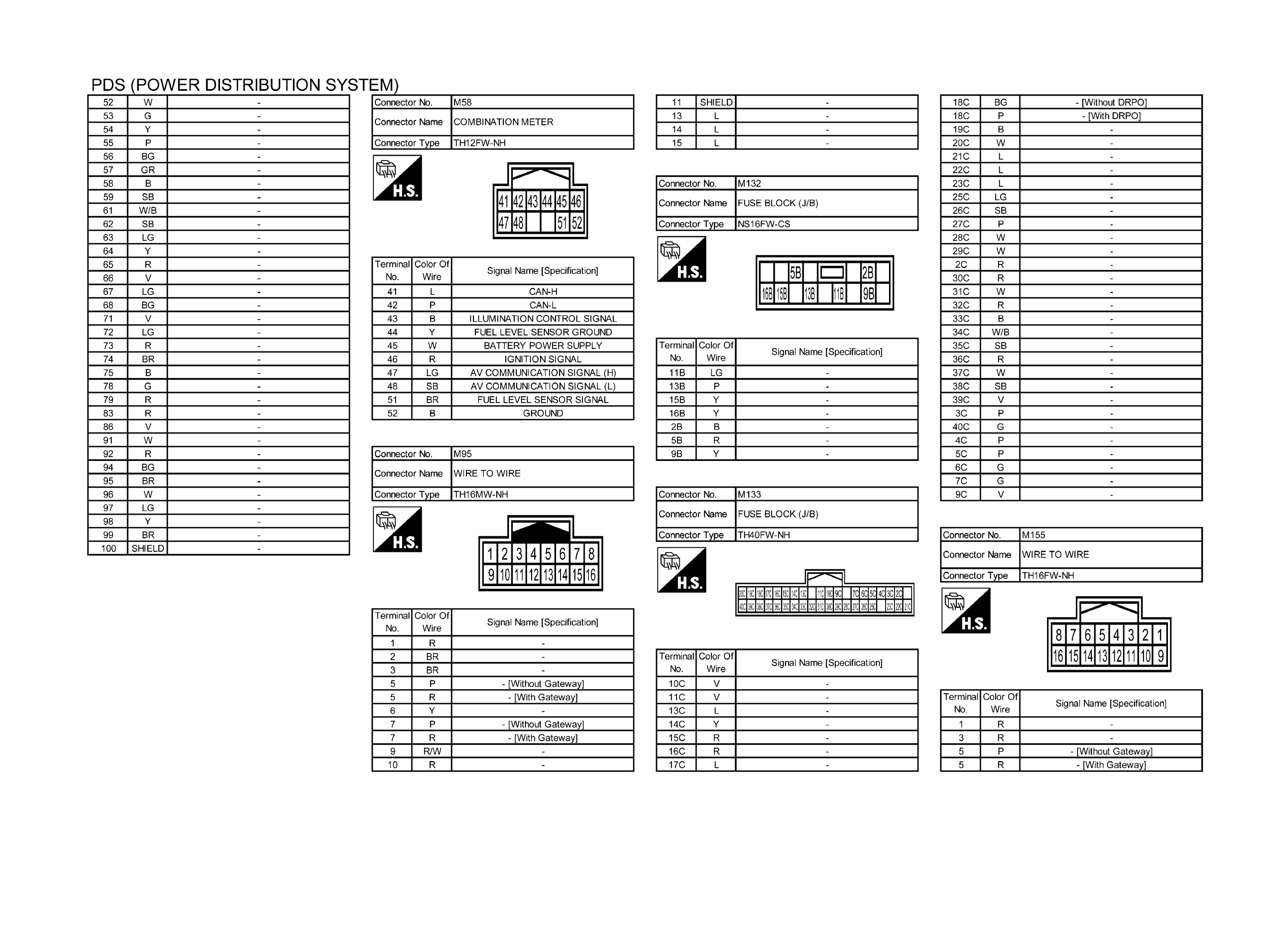

Fig 5: Power Distribution System Connectors (5 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

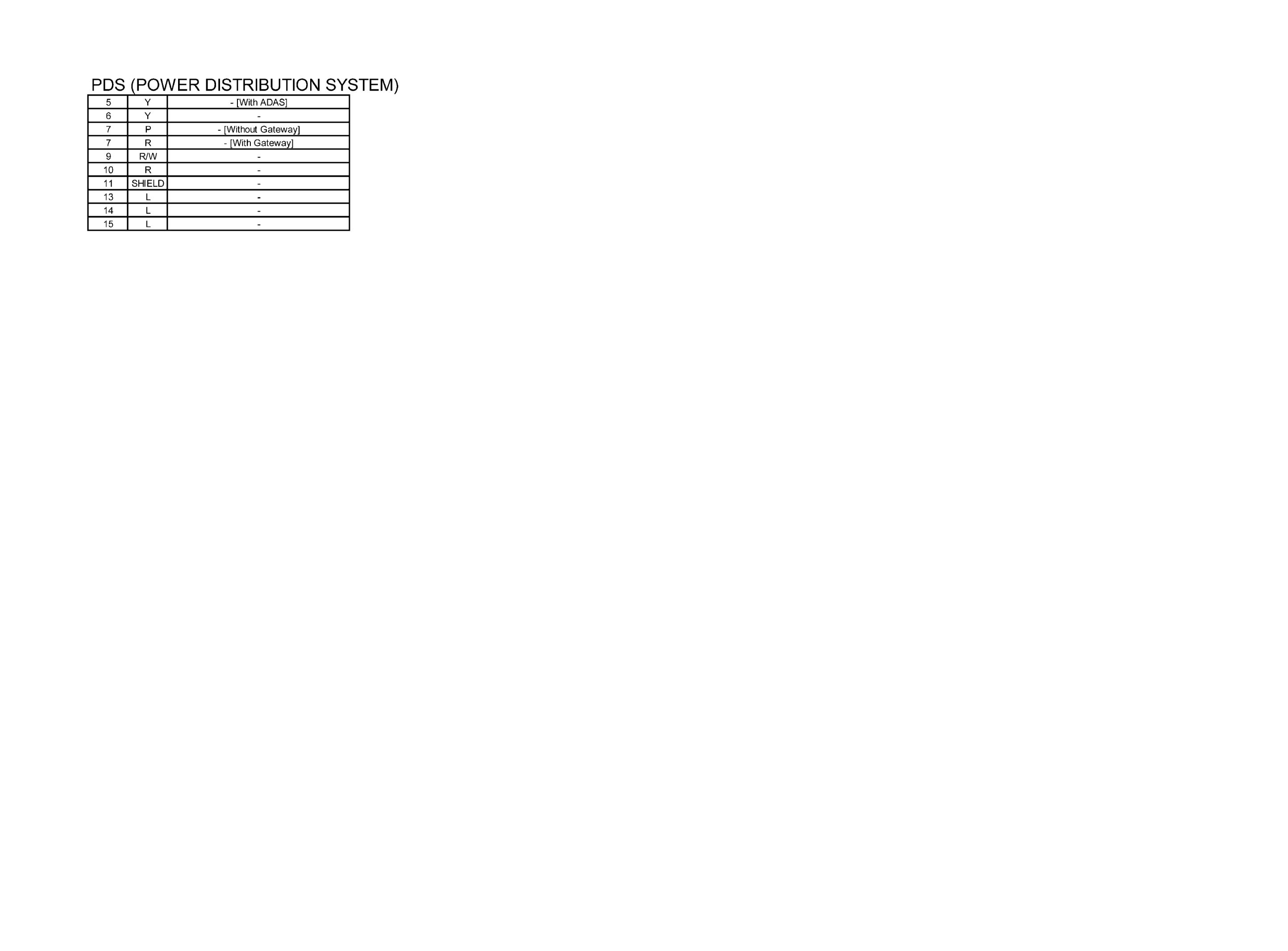

Fig 6: Power Distribution System Connectors (6 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.
