System Diagram: Notes

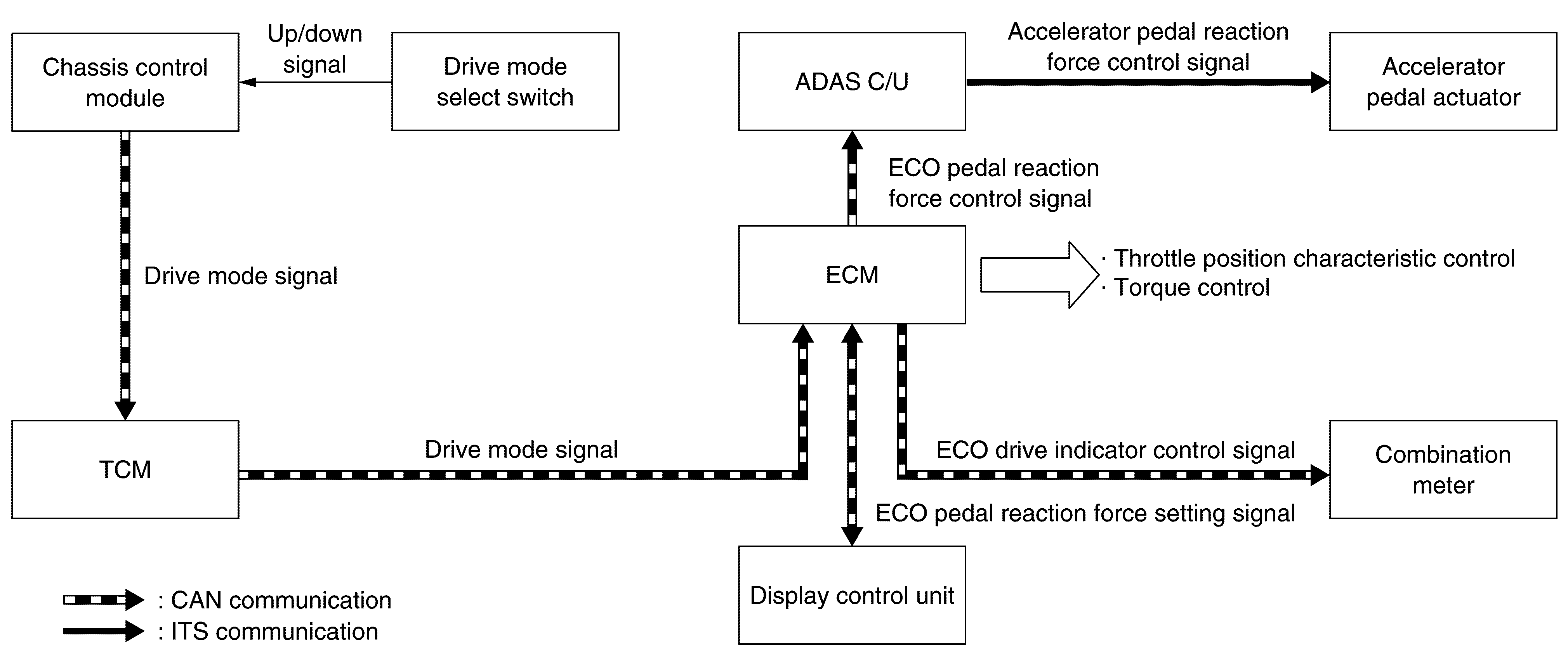

Fig 1: Infiniti Drive Mode Selector System Diagram
G09159969Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
  • This article provides descriptions only about the control by ECM.

    For overall control, refer to SYSTEM DESCRIPTION .

  • ECO pedal control is only for vehicles with Distance Control Assist.
