Steering Control System (Direct Adaptive Steering - Introduction) (Exc Hybrid)
›
System Description
›
System
›
Direct Adaptive Steering
›
Circuit Diagram
Circuit Diagram

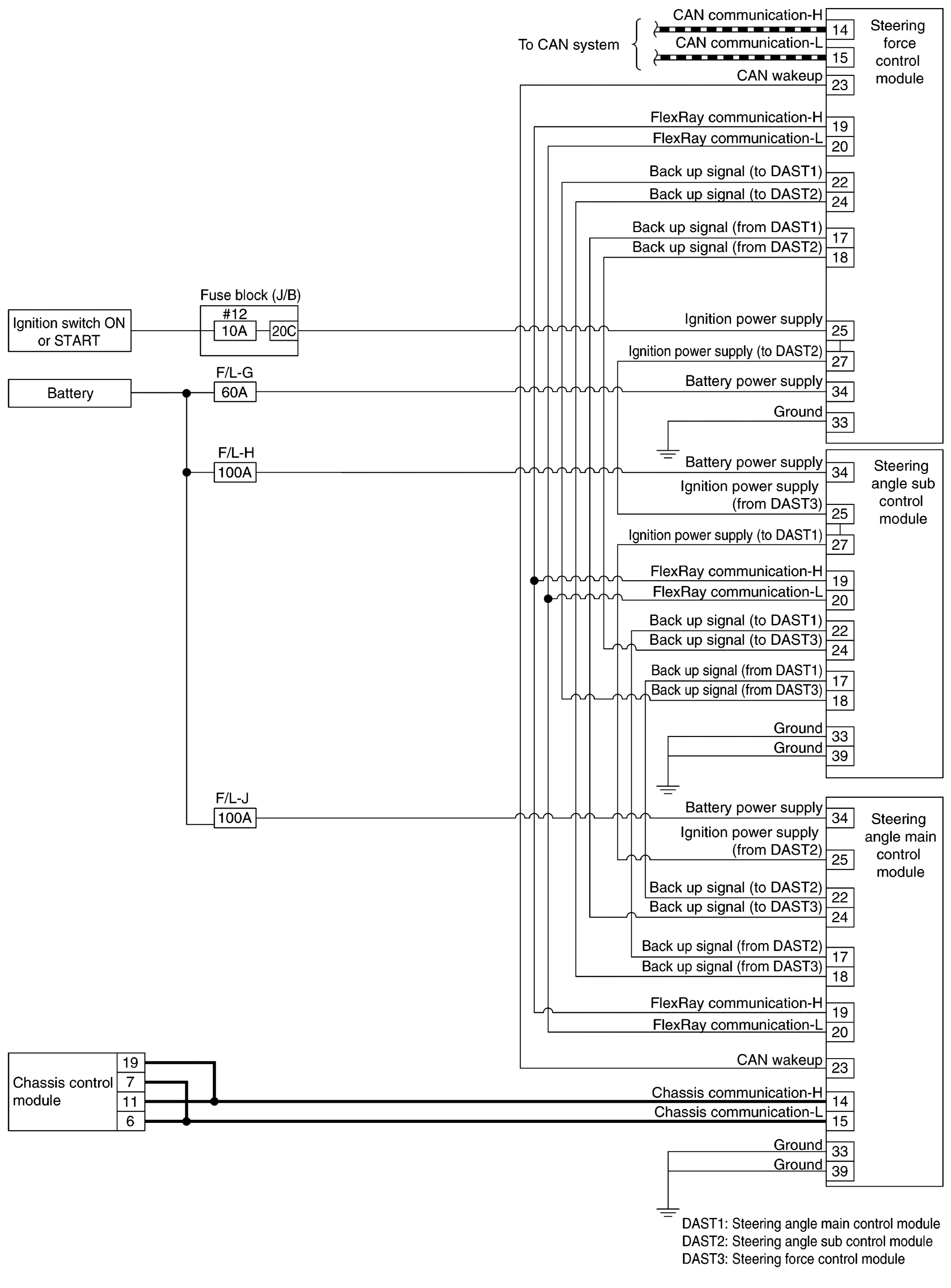

Fig 1: Direct Adaptive Steering Circuit Diagram (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

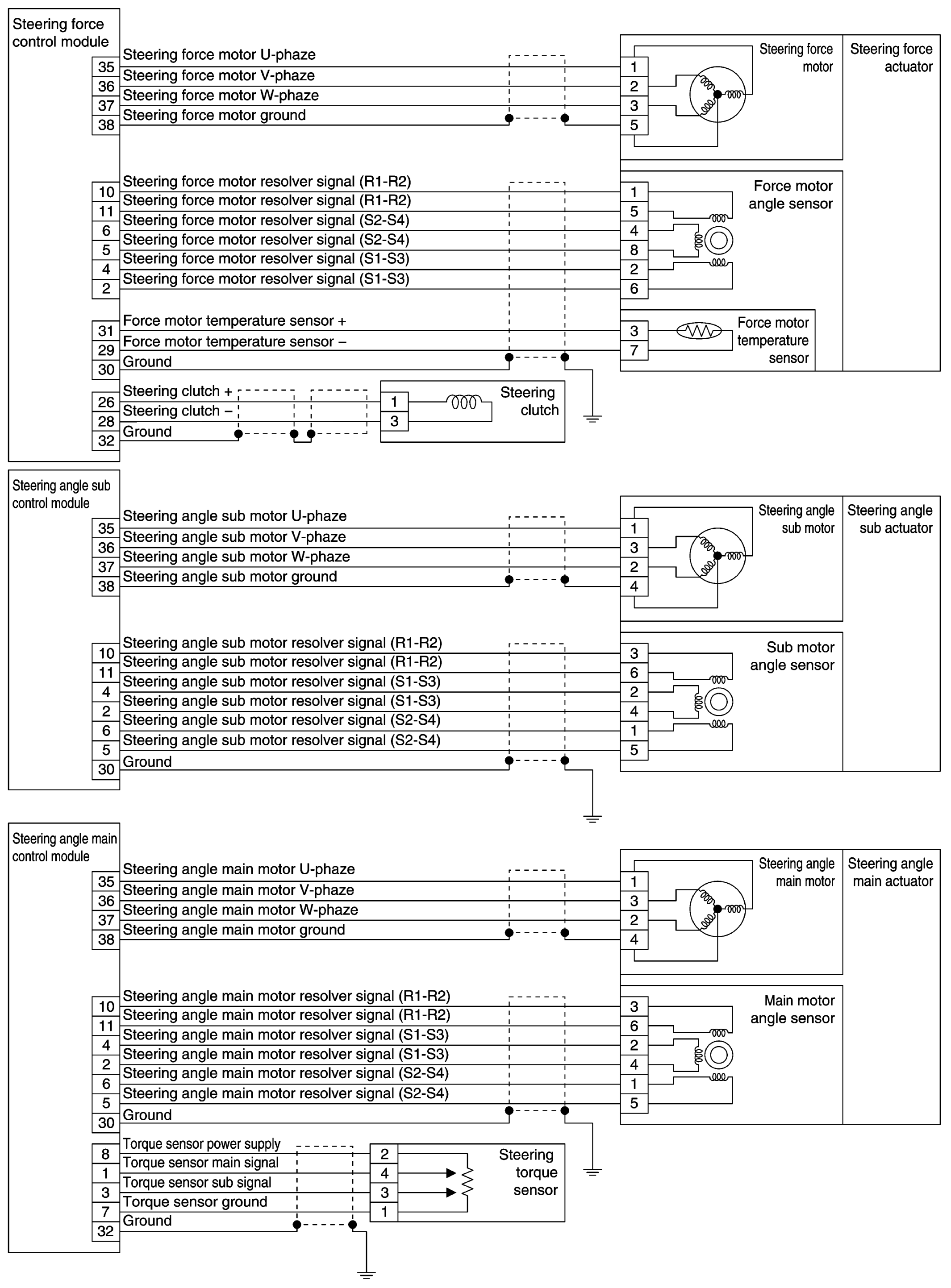

Fig 2: Direct Adaptive Steering Circuit Diagram (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

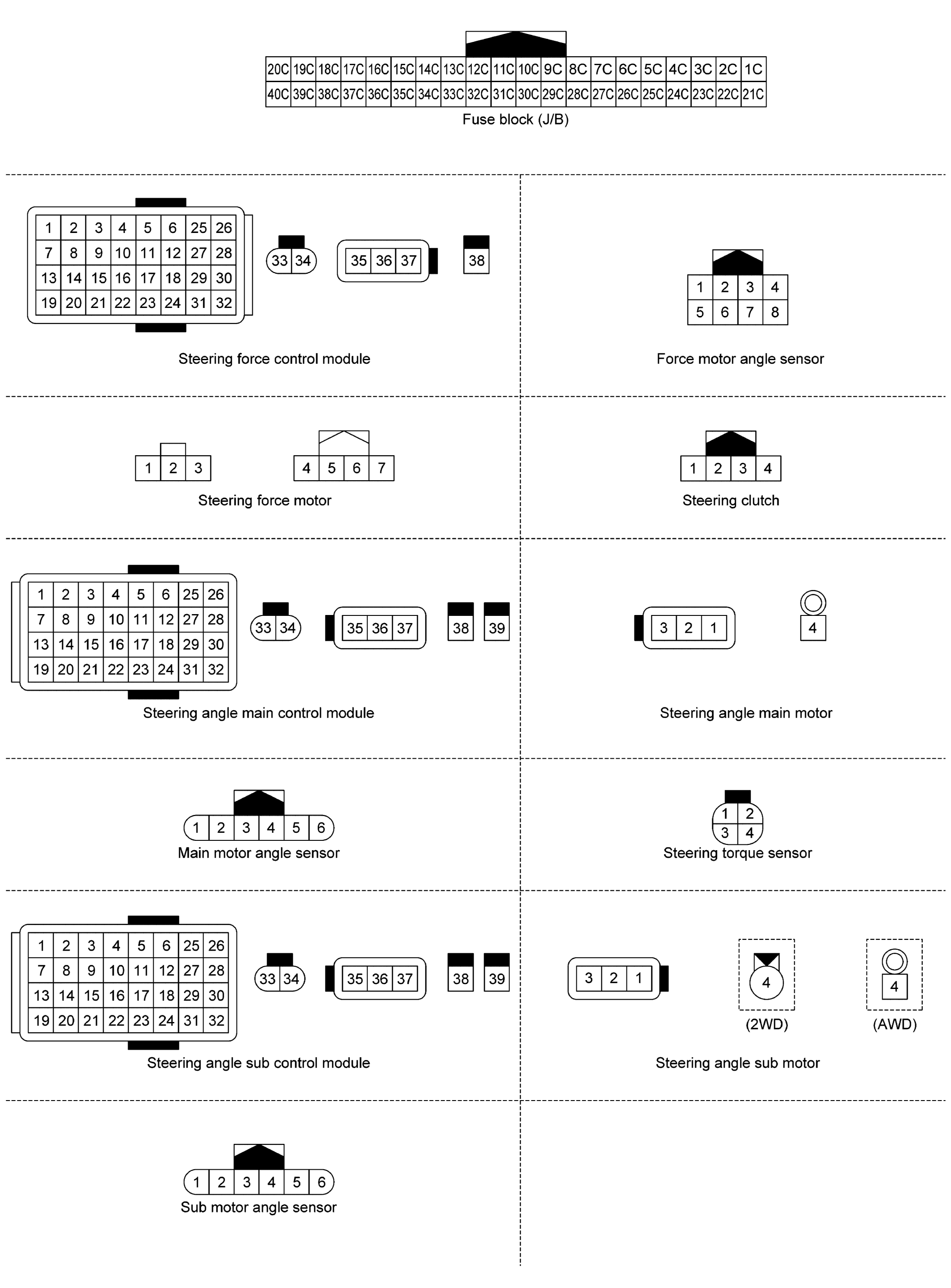

Fig 3: Direct Adaptive Steering Connector Views
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
