Q50 Base, AWD
›
Repair and Diagnosis
›
Steering
›
Steering Control Systems
›
Steering Control System (Vehicle Speed Sensitive P/S) (Exc Hybrid)
›
System Description
›
System
›
Electronically Controlled Power Steering System
›
Circuit Diagram
Circuit Diagram

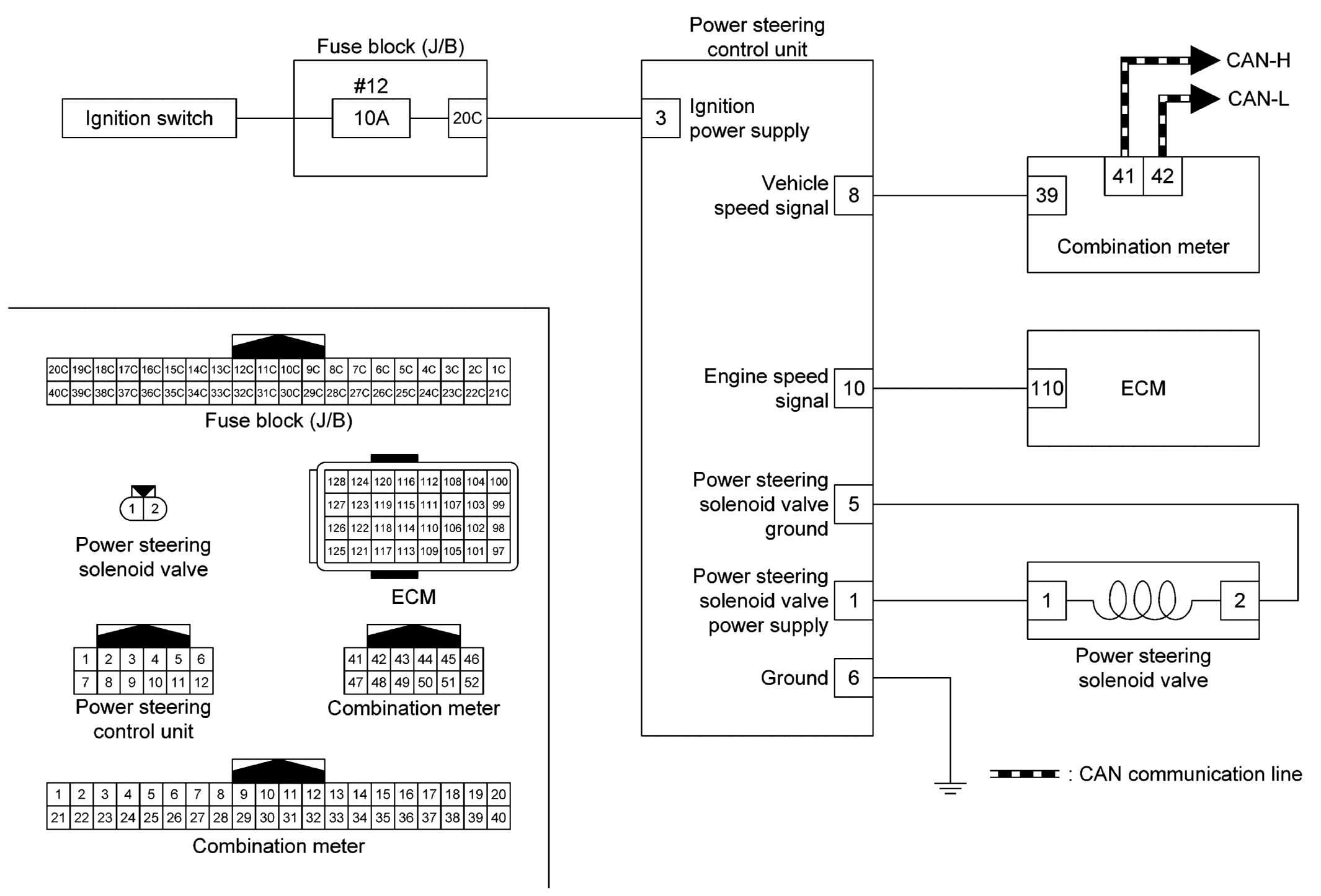

Fig 1: Power Steering Control Unit Circuit Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
