Power Window Control System (Hybrid)
›
System Description
›
System
›
Circuit Diagram
Circuit Diagram

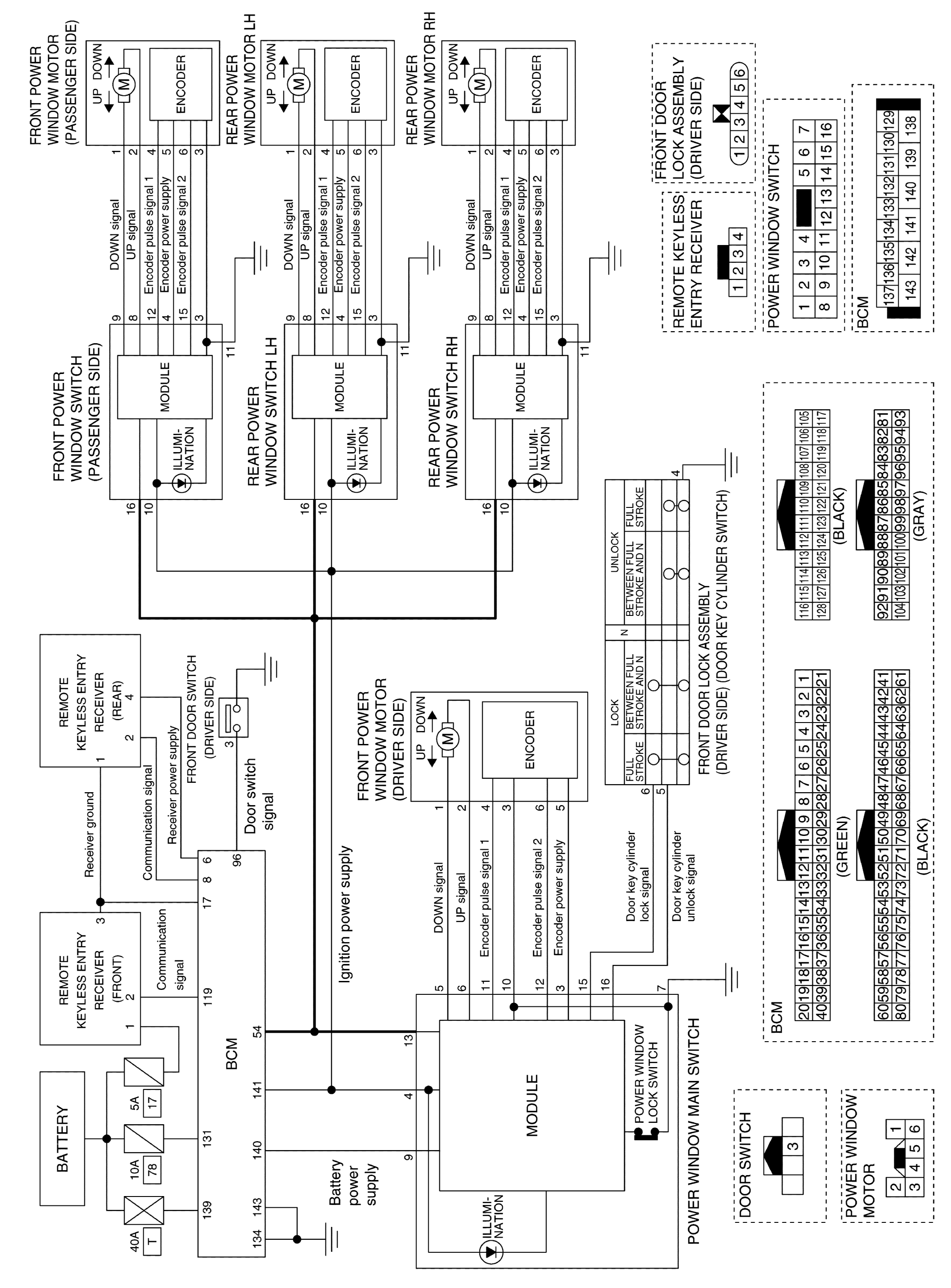

Fig 1: Power Window Control Circuit Wiring Diagram With Connector End Views
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
