Engine Control System: Wiring Diagram

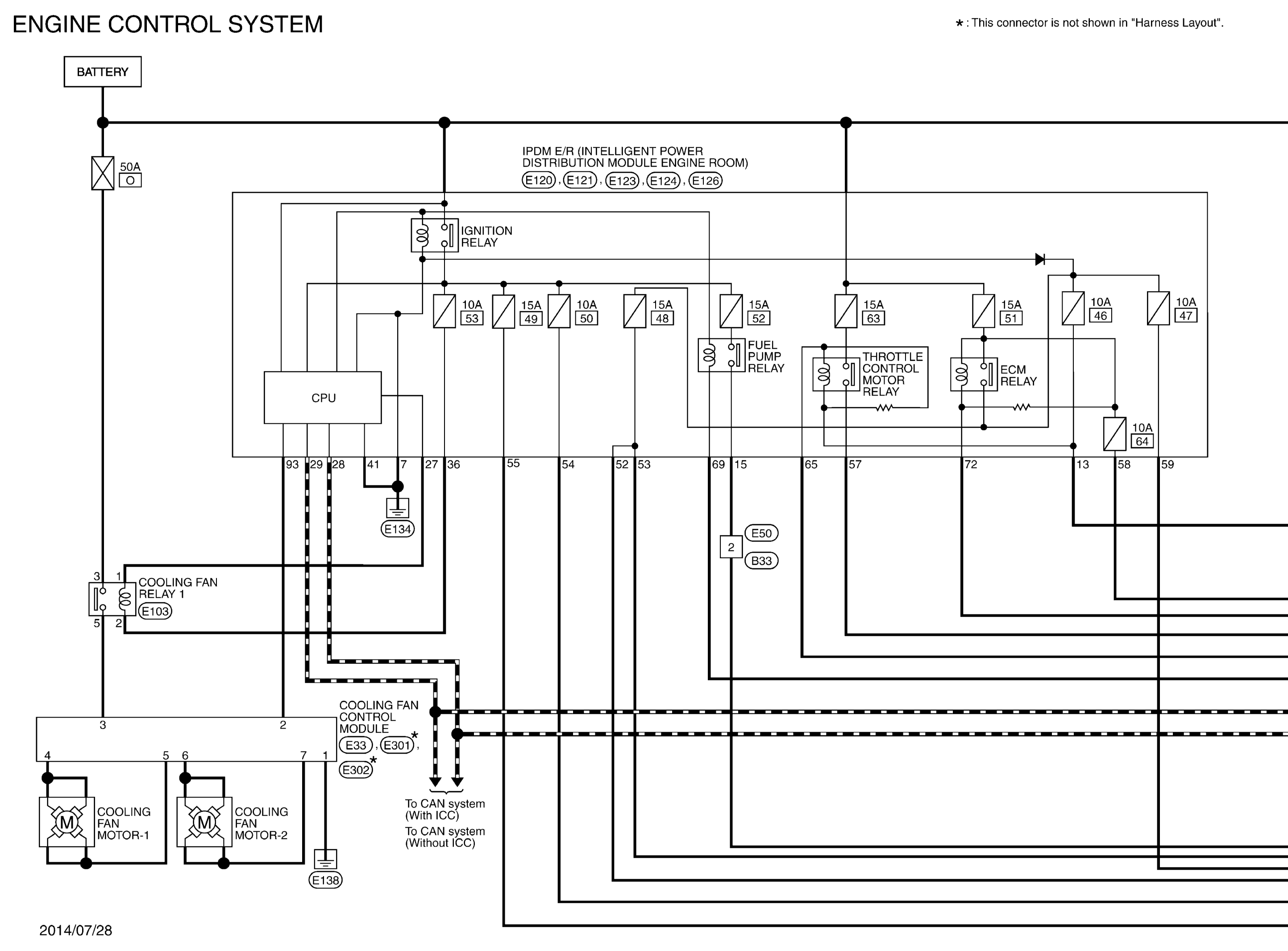

Fig 1: Engine Control System Wiring Diagram (1 Of 5)

GNSJRBWD0253GB-253

Courtesy of NISSAN NORTH AMERICA, INC.

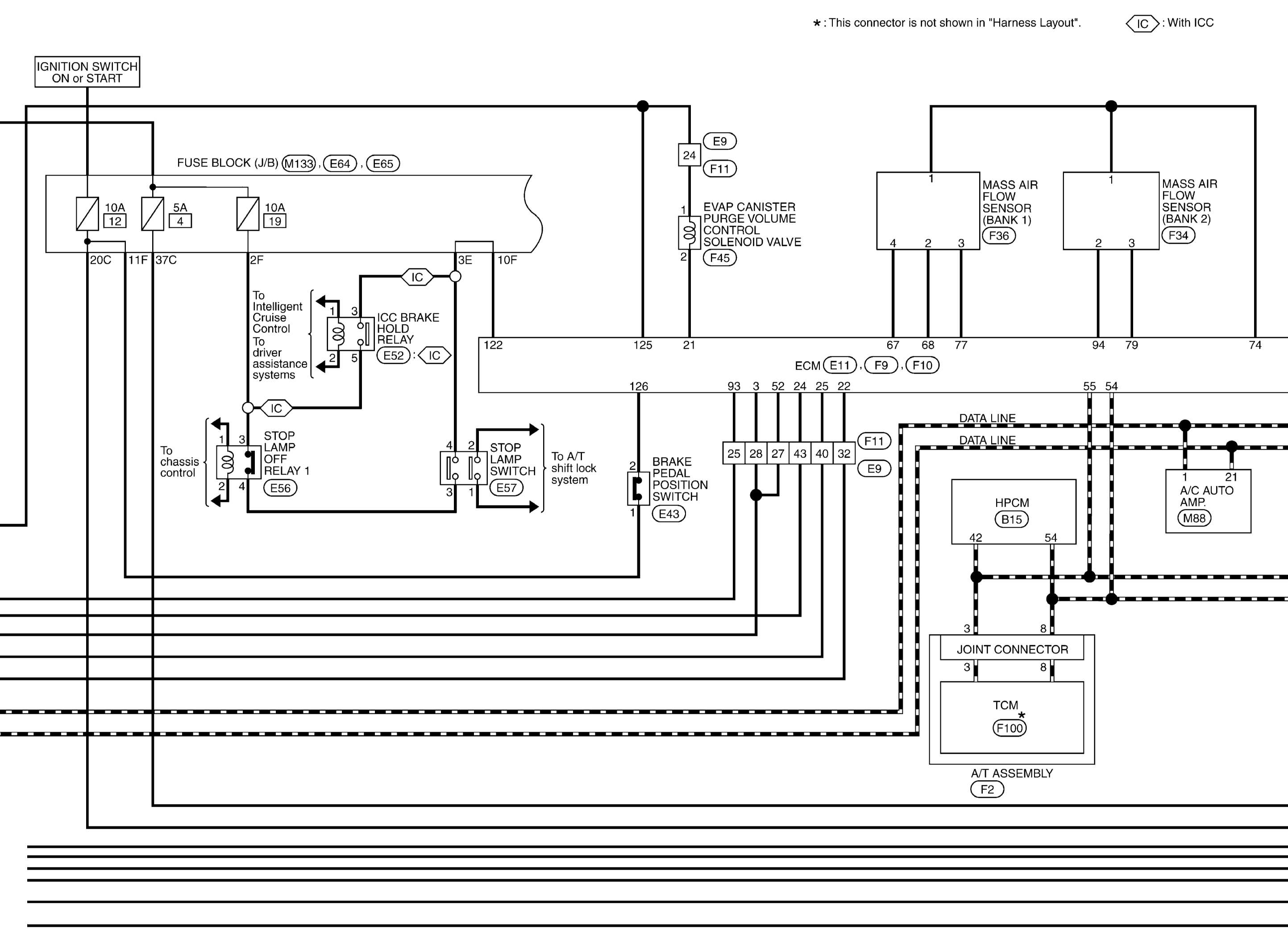

Fig 2: Engine Control System Wiring Diagram (2 Of 5)

GNSJRBWD0254GB-254

Courtesy of NISSAN NORTH AMERICA, INC.

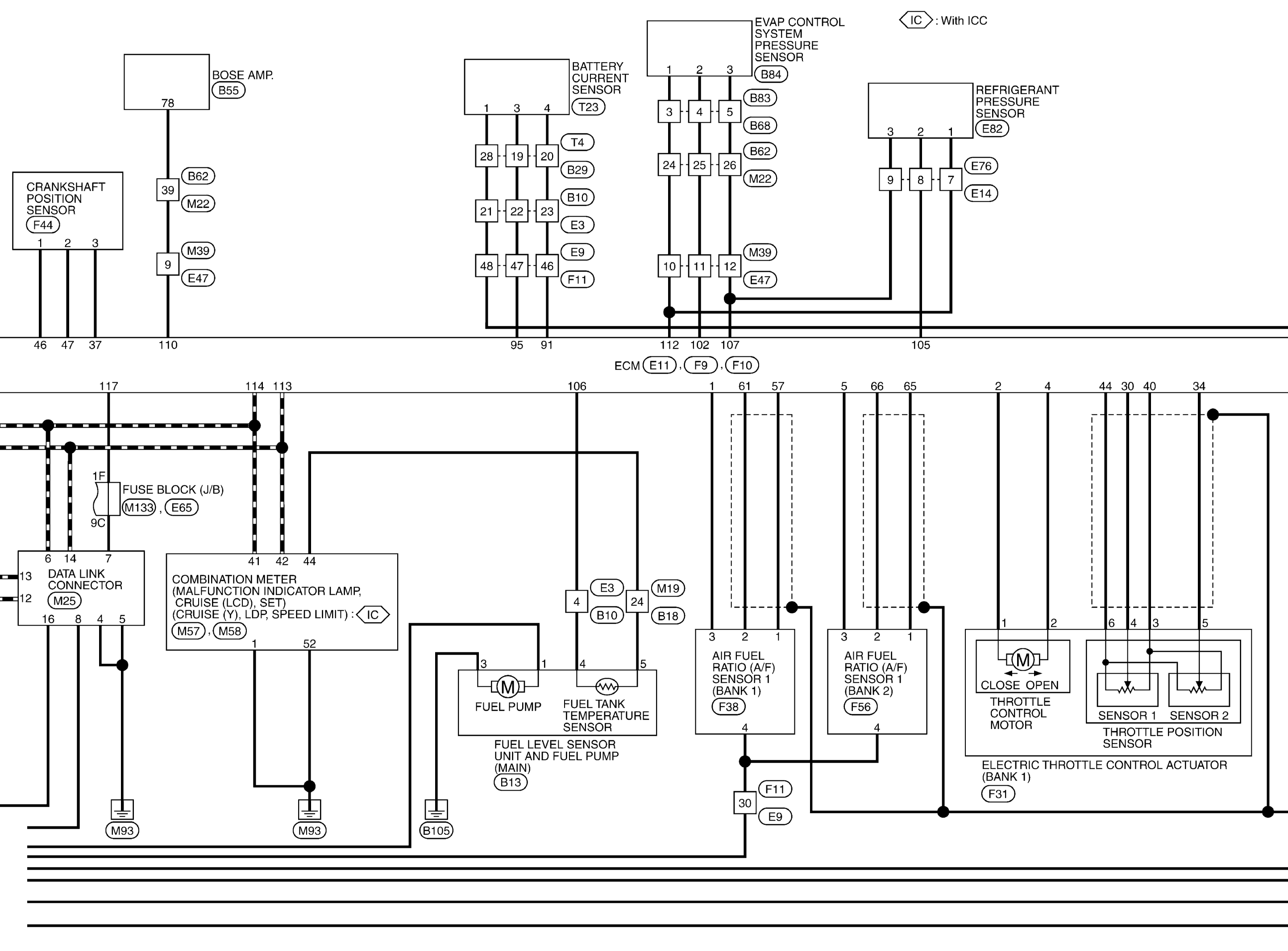

Fig 3: Engine Control System Wiring Diagram (3 Of 5)

GNSJRBWD0255GB-255

Courtesy of NISSAN NORTH AMERICA, INC.

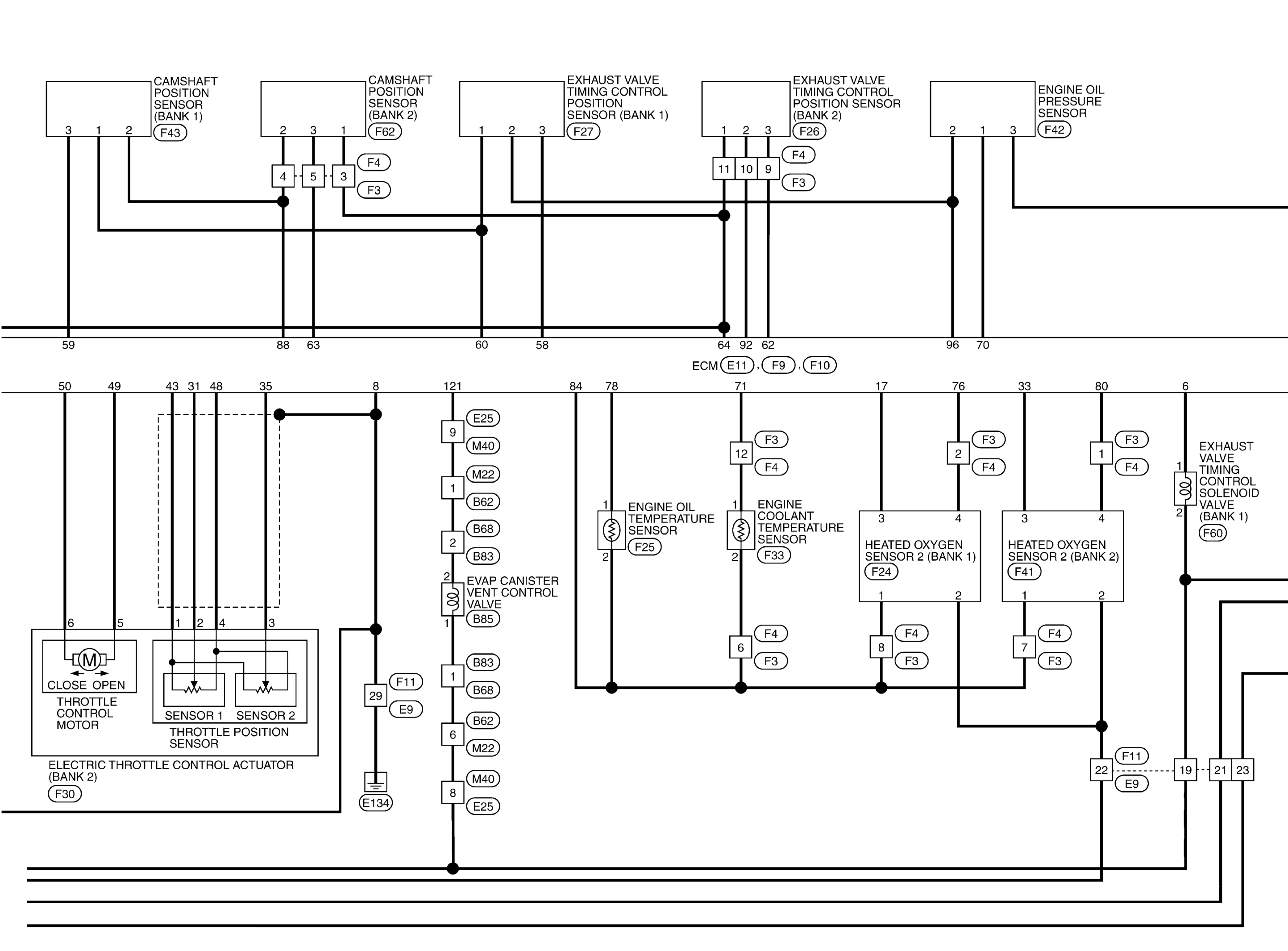

Fig 4: Engine Control System Wiring Diagram (4 Of 5)

GNSJRBWD0256GB-256

Courtesy of NISSAN NORTH AMERICA, INC.

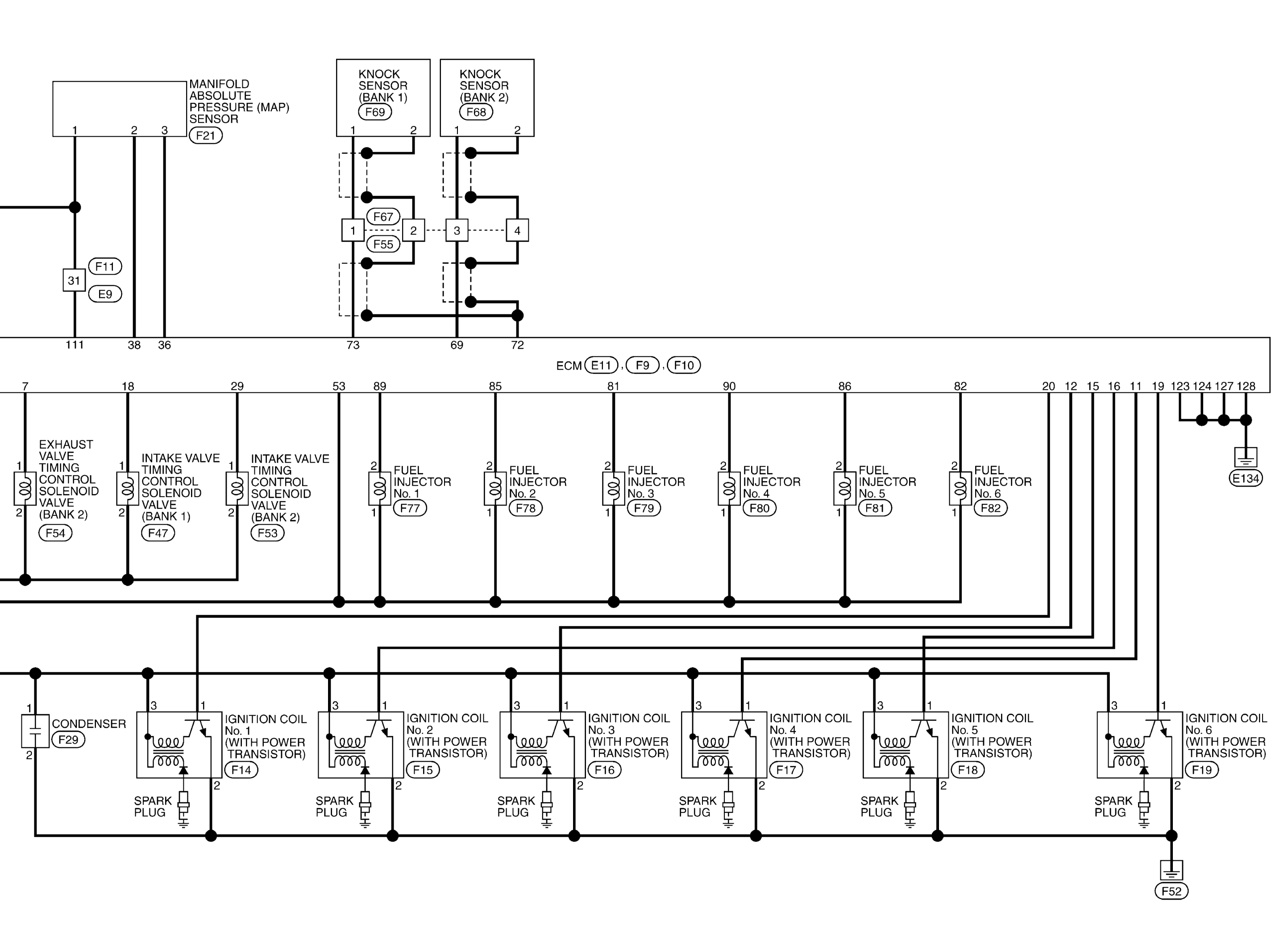

Fig 5: Engine Control System Wiring Diagram (5 Of 5)

GNSJRBWD0257GB-257

Courtesy of NISSAN NORTH AMERICA, INC.

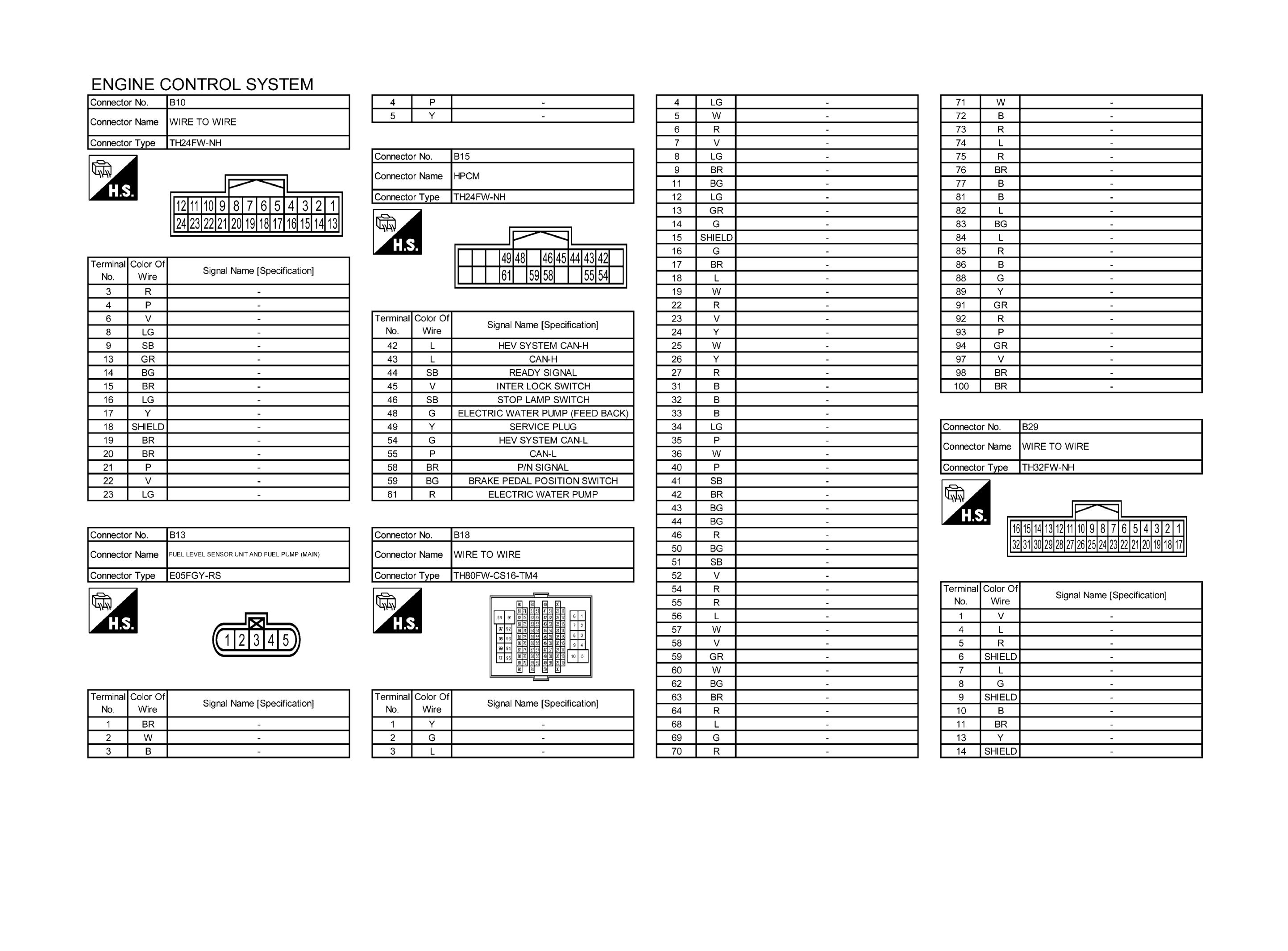

Fig 6: Engine Control System Connector End Views And Pin-Outs (1 Of 16)

GNSJRBWD0258GB-258

Courtesy of NISSAN NORTH AMERICA, INC.

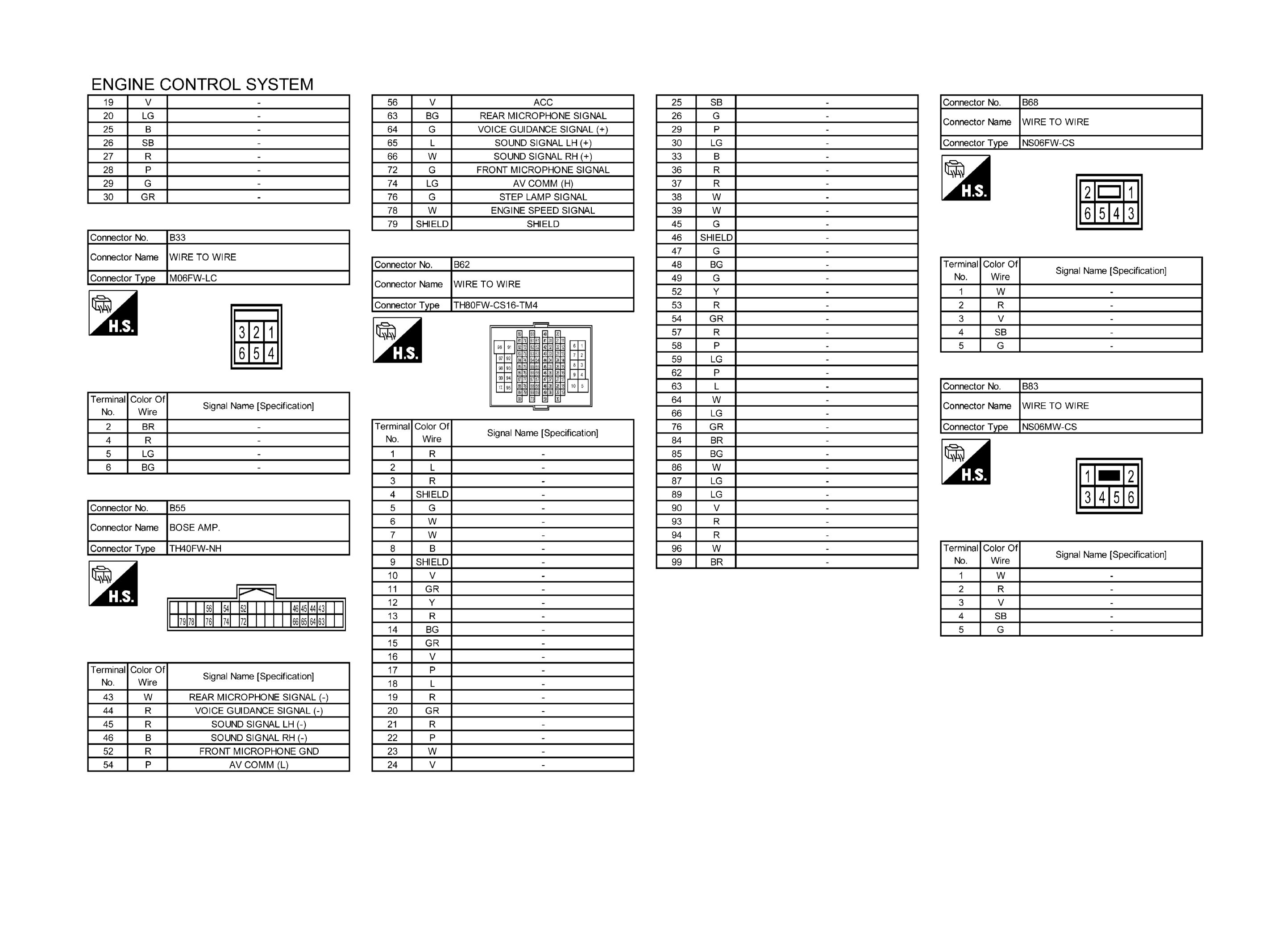

Fig 7: Engine Control System Connector End Views And Pin-Outs (2 Of 16)

GNSJRBWD0259GB-259

Courtesy of NISSAN NORTH AMERICA, INC.

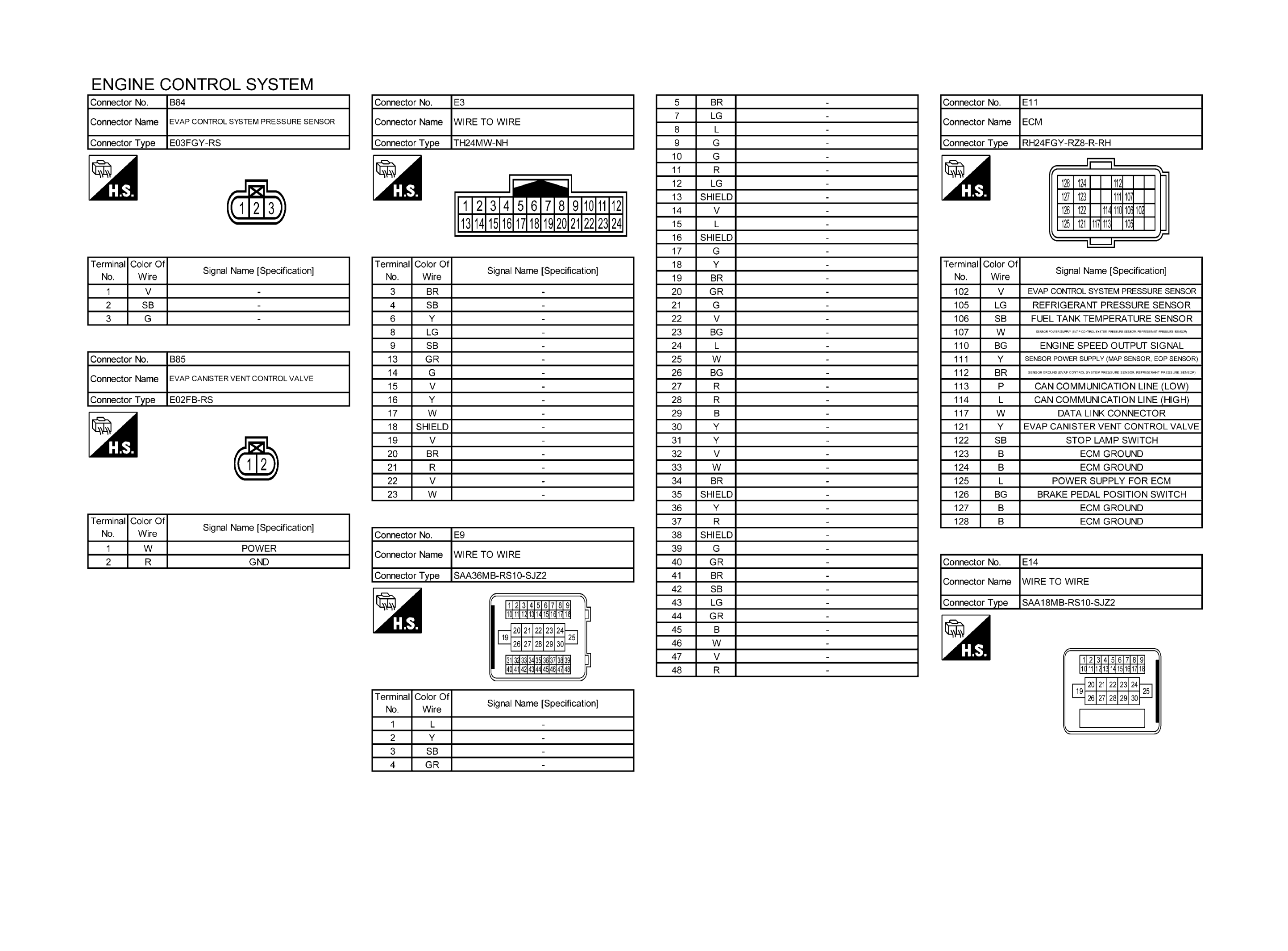

Fig 8: Engine Control System Connector End Views And Pin-Outs (3 Of 16)

GNSJRBWD0260GB-260

Courtesy of NISSAN NORTH AMERICA, INC.

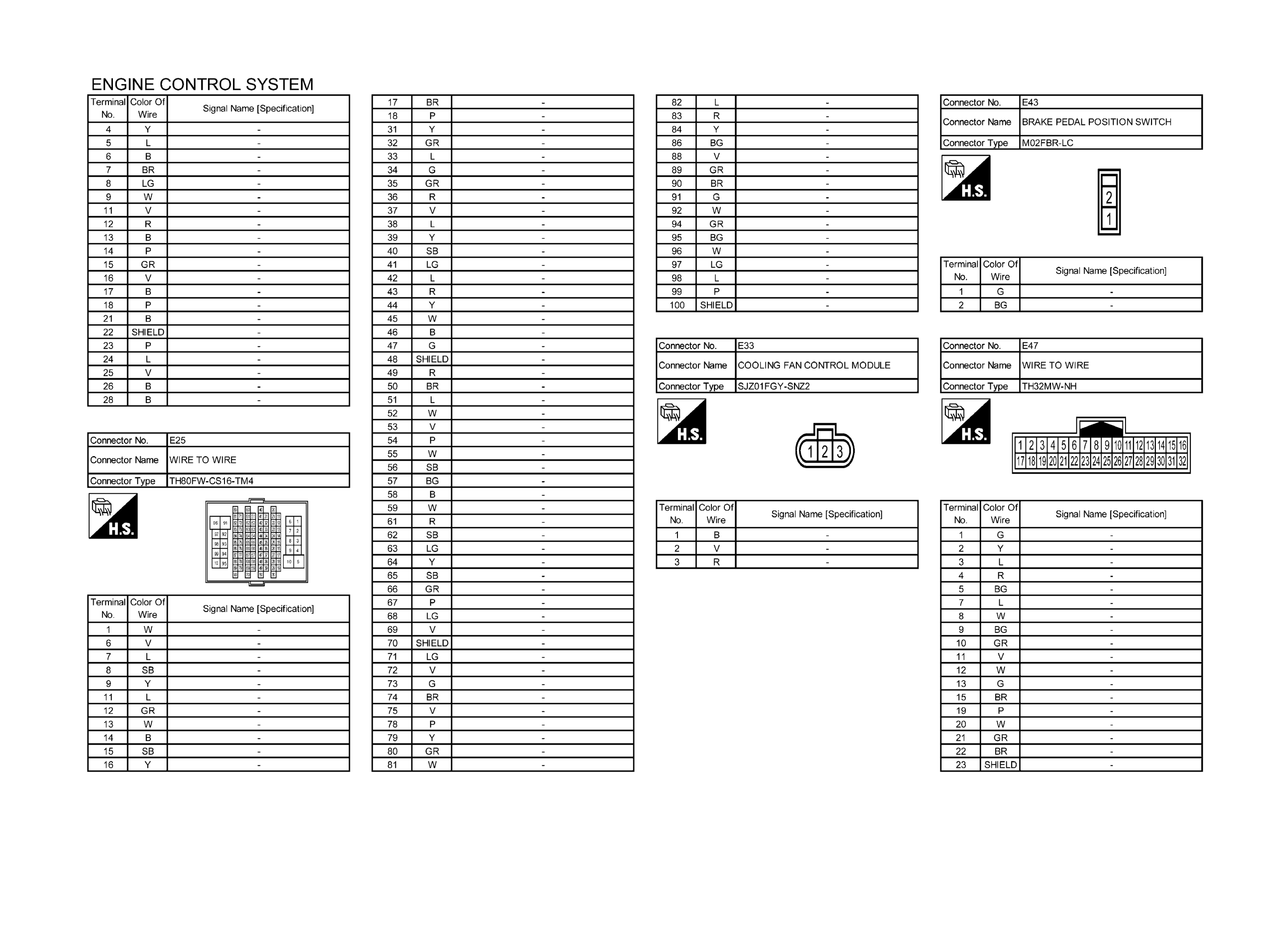

Fig 9: Engine Control System Connector End Views And Pin-Outs (4 Of 16)

GNSJRBWD0261GB-261

Courtesy of NISSAN NORTH AMERICA, INC.

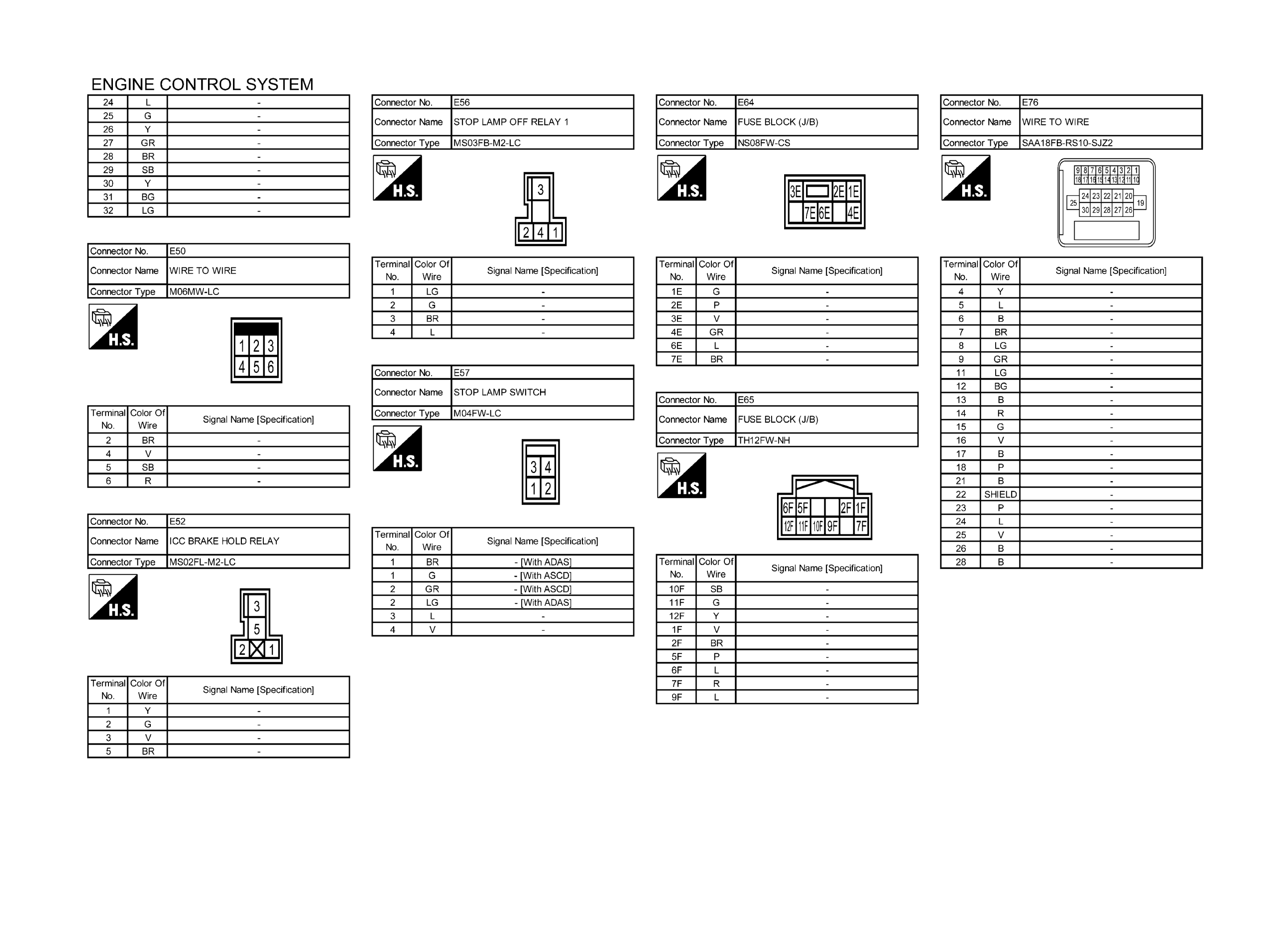

Fig 10: Engine Control System Connector End Views And Pin-Outs (5 Of 16)

GNSJRBWD0262GB-262

Courtesy of NISSAN NORTH AMERICA, INC.

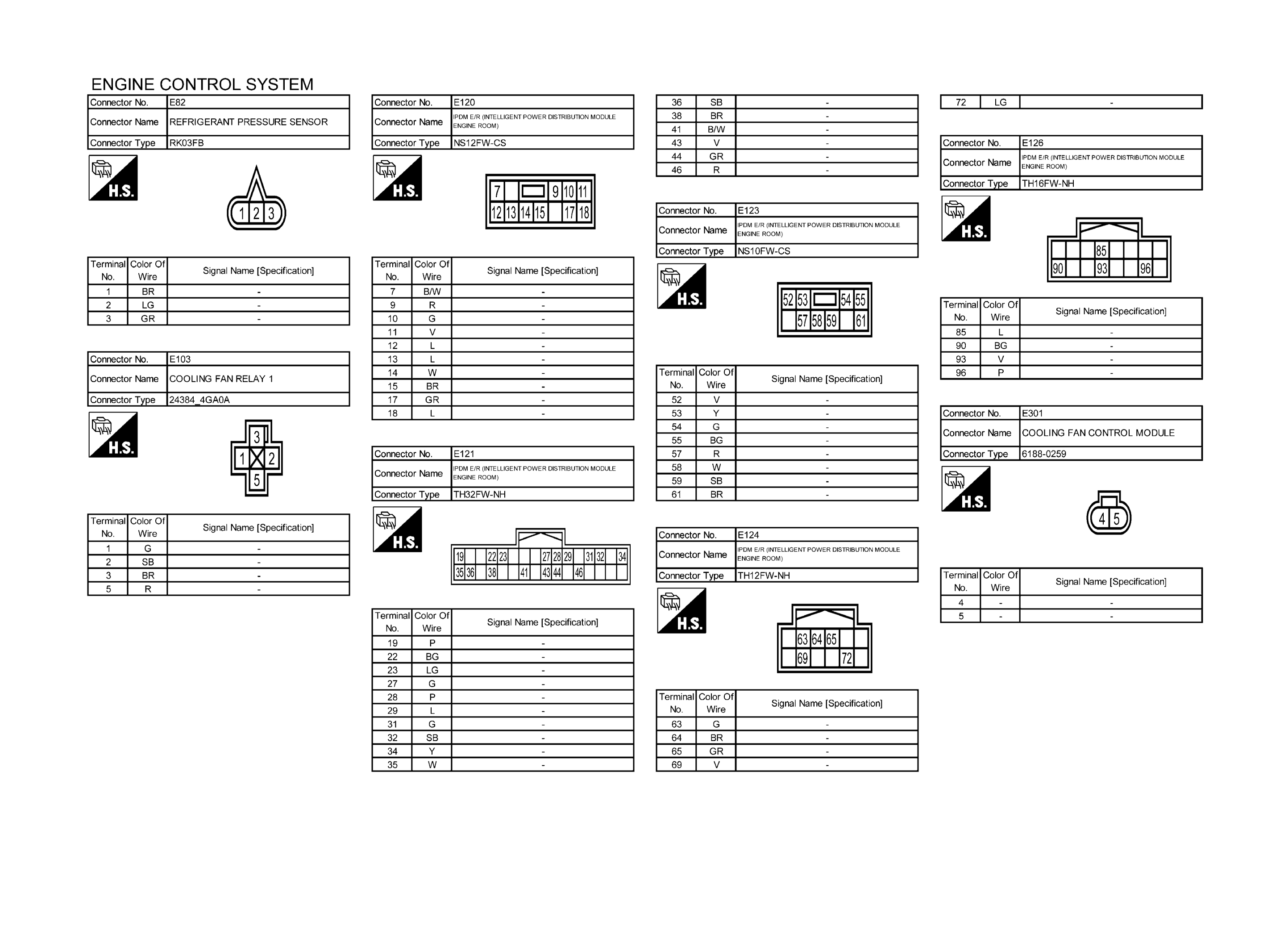

Fig 11: Engine Control System Connector End Views And Pin-Outs (6 Of 16)

GNSJRBWD0263GB-263

Courtesy of NISSAN NORTH AMERICA, INC.

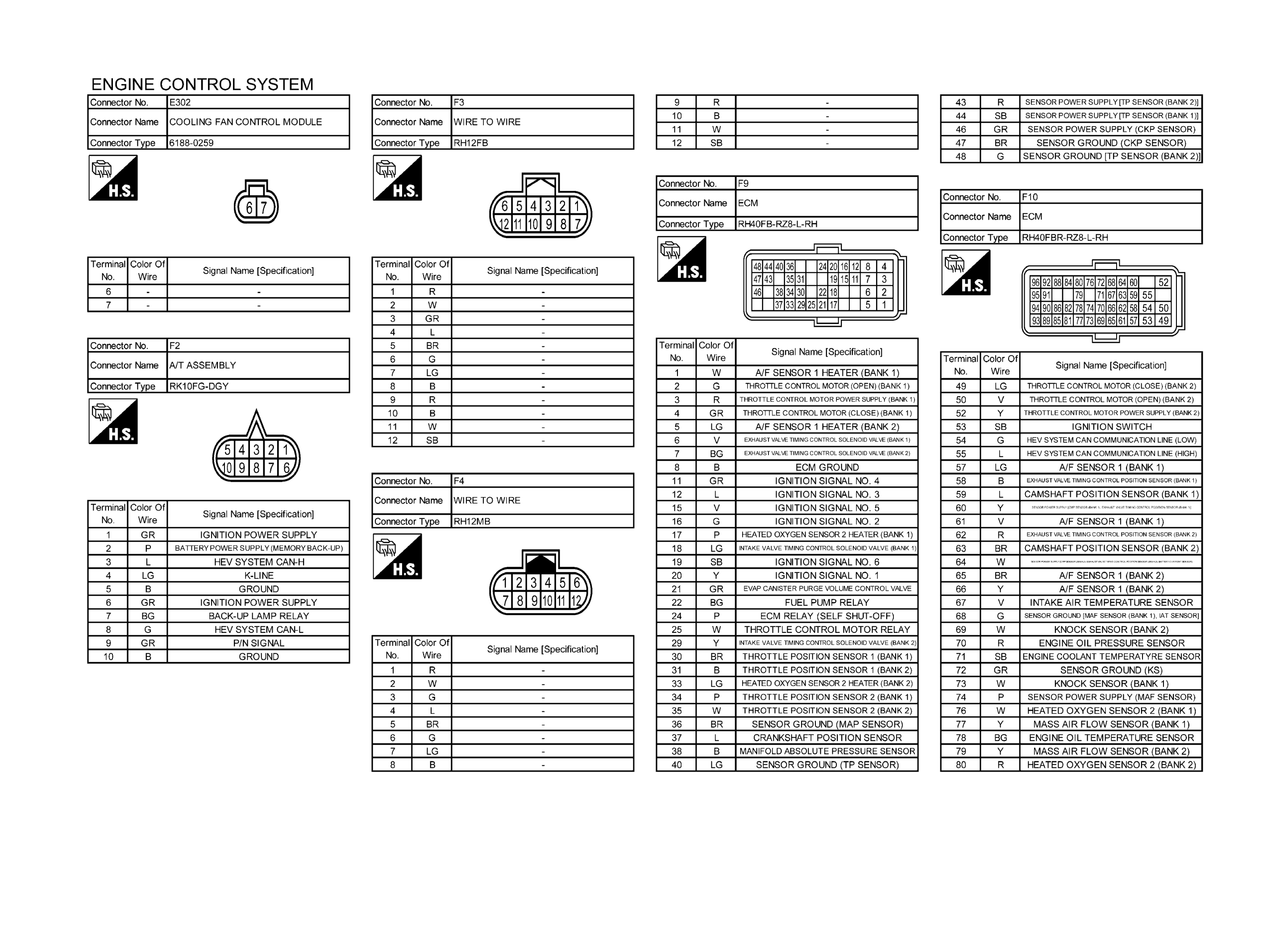

Fig 12: Engine Control System Connector End Views And Pin-Outs (7 Of 16)

GNSJRBWD0264GB-264

Courtesy of NISSAN NORTH AMERICA, INC.

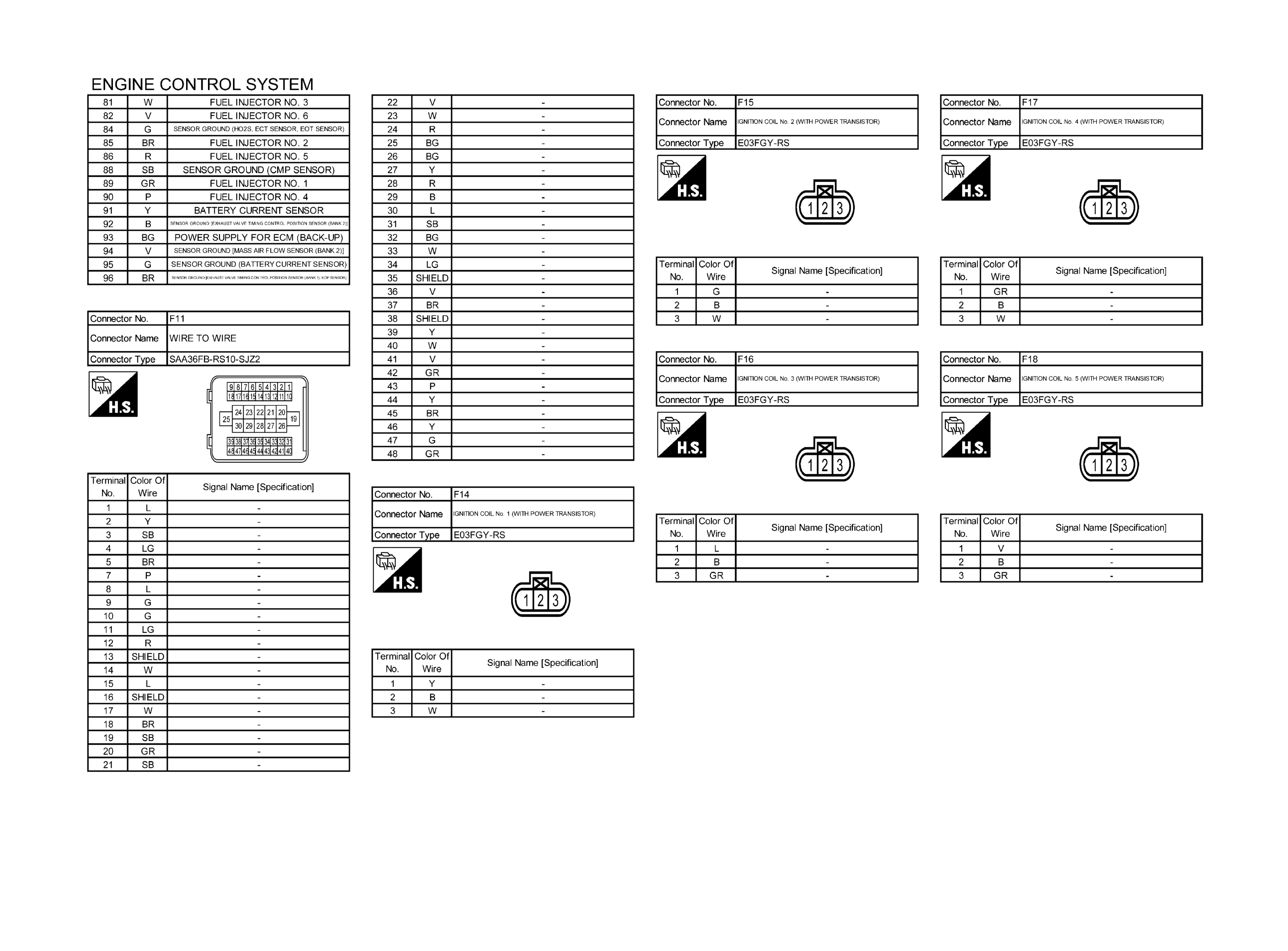

Fig 13: Engine Control System Connector End Views And Pin-Outs (8 Of 16)

GNSJRBWD0265GB-265

Courtesy of NISSAN NORTH AMERICA, INC.

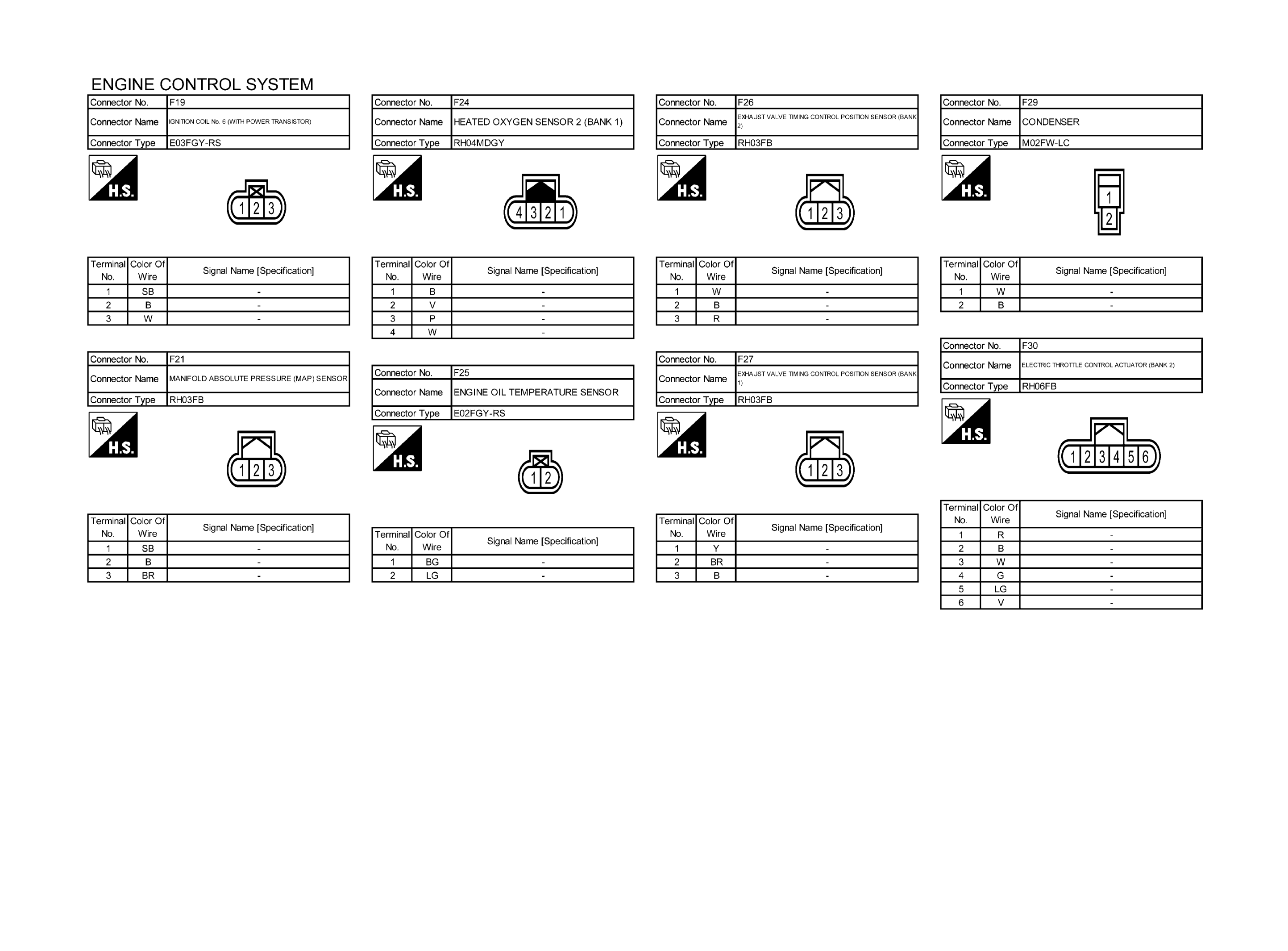

Fig 14: Engine Control System Connector End Views And Pin-Outs (9 Of 16)

GNSJRBWD0266GB-266

Courtesy of NISSAN NORTH AMERICA, INC.

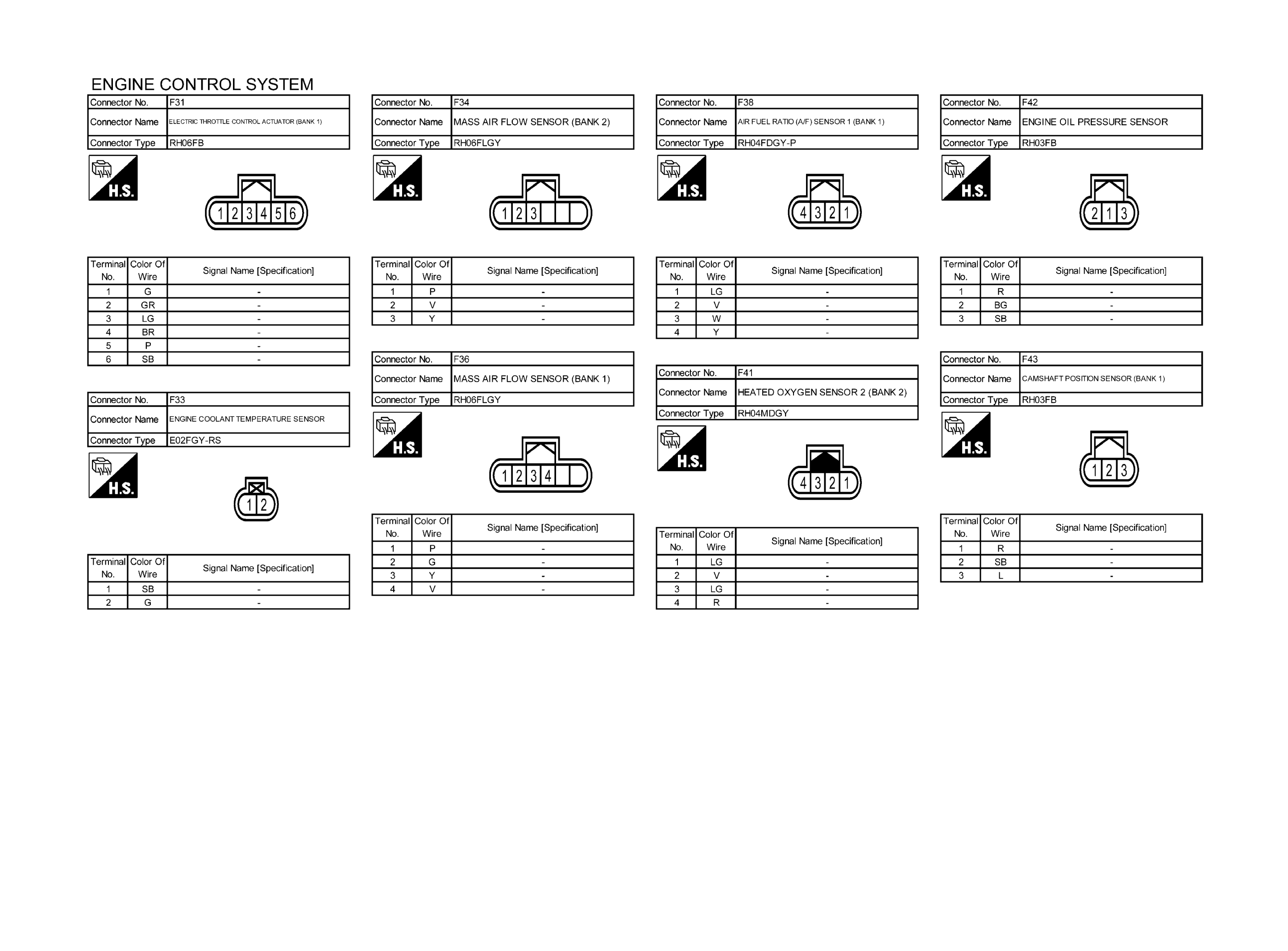

Fig 15: Engine Control System Connector End Views And Pin-Outs (10 Of 16)

GNSJRBWD0267GB-267

Courtesy of NISSAN NORTH AMERICA, INC.

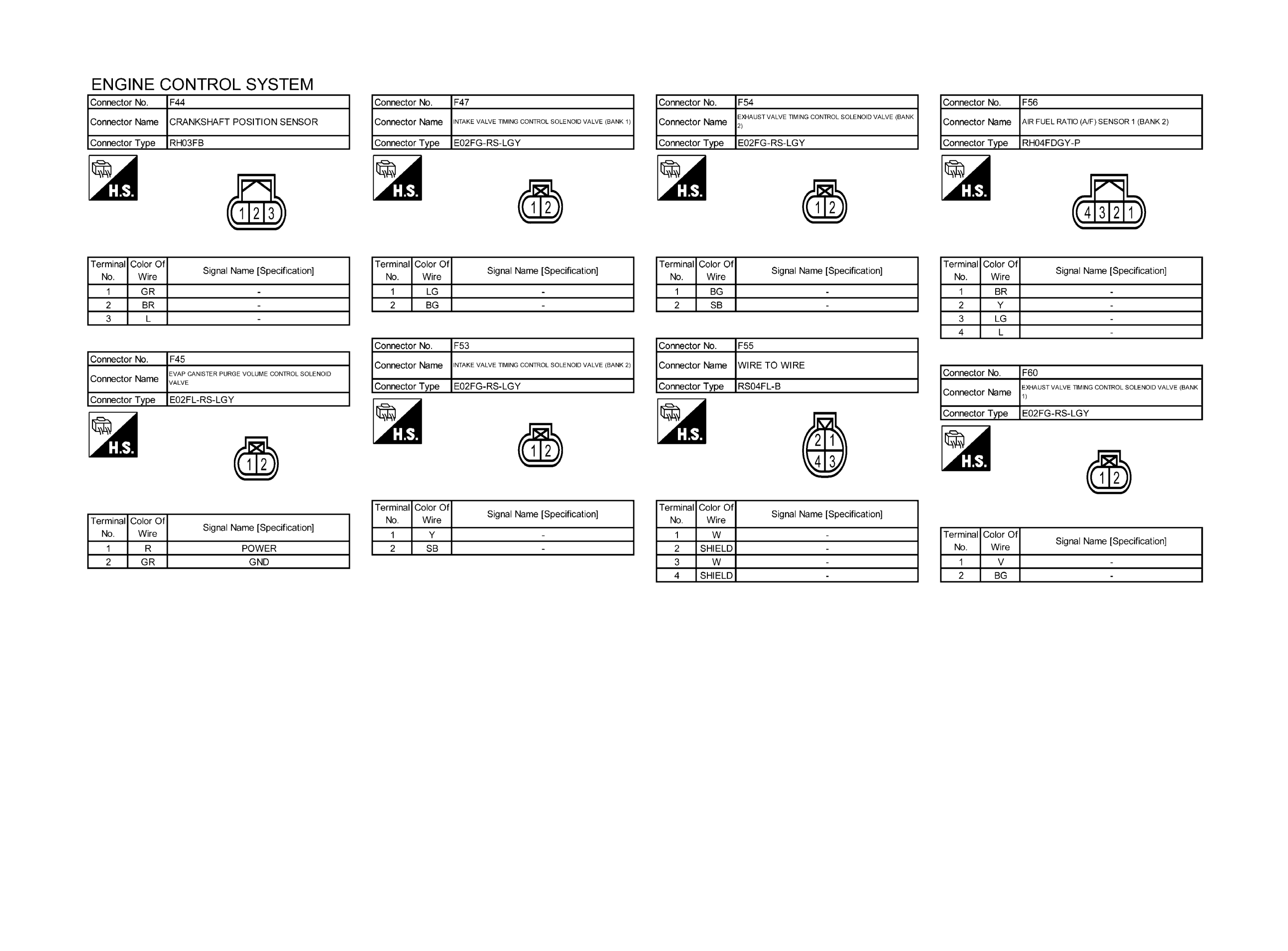

Fig 16: Engine Control System Connector End Views And Pin-Outs (11 Of 16)

GNSJRBWD0268GB-268

Courtesy of NISSAN NORTH AMERICA, INC.

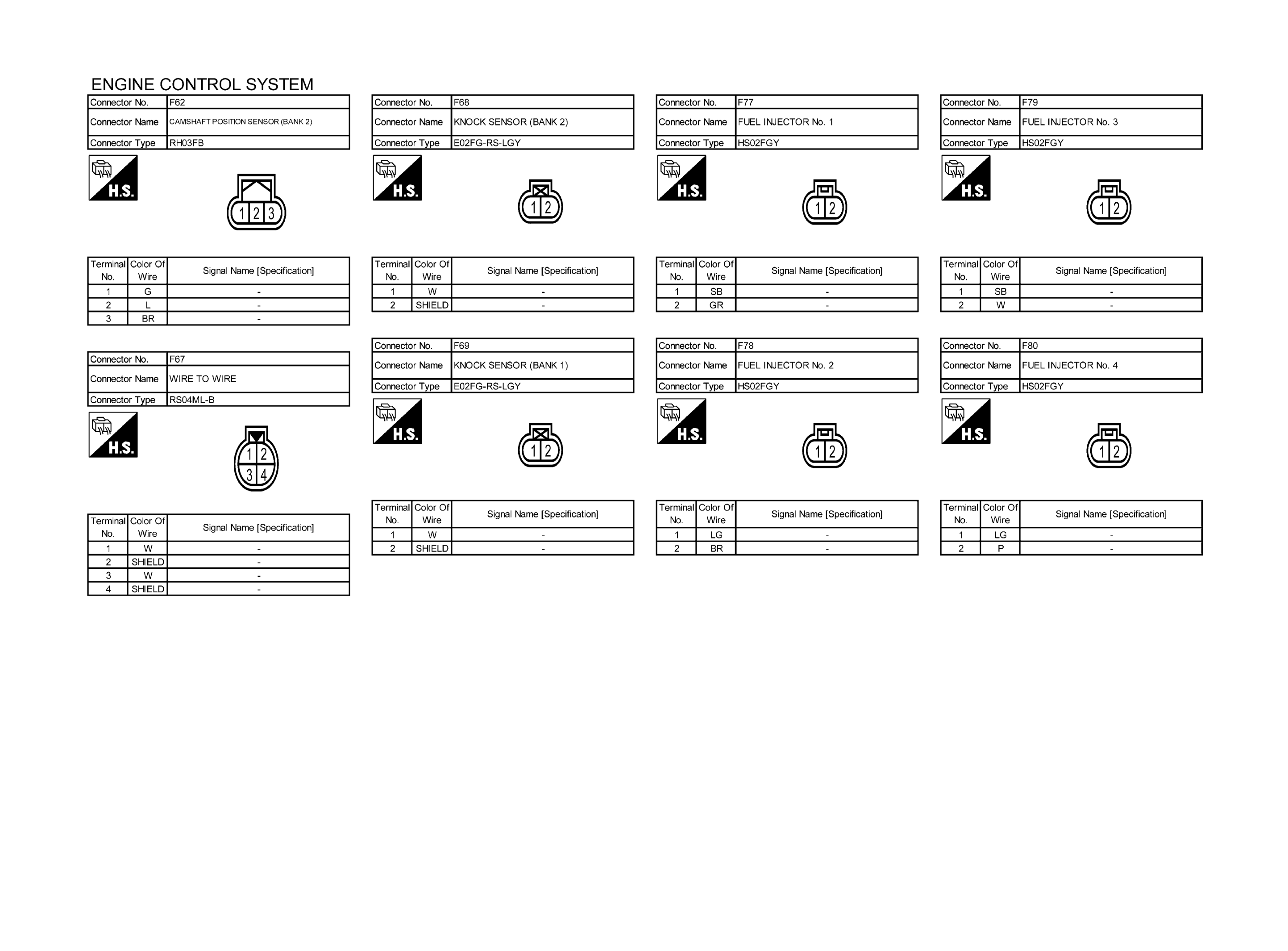

Fig 17: Engine Control System Connector End Views And Pin-Outs (12 Of 16)

GNSJRBWD0269GB-269

Courtesy of NISSAN NORTH AMERICA, INC.

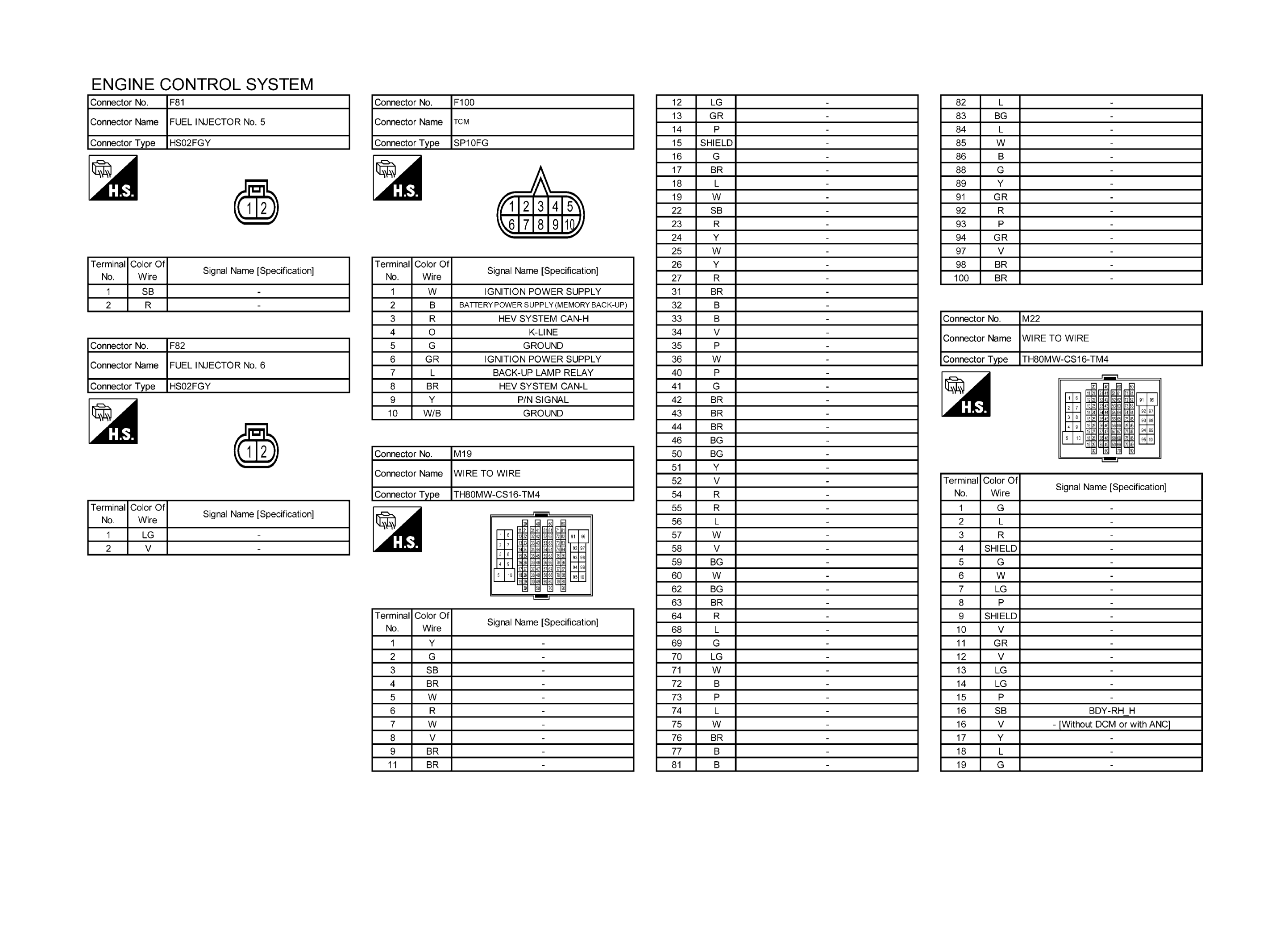

Fig 18: Engine Control System Connector End Views And Pin-Outs (13 Of 16)

GNSJRBWD0270GB-270

Courtesy of NISSAN NORTH AMERICA, INC.

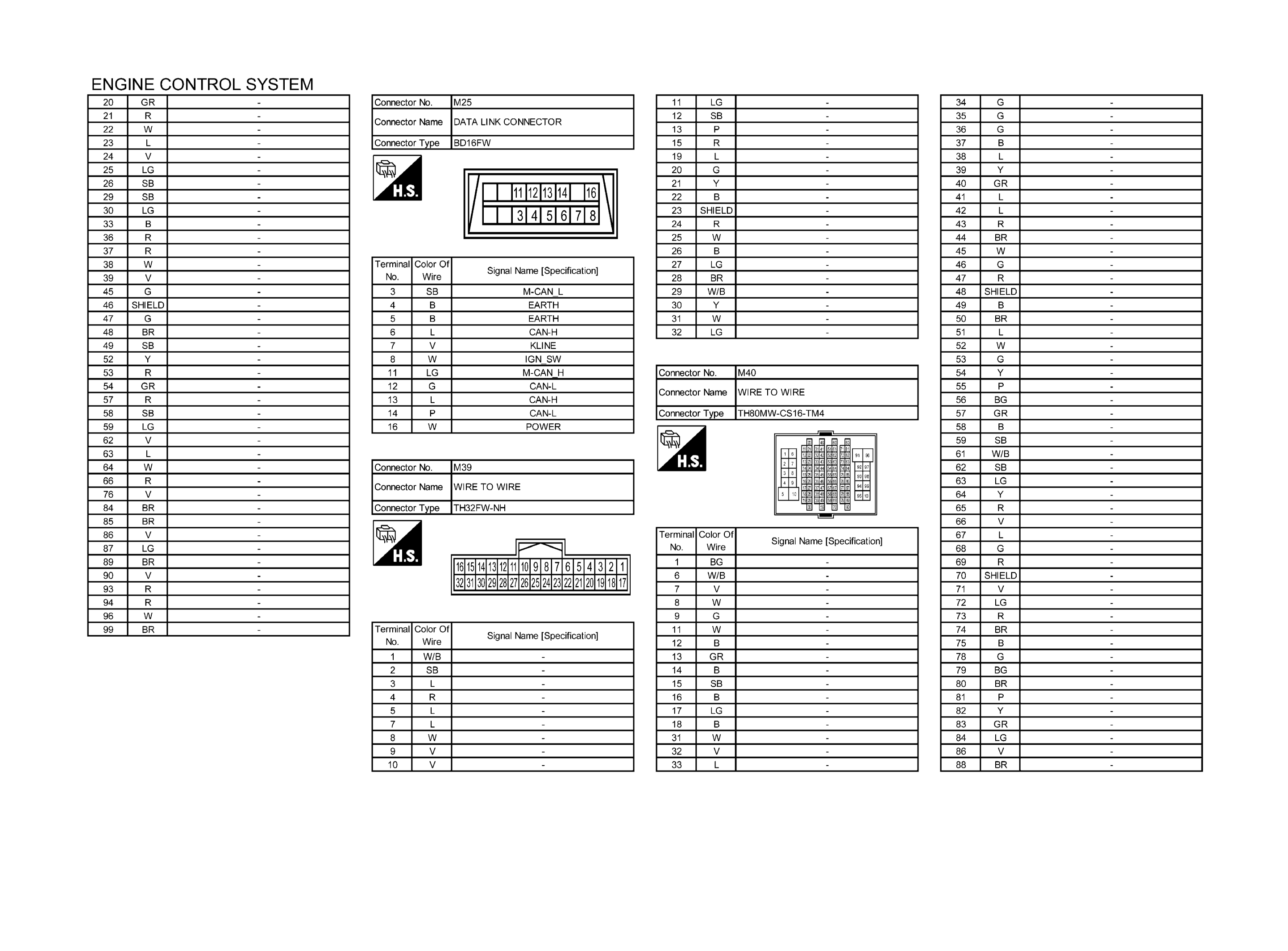

Fig 19: Engine Control System Connector End Views And Pin-Outs (14 Of 16)

GNSJRBWD0271GB-271

Courtesy of NISSAN NORTH AMERICA, INC.

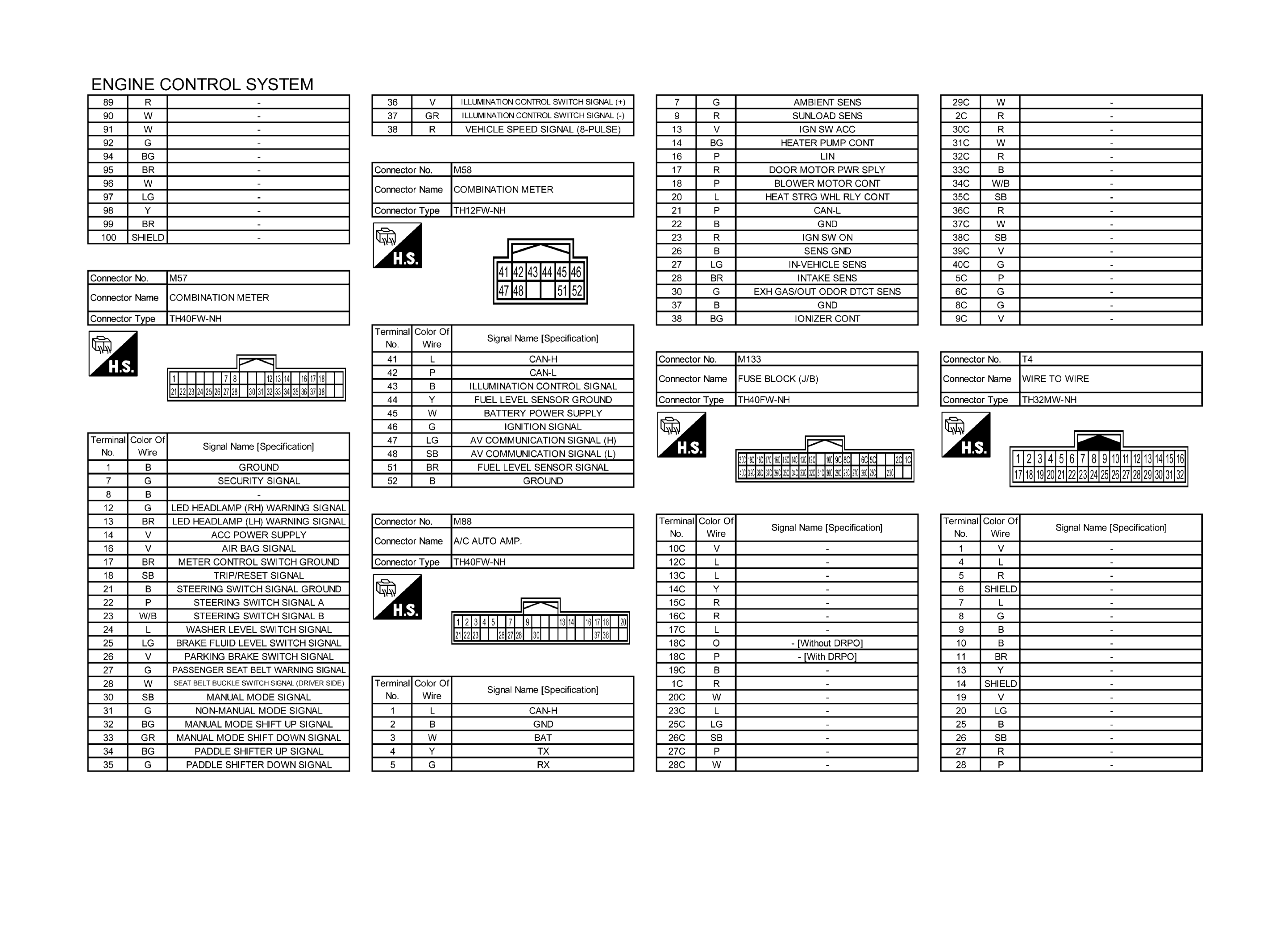

Fig 20: Engine Control System Connector End Views And Pin-Outs (15 Of 16)

GNSJRBWD0272GB-272

Courtesy of NISSAN NORTH AMERICA, INC.

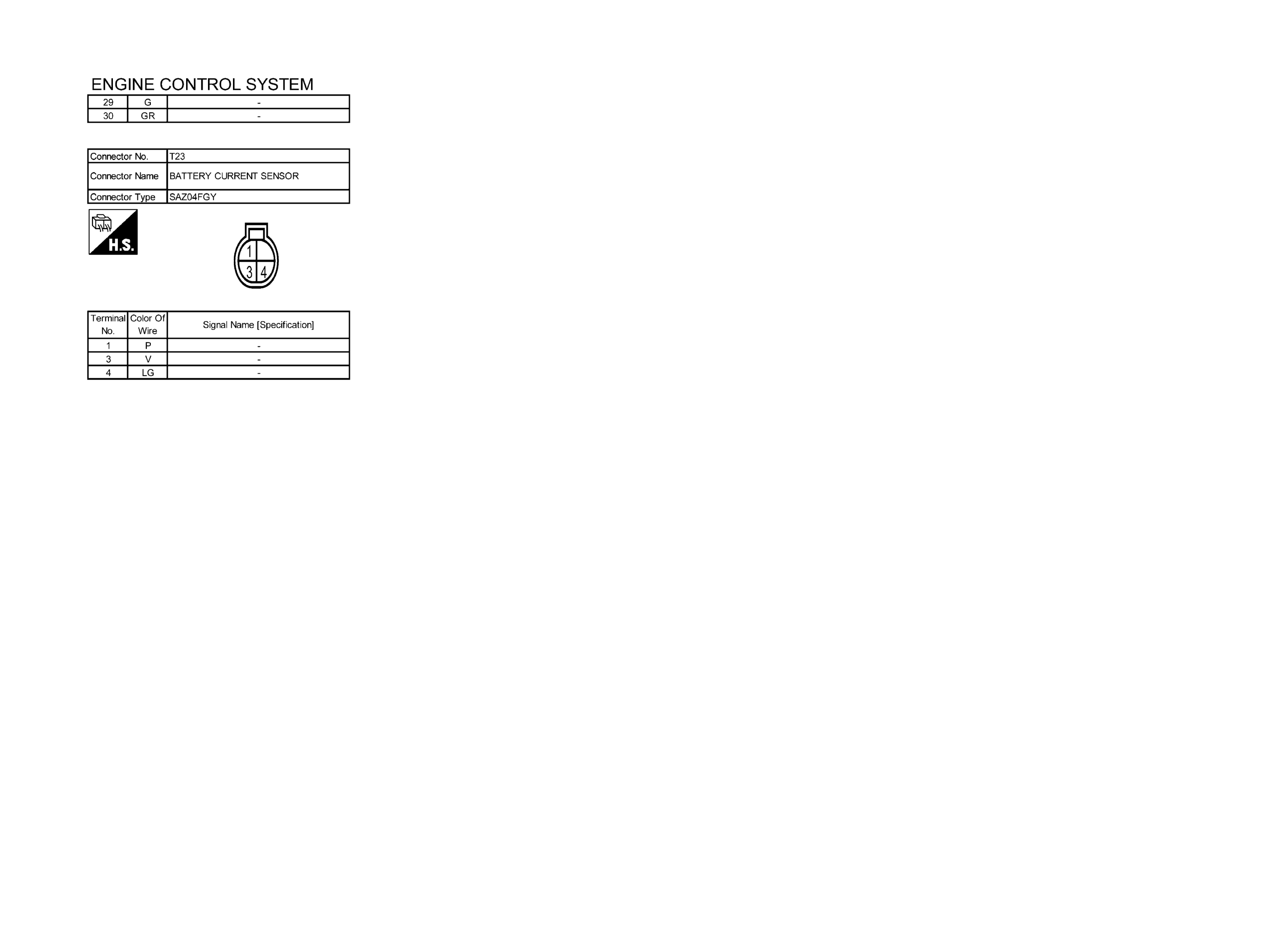

Fig 21: Engine Control System Connector End Views And Pin-Outs (16 Of 16)

GNSJRBWD0273GB-273

Courtesy of NISSAN NORTH AMERICA, INC.
