Power Window Control System (Convertible)
›
Ecu Diagnosis Information
›
Power Window Sub-Switch
›
Wiring Diagram - Power Window Control System -
Wiring Diagram - Power Window Control System -

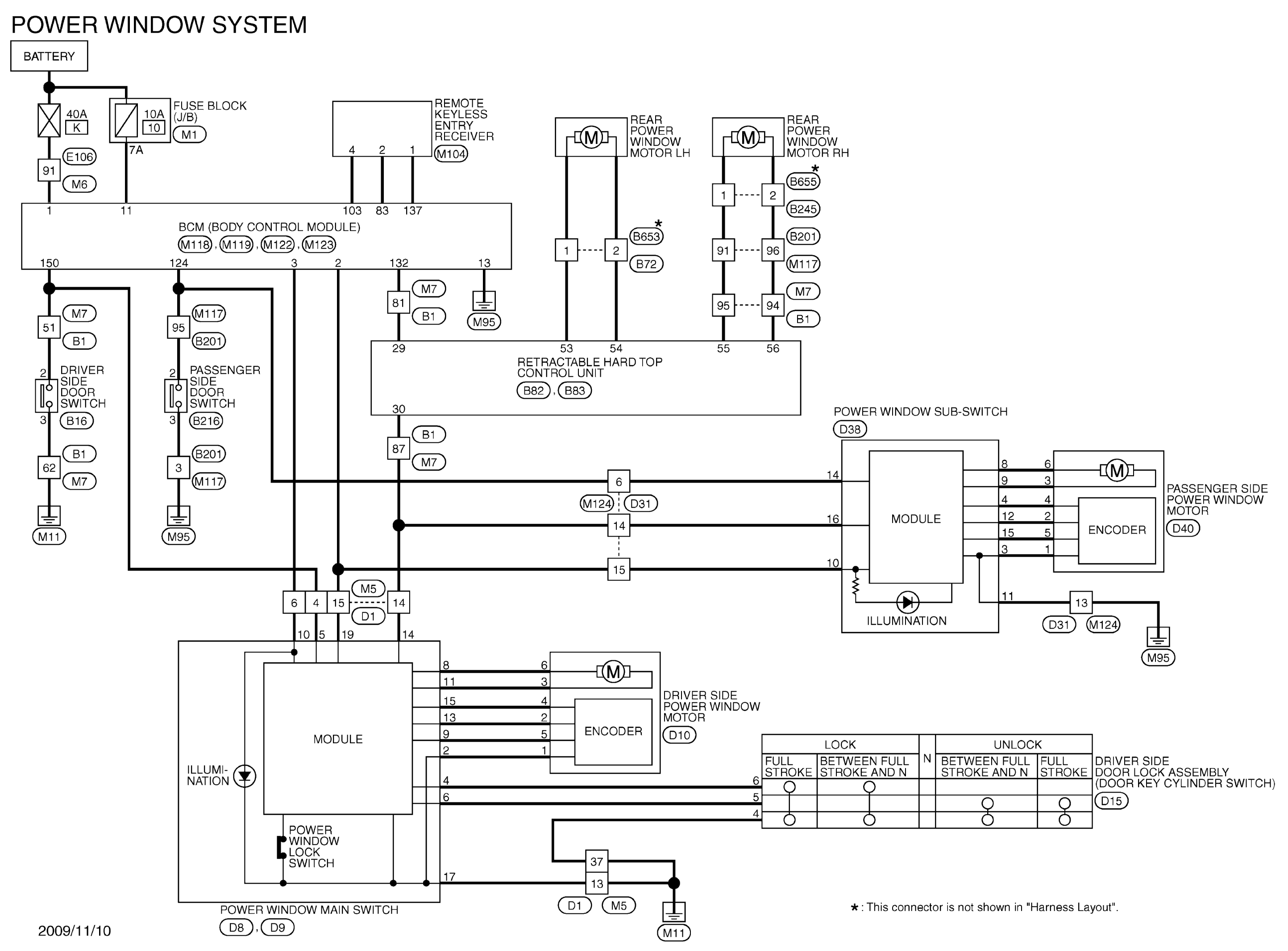

Fig 1: Power Window Control System Wiring Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
