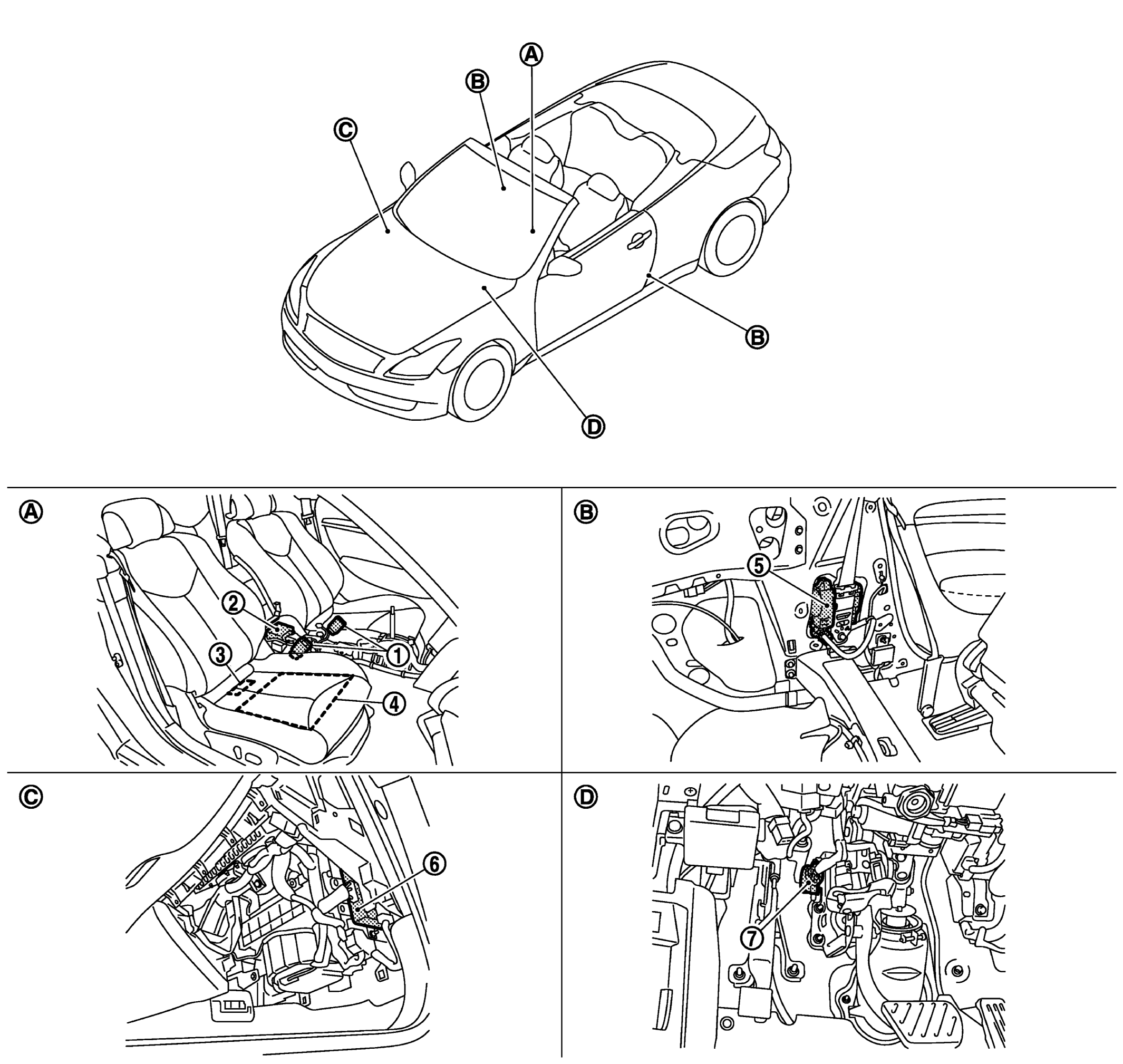

Component Parts Location
| 1. | Seat belt buckle switch Driver side: B13 Passenger side: B213 |
2. | Air bag diagnosis sensor unit E36 | 3. | Occupant Classification System control unit B214 |
| 4. | Occupant Classification System seat sensor mat | 5. | Pre-crash seat belt motor LH: B28 RH: B228 |
6. | Pre-crash seat belt control unit M110 |
| 7. | Brake pedal stroke sensor E116 | ||||
| A. | Front seat | B. | Behind rear side finisher | C. | Behind glove box assembly |
| D. | Behind instrument driver lower cover |
