Exploded View With Torque Specifications: Removal

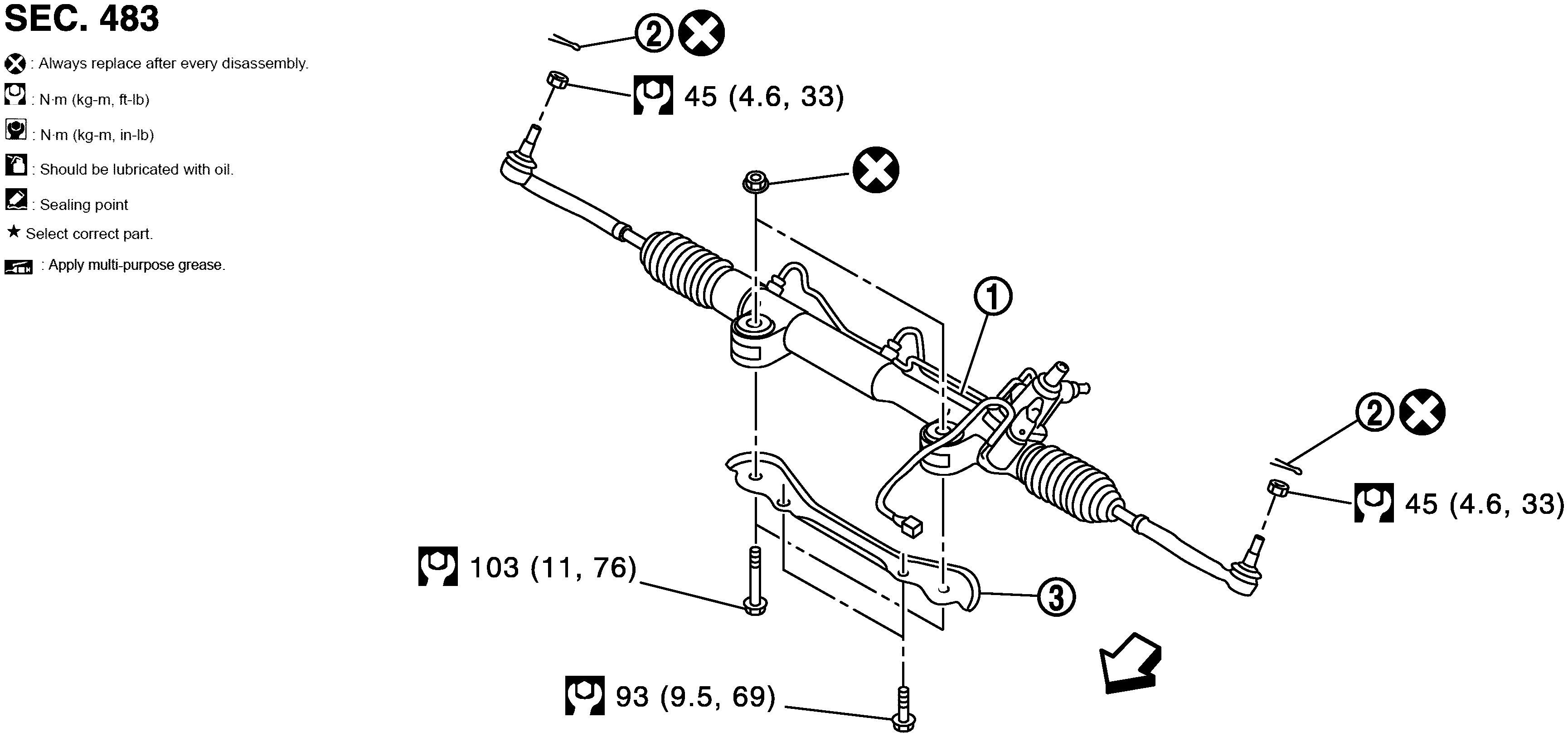

Fig 1: Exploded View Of Steering Gear And Linkage With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering gear assembly	2.	Cotter pin	3.	Rack stay
→: Vehicle front
Refer to COMPONENTS for symbols in the figure.
