Exploded View With Torque Specifications

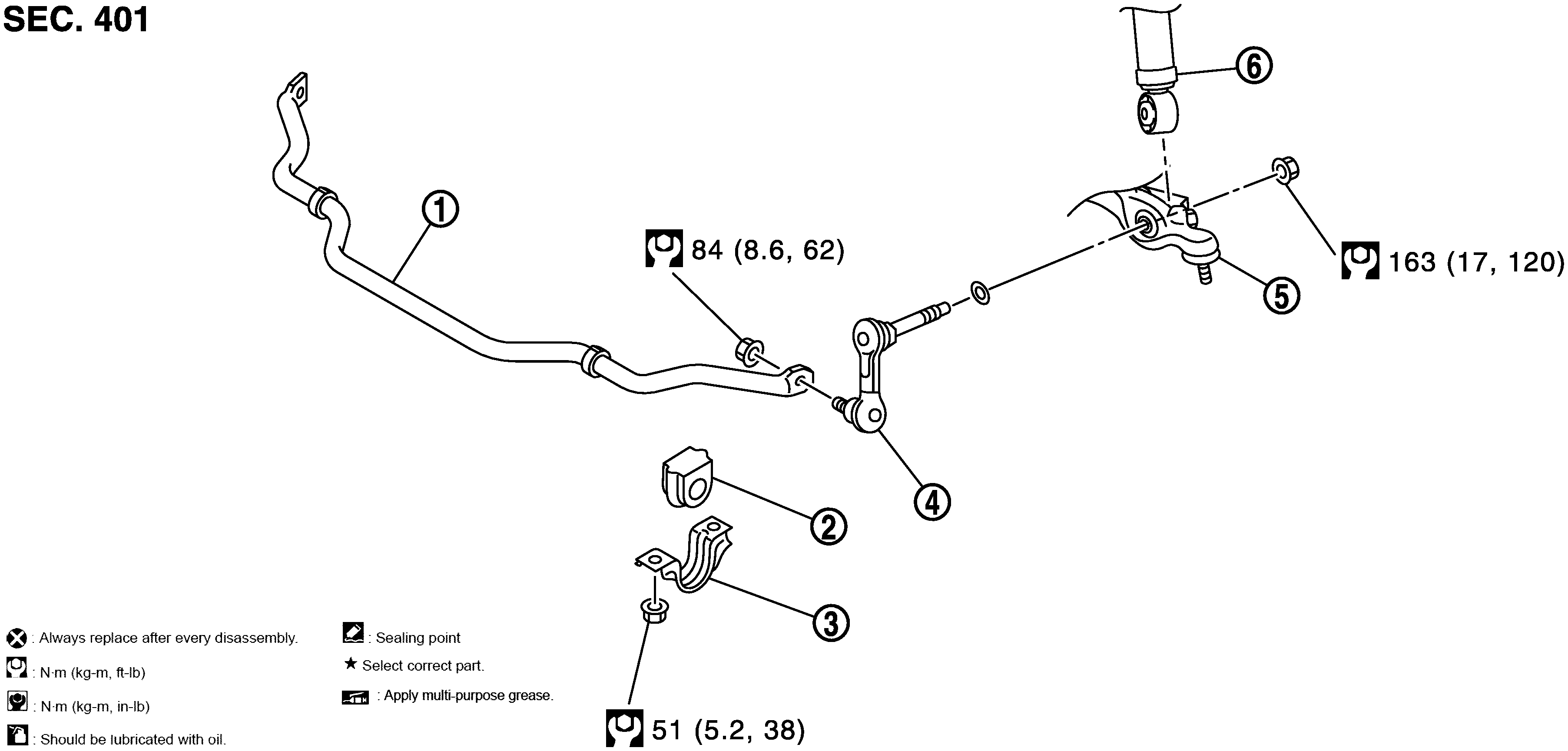

Fig 1: Exploded View Of Front Stabilizer With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Stabilizer bar	2.	Stabilizer bushing	3.	Stabilizer clamp
4.	Stabilizer connecting rod	5.	Transverse link	6.	Shock absorber
Refer to COMPONENTS for symbols in the figure.
