Exploded View With Torque Specifications

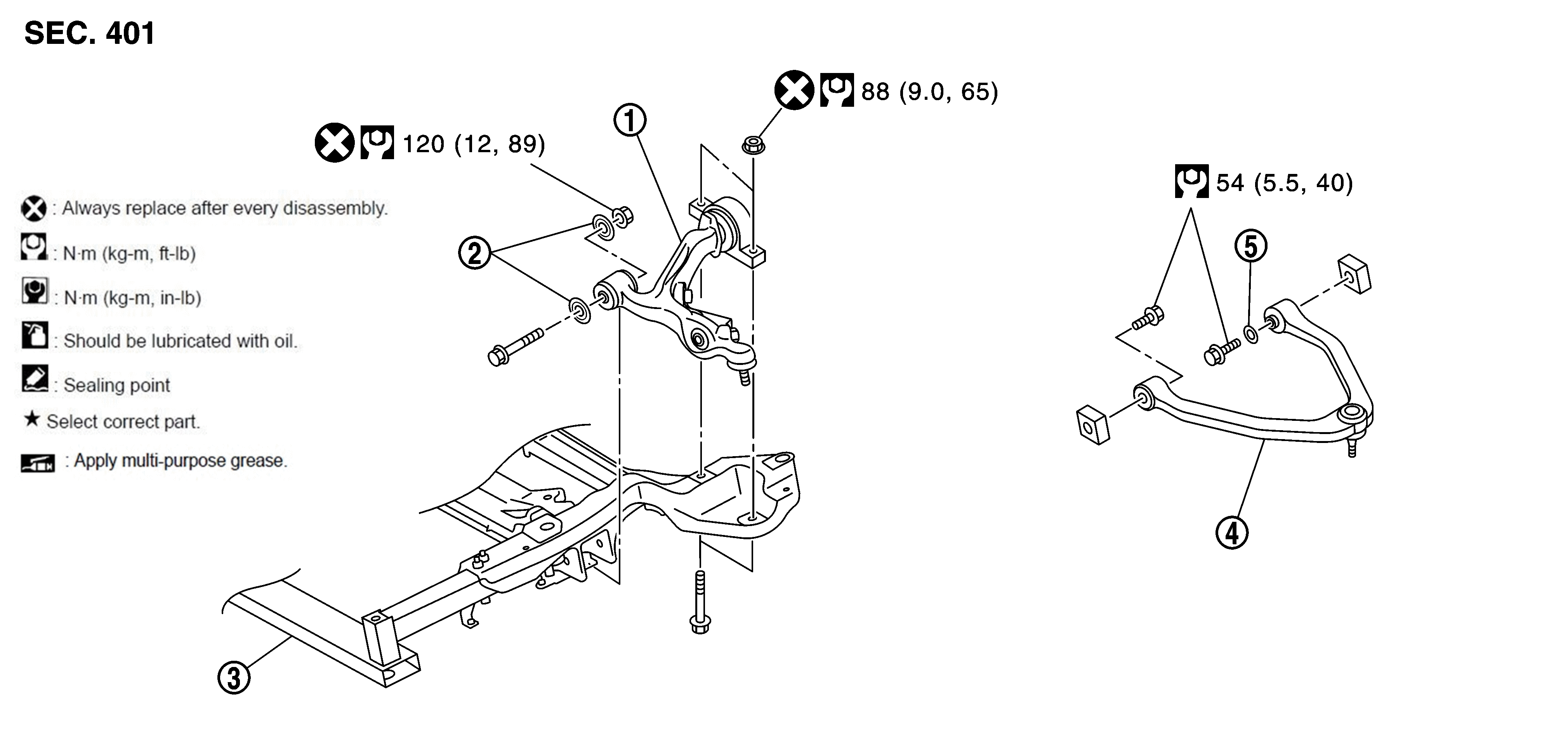

Fig 1: Exploded View Of Upper Link & Transverse Link With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Transverse link	2.	Stopper bush	3.	Front suspension member
4.	Upper link	5.	Stopper rubber
Refer to COMPONENTS for symbols in the figure.
