Relation Between Illustrations And Descriptions

The following sample explains the relationship between the part description in an illustration, the part name in the text and the service procedures.

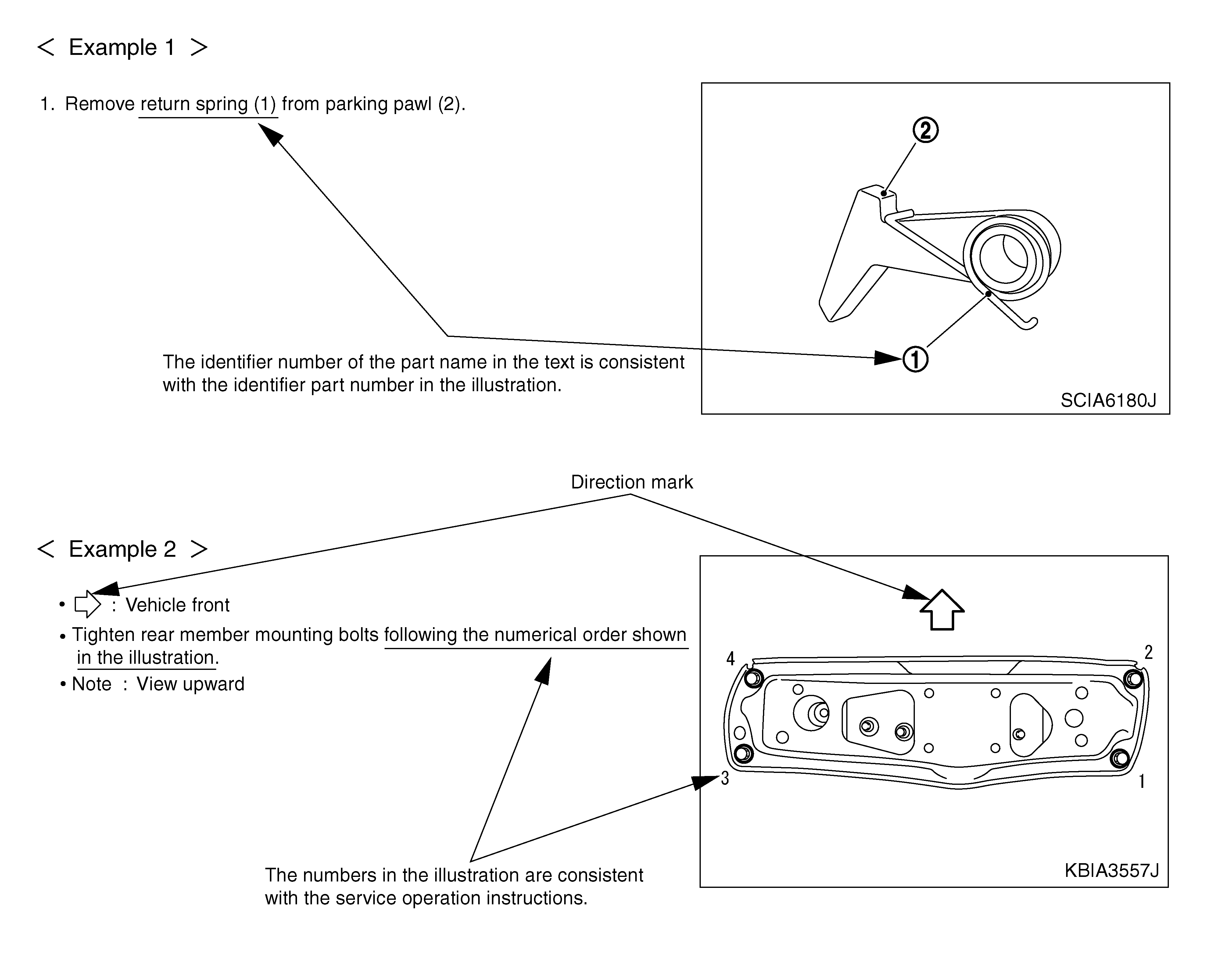

Fig 1: Identifying Relation Between Illustrations And Descriptions

Courtesy of NISSAN NORTH AMERICA, INC.
