Exploded View With Torque Specifications

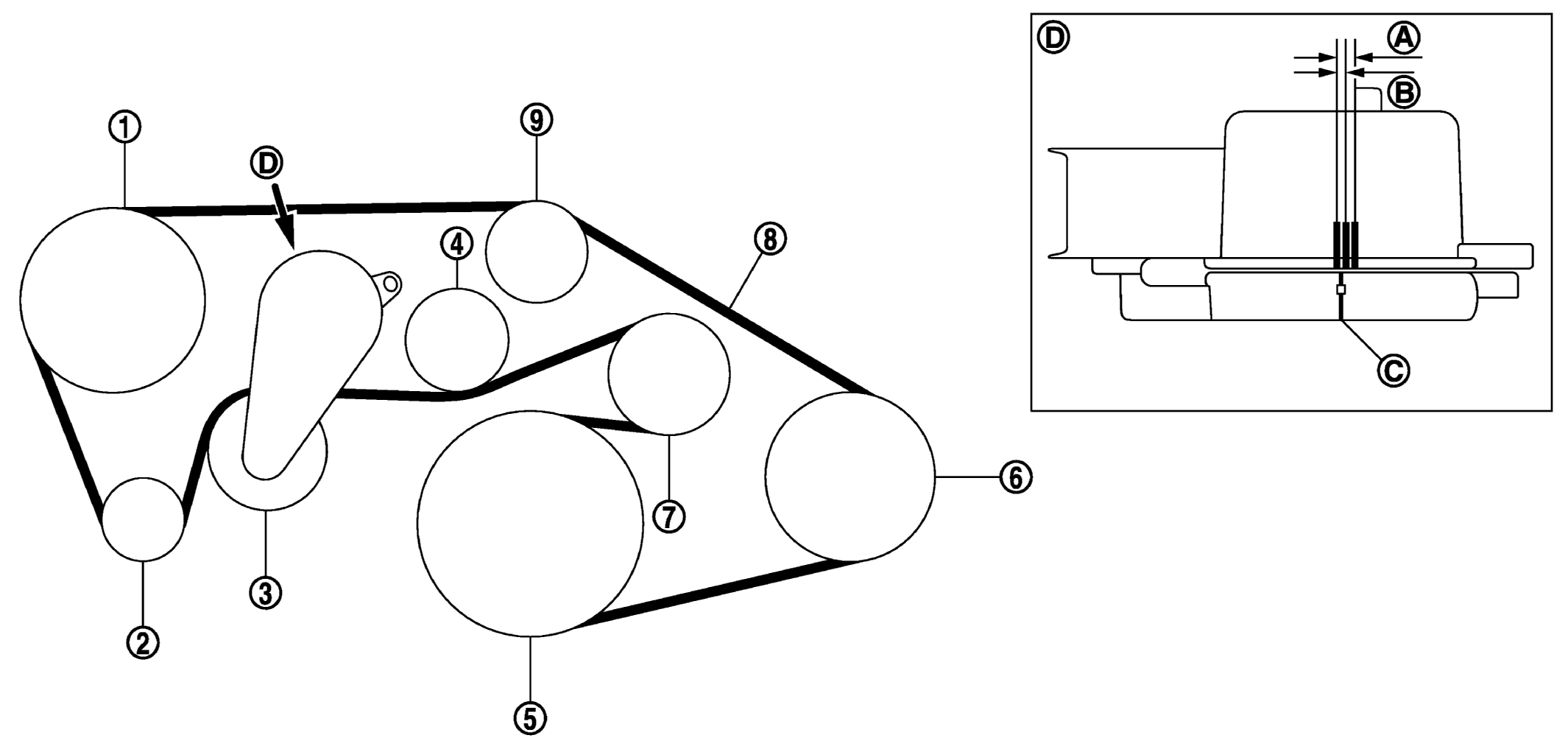

Fig 1: Drive Belt Routing Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Power steering oil pump	2.	Alternator	3.	Drive belt auto-tensioner
4.	Idler pulley	5.	Crankshaft pulley	6.	A/C compressor
7.	Idler pulley	8.	Drive belt	9.	Idler pulley
A.	Possible use range	B.	Range when new drive belt is installed	C.	Indicator
D.	View D
