Components Location

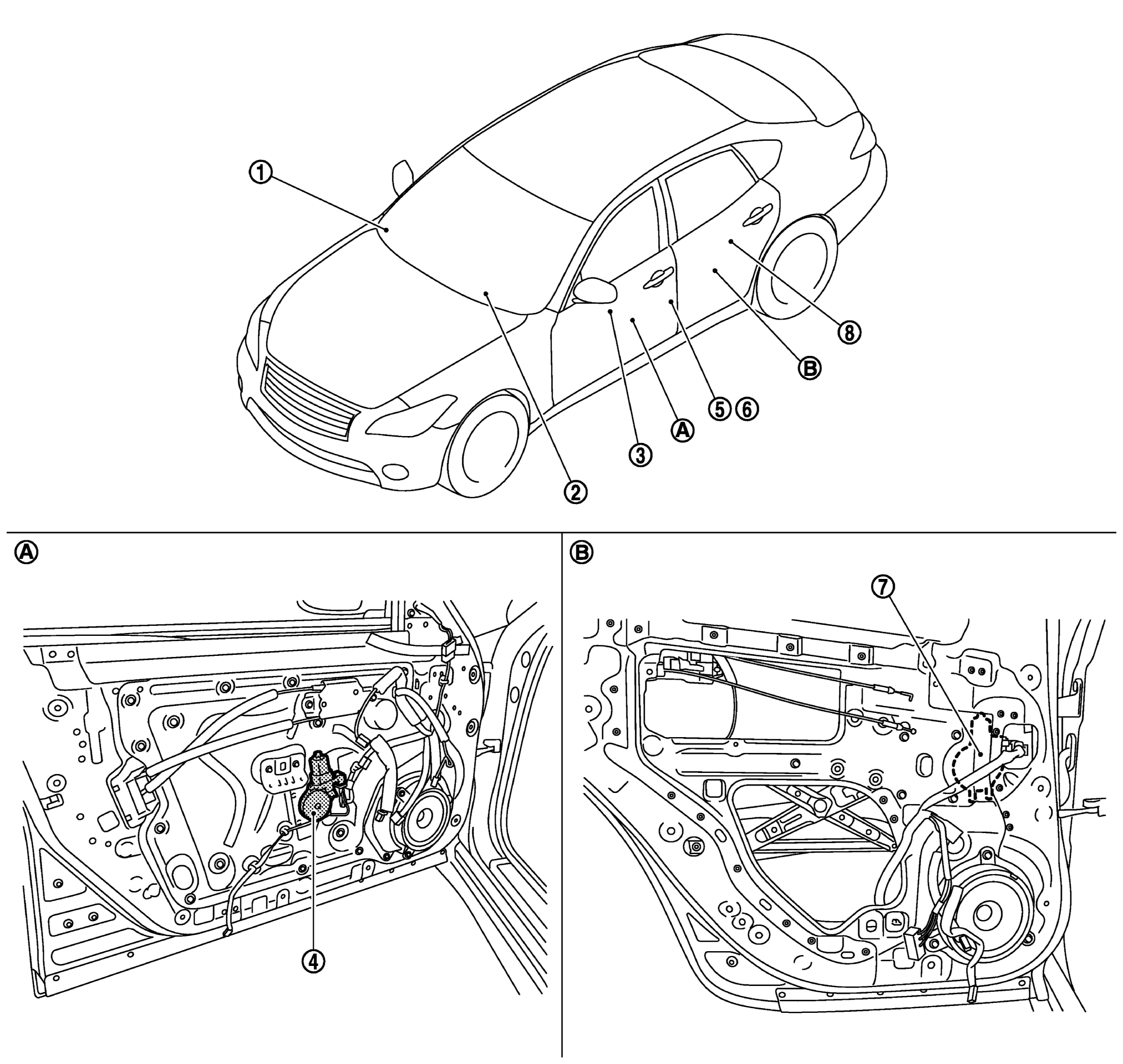

Fig 1: Power Window Control System Components Location

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Remote keyless entry receiver Refer to COMPONENTS LOCATION	2.	BCM Refer to COMPONENTS LOCATION	3.	Power window main switch
4.	Front power window motor (driver side)	5.	Front door switch (driver side)	6.	Front door lock assembly (driver side) (door key cylinder switch)
7.	Rear power window motor LH	8.	Rear power window switch LH
A.	View with front door finisher removed	B.	View with rear door finisher removed
