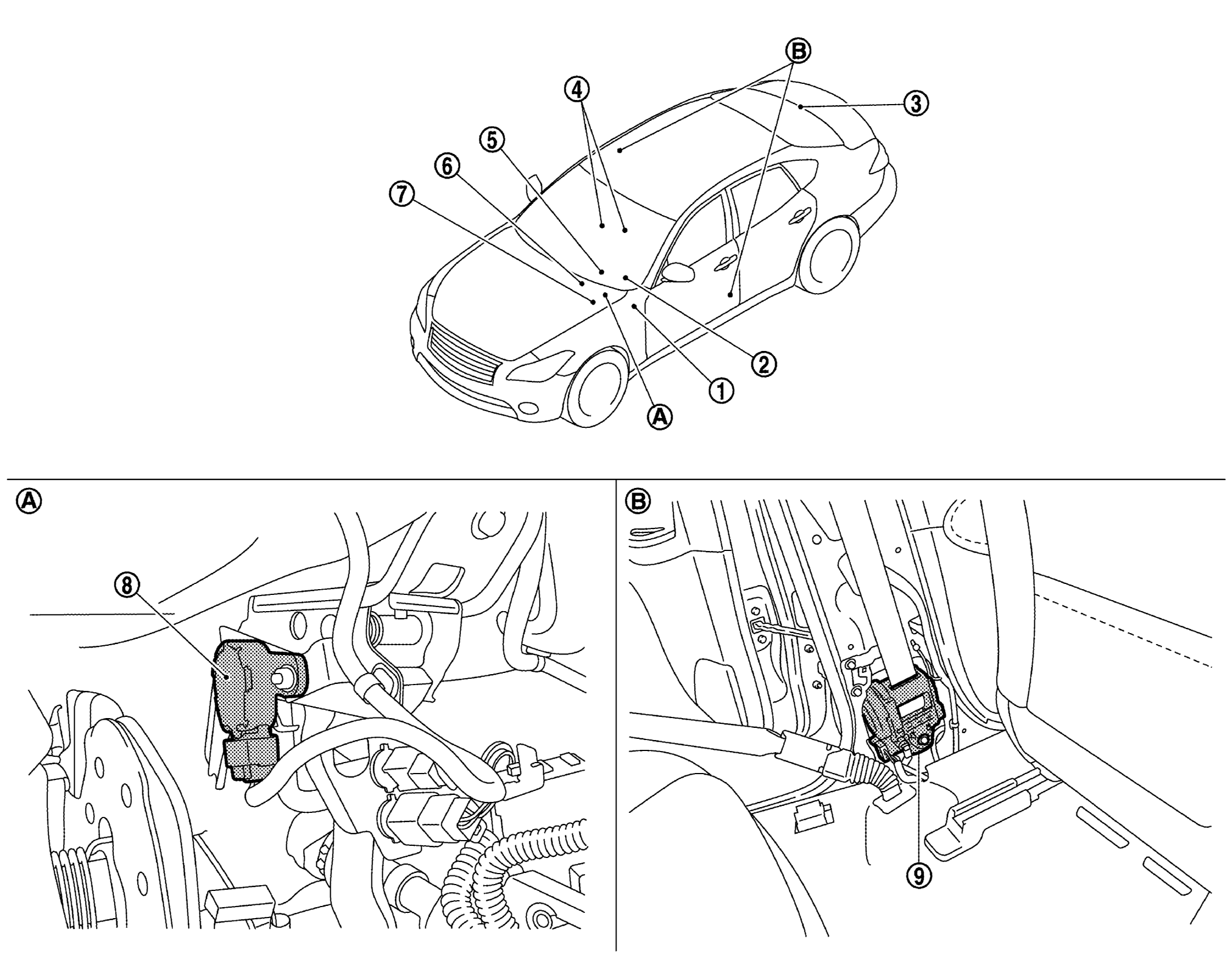

Components Location
| 1. | BCM | 2. | Combination meter | 3. | ADAS control unit |
| 4. | Seat belt buckle switch | 5. | Steering angle sensor | 6. | ABS actuator and electric unit (control unit) |
| 7. | Electrically-driven intelligent brake unit | 8. | Stroke sensor | 9. | Pre-crash seat belt control unit (driver side) |
| A. | View with instrument driver lower cover removed | B. | View with center pillar lower garnish removed (driver side) |
