Repair and Diagnosis
›
Steering
›
Steering Control Systems
›
Steering Control System (Hybrid)
›
System Description
›
System
›
Hybrid EPS System
›
Circuit Diagram
Circuit Diagram

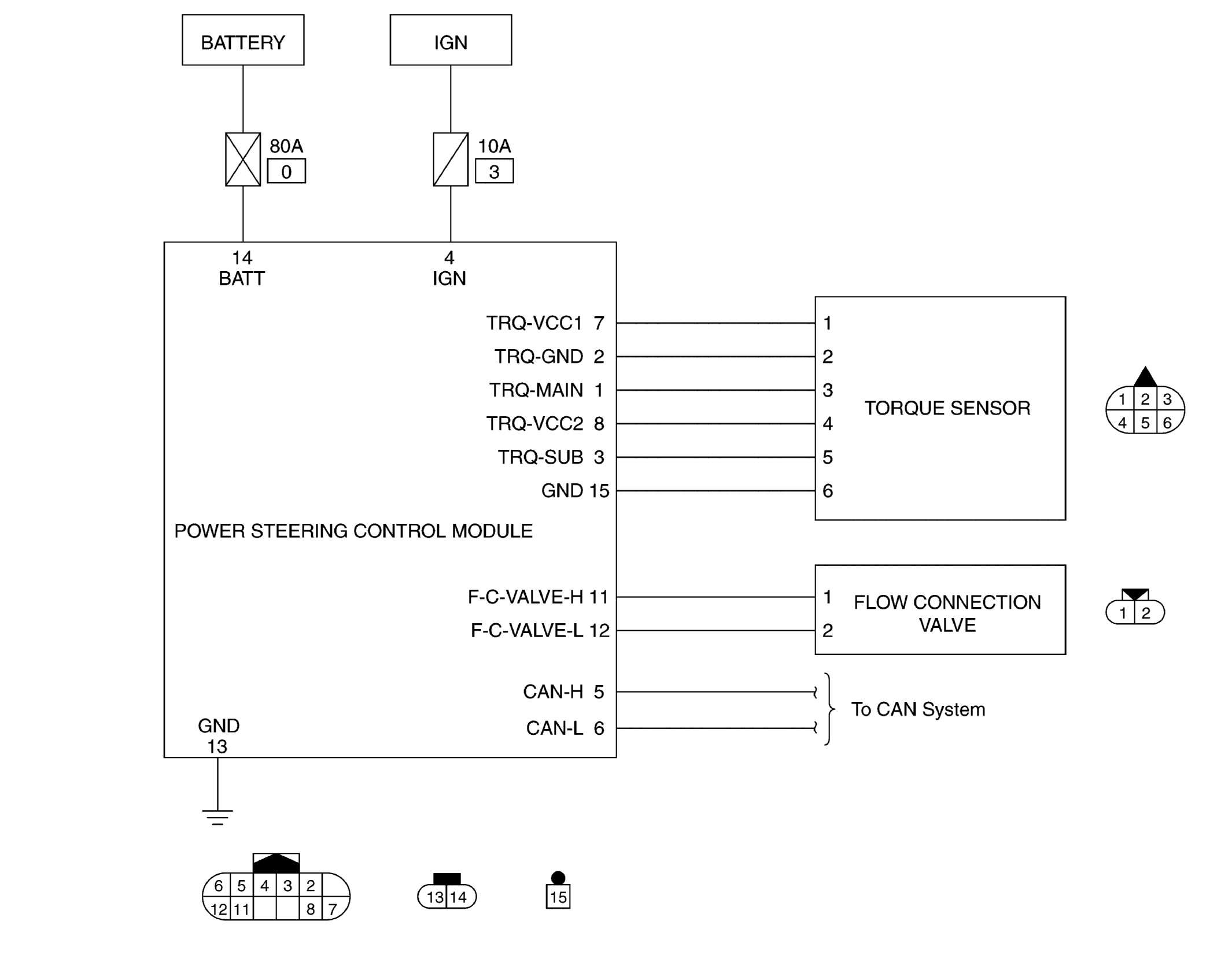

Fig 1: Hybrid EPS System -- Circuit Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
