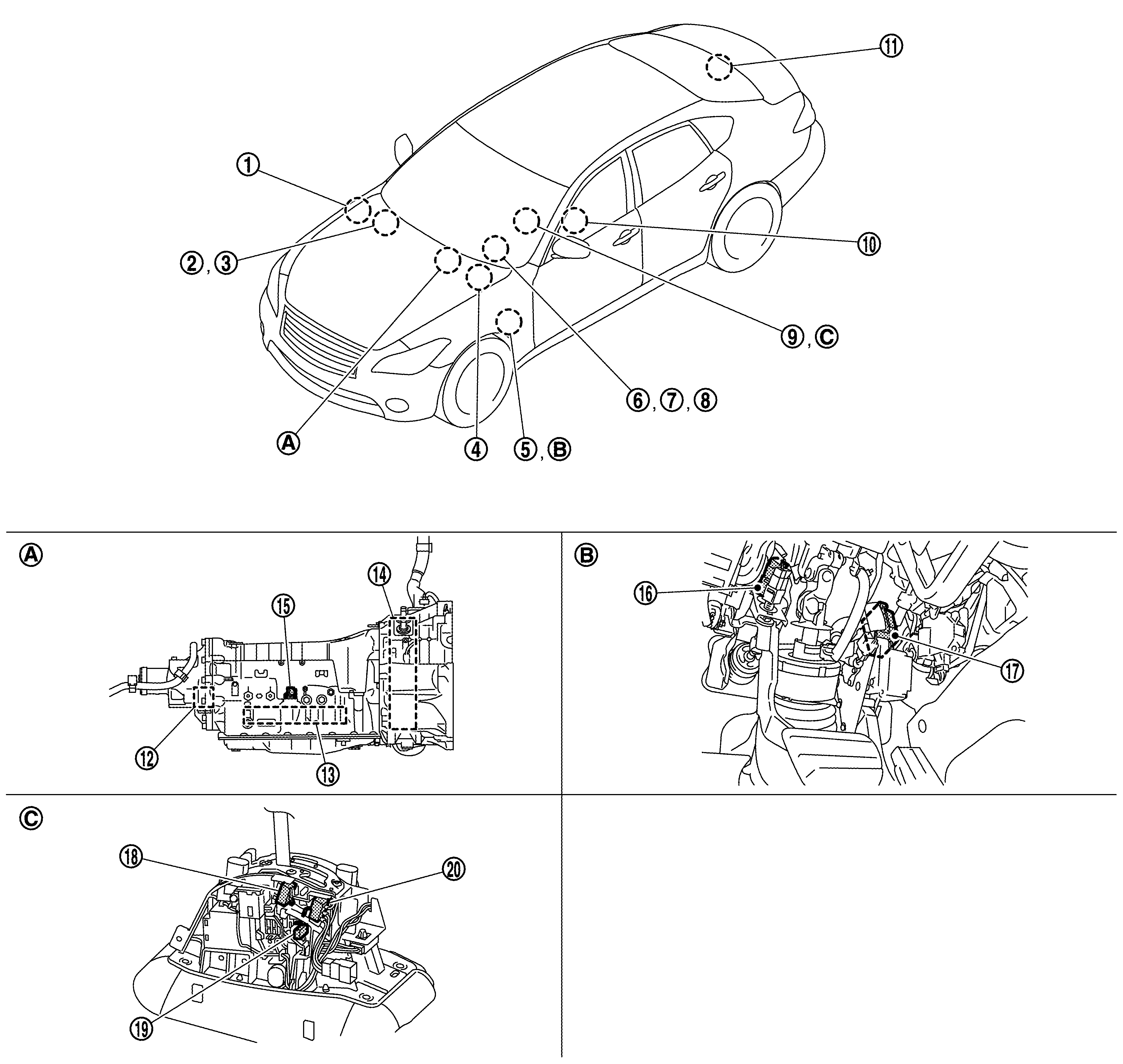

Components Location
| 1. | IPDM E/R Refer to COMPONENTS LOCATION . |
2. | ECM Refer to COMPONENTS LOCATION . |
3. | A/C auto amp. Refer to COMPONENTS LOCATION . |
| 4. | ABS actuator and electric unit (control unit) Refer to COMPONENTS LOCATION . |
5. | BCM Refer to COMPONENTS LOCATION . |
6. | Combination meter Refer to COMPONENTS LOCATION . |
| 7. | A/T CHECK indicator lamp (On the combination meter) |
8. | Shift position indicator (In the information display LCD in the combination meter) |
9. | Drive mode select switch Refer to COMPONENTS LOCATION . |
| 10. | Yaw rate/side/decel G sensor Refer to COMPONENTS LOCATION . |
11. | HPCM Refer to COMPONENTS LOCATION . |
12. | Output speed sensor |
| 13. | Control valve & TCM* | 14. | Traction motor | 15. | Joint connector |
| 16. | Stop lamp switch | 17. | Accelerator pedal position sensor | 18. | Manual mode position select switch (shift-up) |
| 19. | Manual mode select switch | 20. | Manual mode position select switch (shift-down) | ||
| A. | A/T assembly | B. | Around the pedal | C. | A/T shift selector assembly |
| *: Control valve & TCM is included in A/T assembly. | |||||
NOTE:
The following components are included in control valve & TCM (13).
- TCM
- Input speed sensor 1, 2
- A/T fluid temperature sensor
- Transmission range switch
- Direct clutch solenoid valve
- High and low reverse clutch solenoid valve
- Input clutch solenoid valve
- Front brake solenoid valve
- Low brake solenoid valve
- Anti-interlock solenoid valve
- 2346 brake solenoid valve
- Line pressure solenoid valve
- Clutch 1 solenoid valve
