Exploded View With Torque Specifications

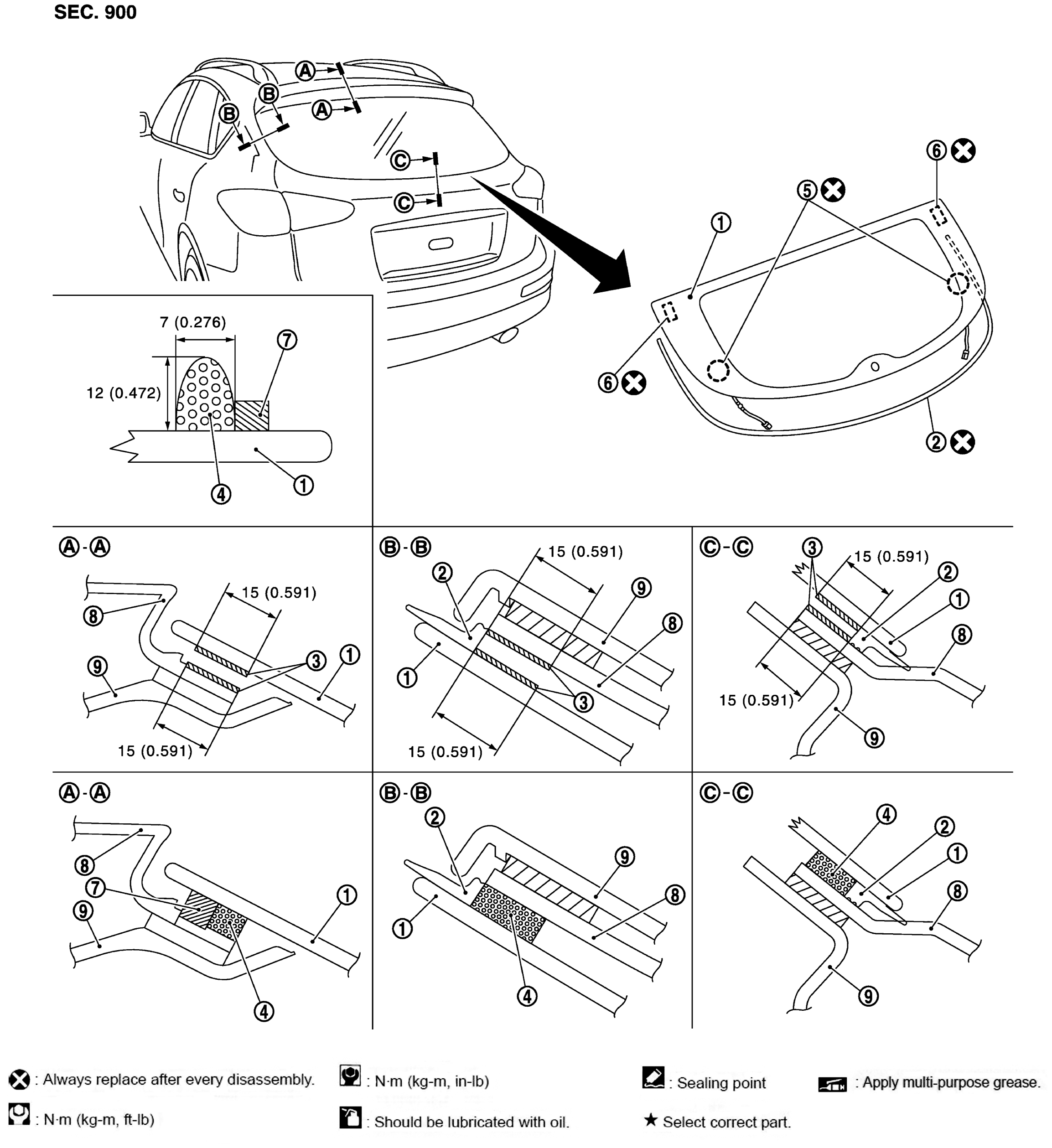

Fig 1: Exploded View Of Back Door Window Glass

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Back door glass window	2.	Back door window molding	3.	Primer
4.	Adhesive	5.	Back door glass holder	6.	Fastener
7.	Dam-rubber	8.	Back door outer	9.	Back door inner
Unit	: mm (in)
X	: Always replace after every disassembly.
