Exploded View With Torque Specifications

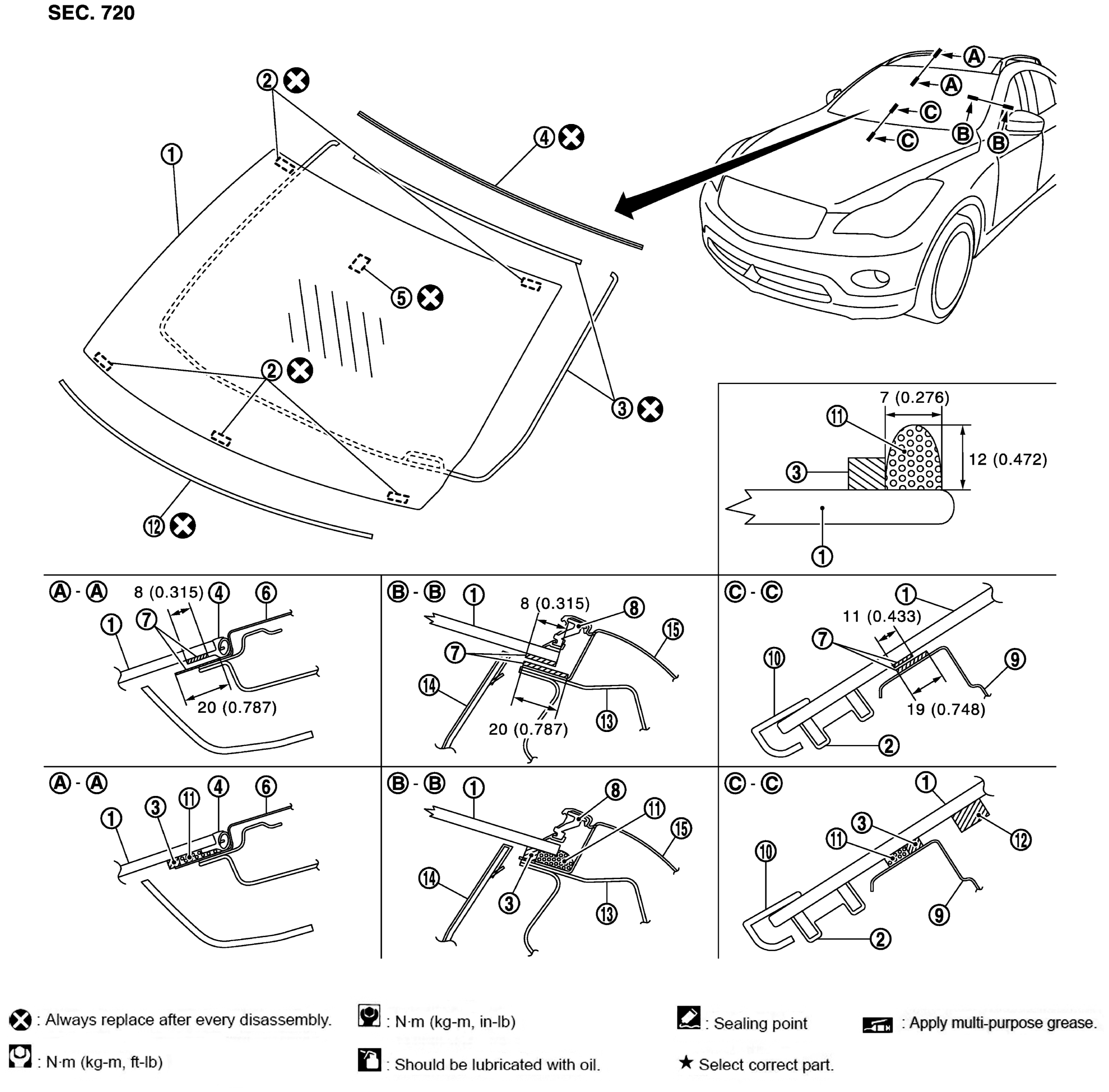

Fig 1: Exploded View Of Windshield Glass

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Windshield glass	2.	Clip	3.	Dam sealant rubber (upper, lower)
4.	Windshield molding	5.	Mirror base	6.	Roof panel
7.	Primer	8.	Roof side molding	9.	Dash upper cross member
10.	Cowl top cover	11.	Adhesive	12.	Insulator
13.	Front pillar outer upper	14.	Front pillar garnish	15.	Body side outer
Unit	: mm (in)
X	: Always replace after every disassembly.
