Vehicle Compartment
WARNING: This page is about a different car, the 2015 Infiniti Q70. However, it is still accessible from the selected car via links, so may be relevant.

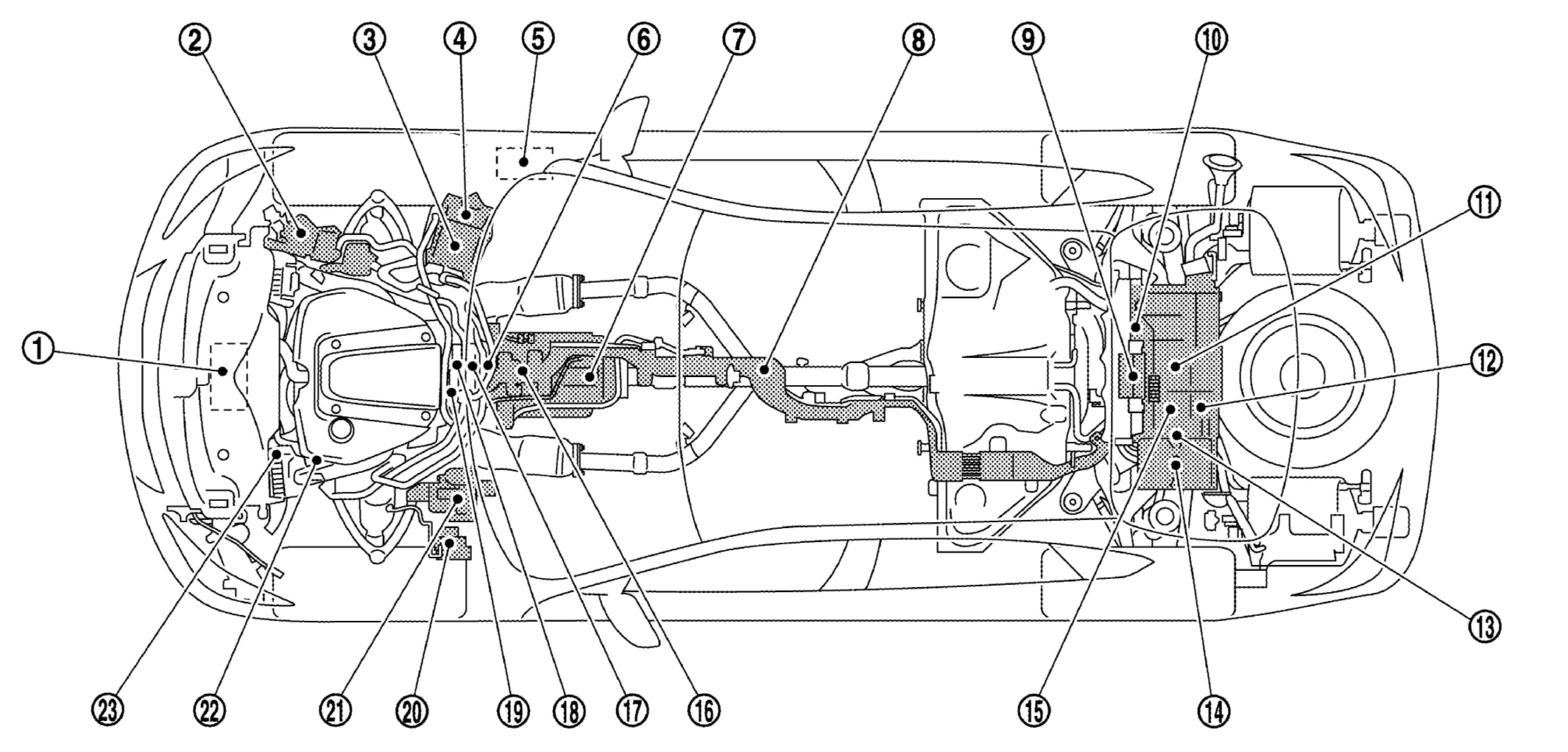

| No. | Component | Description |
|---|---|---|
| 1. | Cooling fan | COOLING FAN For details of installation position, refer to COMPONENTS LOCATION . |
| 2. | Power steering control module | POWER STEERING OIL PUMP ASSEMBLY For details of installation position, refer to COMPONENTS LOCATION . |
| 3. | IPDM E/R | Input a ignition switch status (ON) to HPCM. For details of installation position, refer to COMPONENTS LOCATION . |
| 4 | Traction motor inverter | TRACTION MOTOR INVERTER For details of installation position, refer to COMPONENTS LOCATION . |
| 5. | ECM | ECM For details of installation position, refer to COMPONENTS LOCATION . |
| 6. | Traction motor | TRACTION MOTOR For details of installation position, refer to COMPONENTS LOCATION . |
| 7. | Transmission (Clutch 2) |
The torque transfer/shutoff is performed by the clutch included in the transmission and controlled by TCM according to a command from HPCM. The clutch used at startup or engine starting is called Clutch 2. For the structure and operation, refer to CROSS-SECTIONAL VIEW . |
| 8. | High-voltage harness | Harness for high voltage and high current. This is used mainly for the connection with a part that a high voltage is supplied from the ion battery. All high voltage harnesses and connectors are orange-colored. |
| 9. | HPCM | HPCM |
| 10. | Battery cooling fan | BATTERY COOLING FAN For details of installation position, refer to COMPONENTS LOCATION . |
| 11. | Li-ion battery | LI-ION BATTERY For details of installation position, refer to COMPONENTS LOCATION . |
| 12. | Li-ion battery controller | LI-ION BATTERY CONTROLLER For details of installation position, refer to COMPONENTS LOCATION . |
| 13. | Battery junction box | BATTERY JUNCTION BOX For details of installation position, refer to COMPONENTS LOCATION . |
| System main relay | SYSTEM MAIN RELAY | |
| 14. | 12V battery | 12V BATTERY |
| 15. | DC/DC converter | DC/DC CONVERTER For details of installation position, refer to COMPONENTS LOCATION . |
| 16. | TCM | TCM For details of installation position, refer to COMPONENTS LOCATION . |
| 17. | Clutch 1 stroke sensor | CLUTCH 1 STROKE SENSOR |
| 18. | Clutch 1 | DESCRIPTION |
| 19. | Sub electric oil pump | SUB ELECTRIC OIL PUMP For details of installation position, refer to COMPONENTS LOCATION . |
| 20. | ABS actuator and electric unit (control unit) | ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) For details of installation position, refer to COMPONENTS LOCATION . |
| 21. | Electrically-driven intelligent brake unit | ELECTRICALLY-DRIVEN INTELLIGENT BRAKE For details of installation position, refer to COMPONENTS LOCATION . |
| 22. | Electric compressor | COMPONENT DESCRIPTION For details of installation position, refer to COMPONENTS LOCATION . |
| 23. | Electric water pump | HIGH VOLTAGE COOLING SYSTEM |
