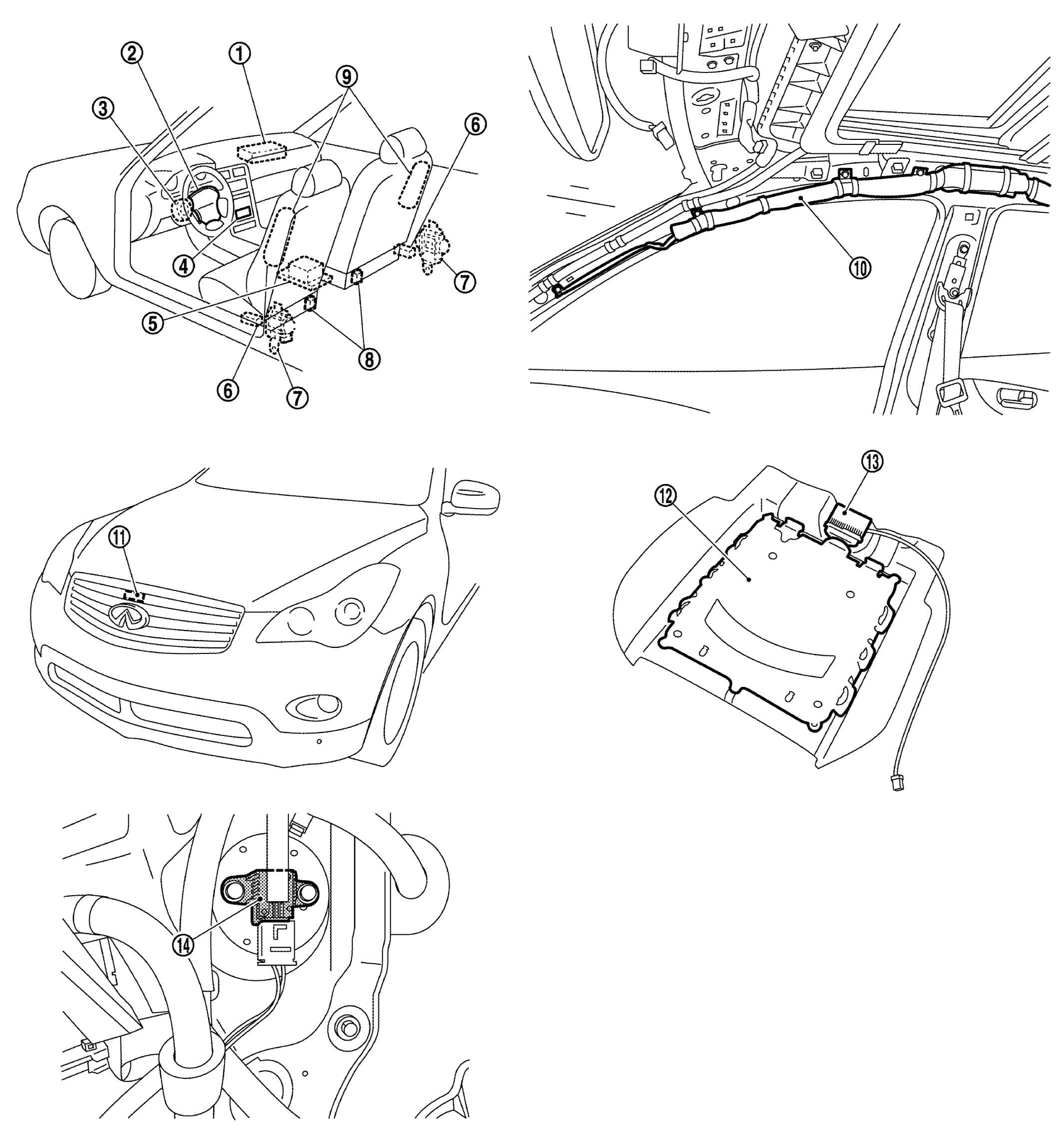

| 1. |
Front passenger air bag module |
2. |
Driver air bag module |
3. |
Combination switch (Spiral cable) |
| 4. |
Front passenger air bag OFF indicator |
5. |
Air bag diagnosis sensor unit |
6. |
Satellite sensor (LH/RH) |
| 7. |
Front seat belt pre-tensioner (LH/RH) |
8. |
Seat belt buckle switch (Driver side/Passenger side) |
9. |
Front side air bag module (LH/RH) |
| 10. |
Side curtain air bag module |
11. |
Crash zone sensor |
12. |
Occupant classification system seat sensor mat |
| 13. |
Occupant classification system control unit |
14. |
Front door satellite sensor (LH/RH) |
|
|
