Exploded View With Torque Specifications

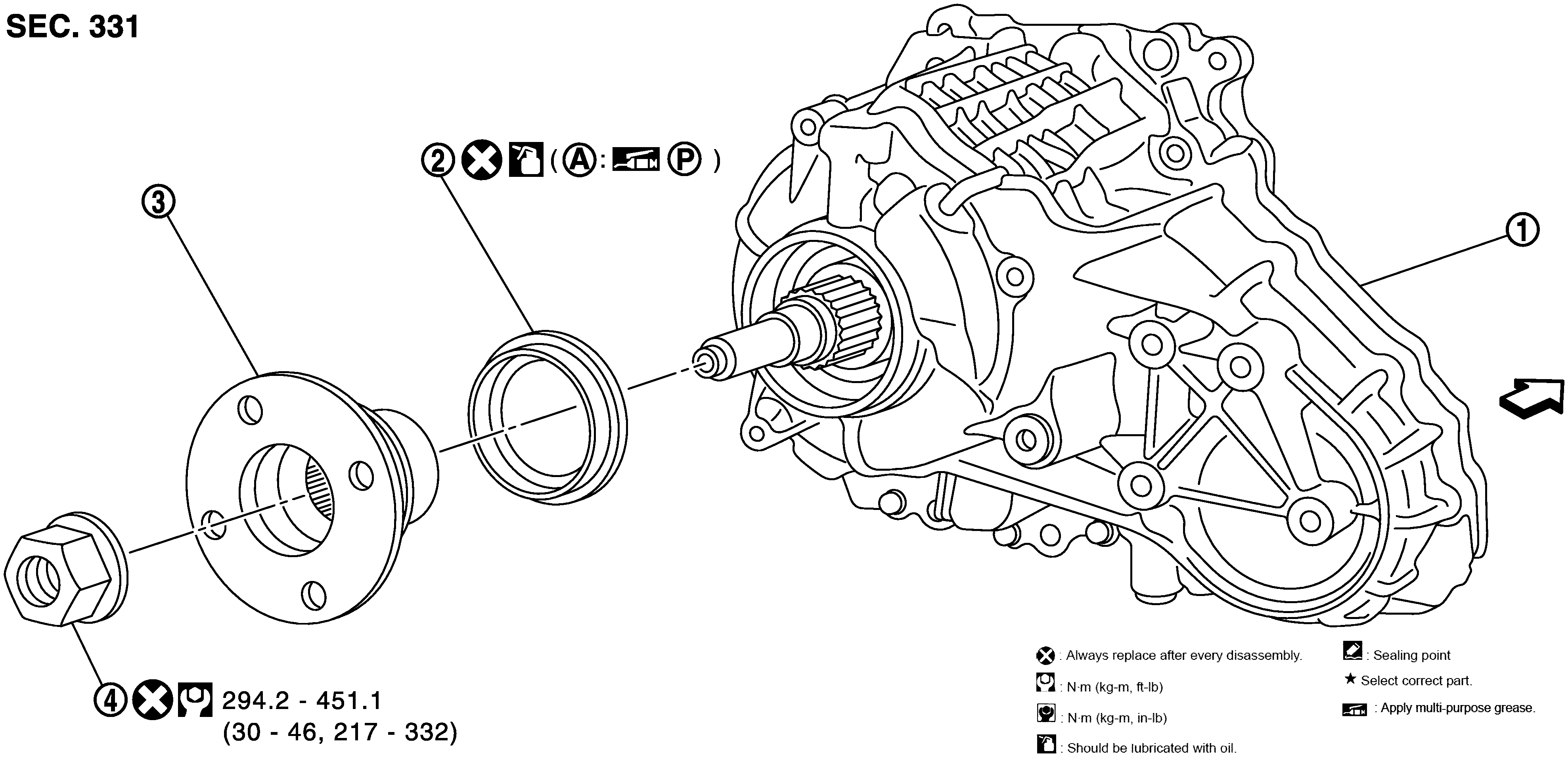

Fig 1: Exploded View Of Rear Oil Seal With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Transfer assembly	2.	Rear oil seal	3.	Companion flange
4.	Self-lock nut
A.	Oil seal lip
==> : Vehicle front
Oil Can : Apply transfer fluid. Refer to FLUIDS AND LUBRICANTS .
Lubricate : Apply petroleum jelly.
Refer to COMPONENTS for symbols not described above.
