Component Parts Location

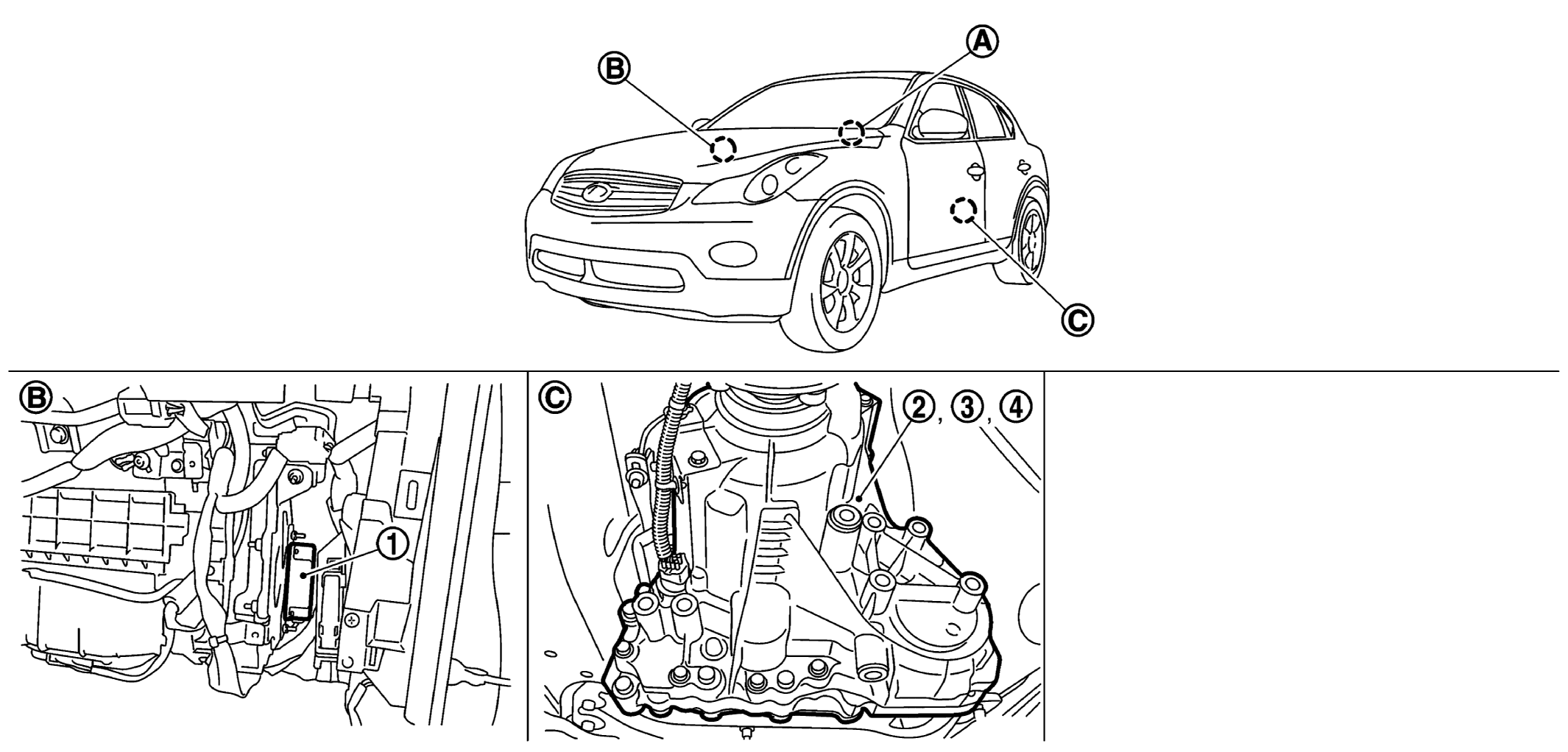

Fig 1: Transfer Case Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

1.	AWD control unit	2.	AWD solenoid (inside transfer)	3.	Transfer fluid temperature sensor (inside transfer)
4.	Electric controlled coupling (inside transfer)
A.	AWD warning lamp (in combination meter)	B.	Glove box assembly removed	C.	Transfer assembly
