Component Parts Location

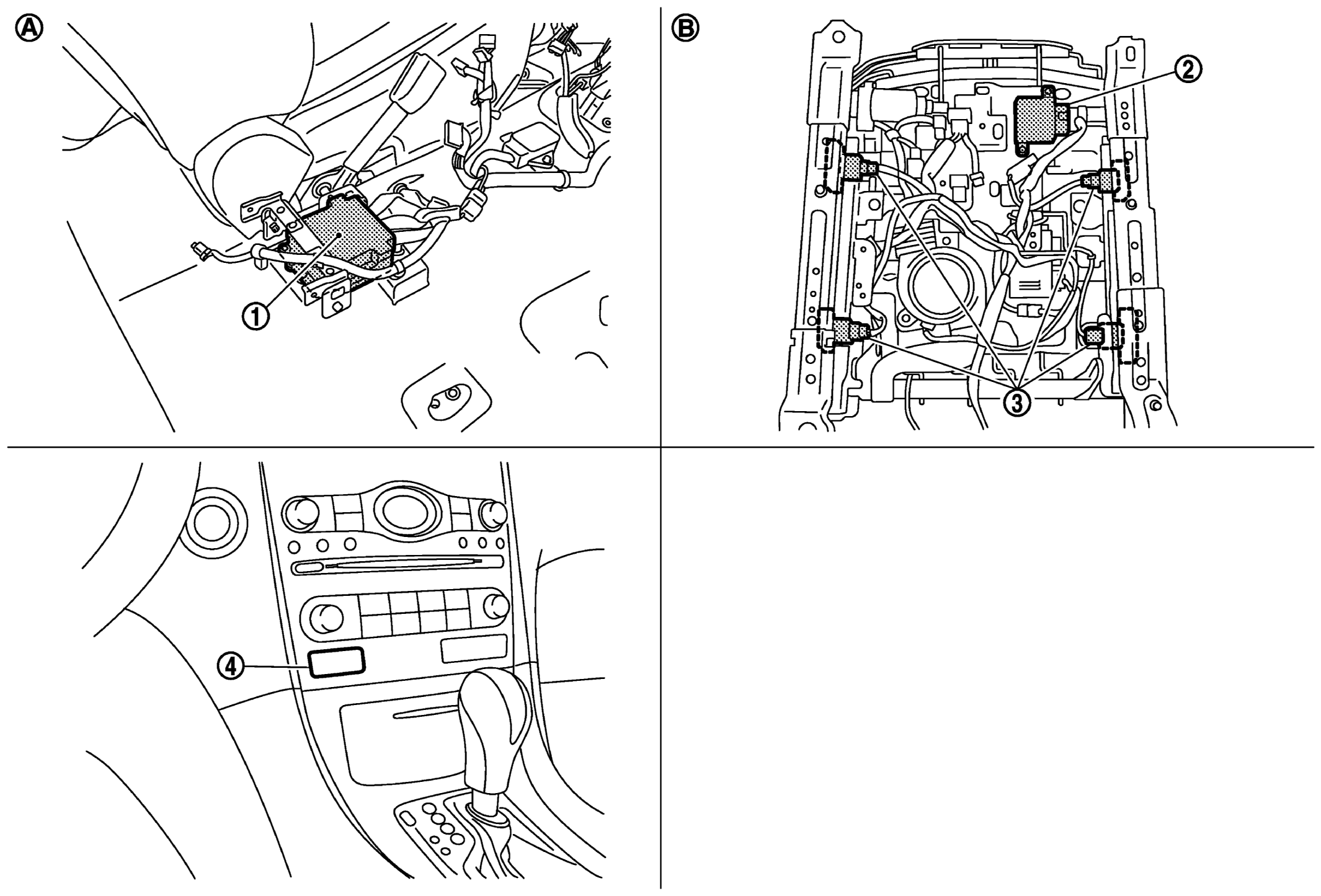

Fig 1: Occupant Detection System Components Location

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Air Bag Diagnosis Sensor Unit	2.	Occupant Detection System Control Unit	3.	Occupant Detection System Sensor
4.	Passenger Air Bag OFF Indicator
A.	View With Center Console Assembly Removed	B.	Backside Of The Seat Cushion
