AV Control Unit Connector End View (M323)

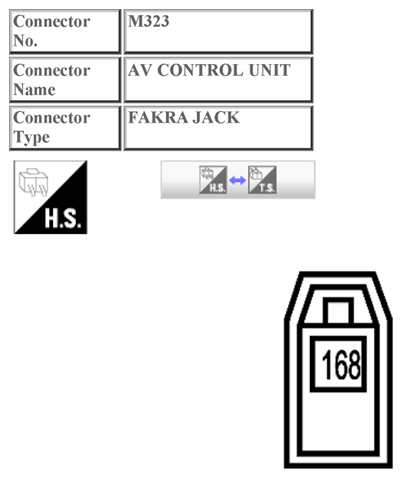

Fig 1: AV Control Unit Connector End View (M323)
G10438668Courtesy of NISSAN NORTH AMERICA, INC.
