System Diagram

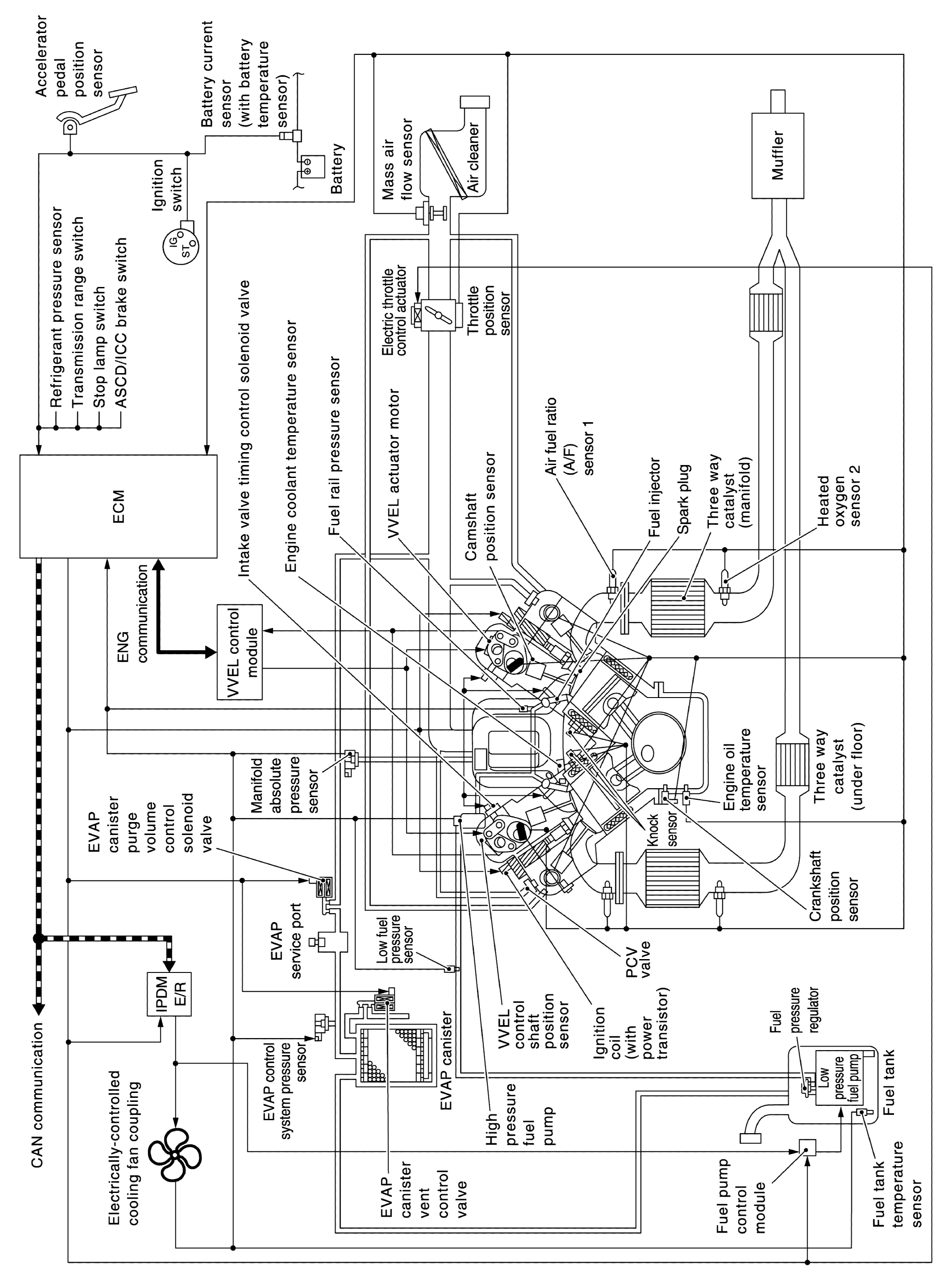

Fig 1: Engine Control System Diagram
G07026180Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:

Low fuel pressure sensor is not used.
