Exploded View With Torque Specifications
Exploded View With Torque Specifications

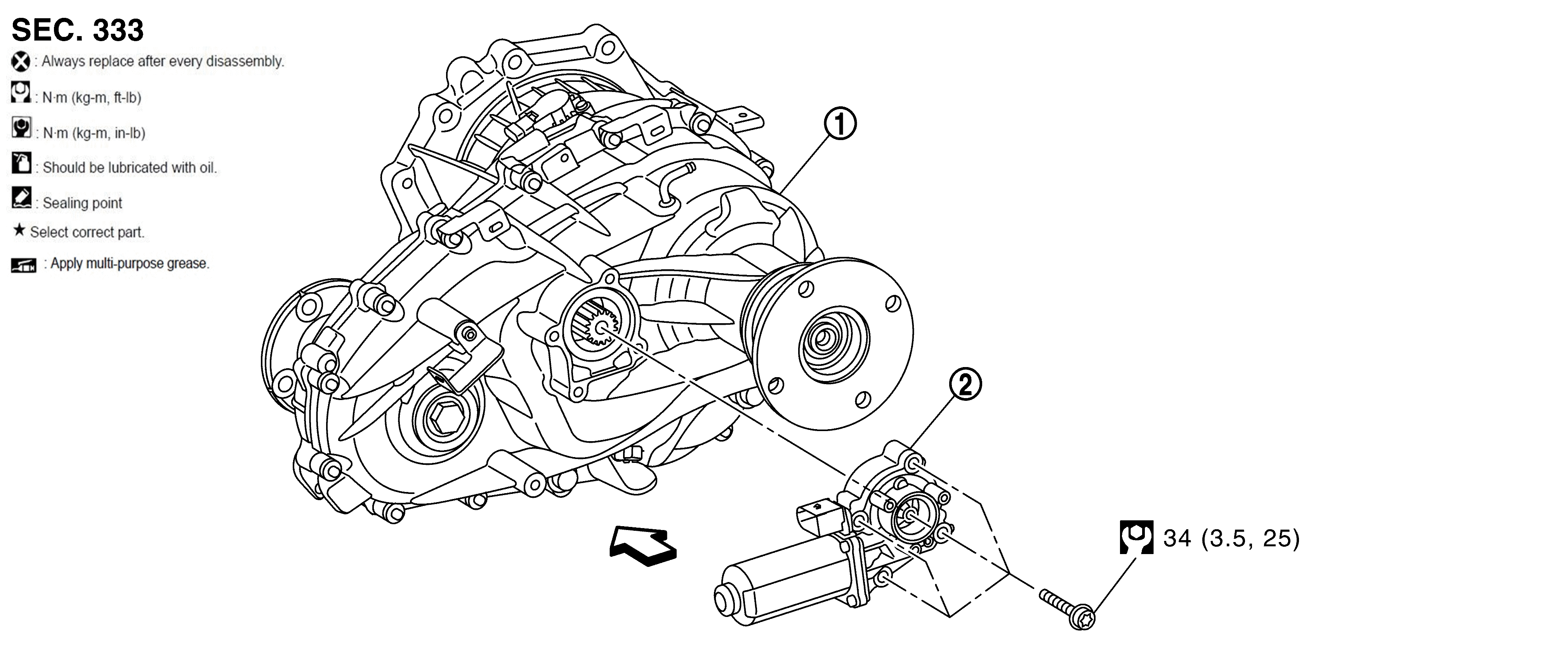

Fig 1: Exploded View Of Transfer Control Actuator With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Transfer assembly
2.
Transfer control actuator
: Vehicle front
Refer to
COMPONENTS
for symbols not described above.
