Exploded View With Torque Specifications

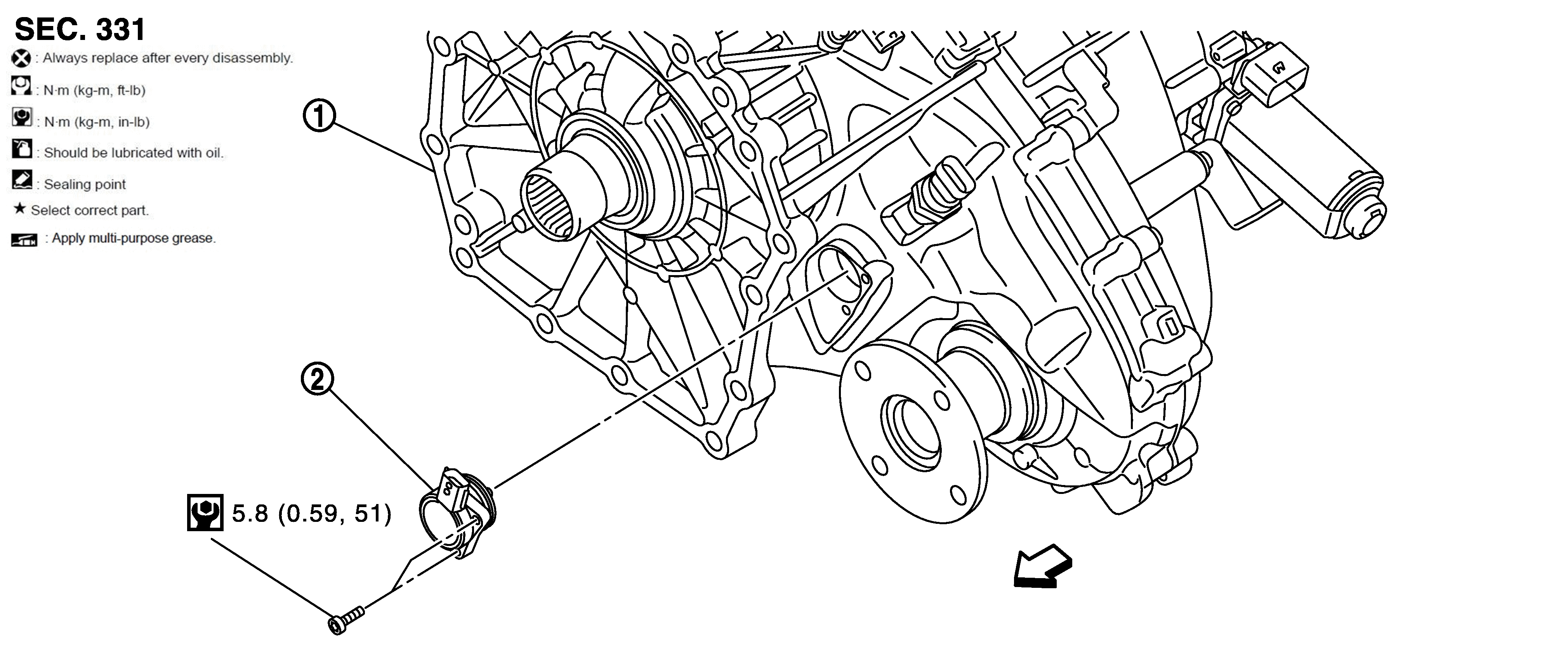

Fig 1: Exploded View Of Transfer Rotary Position Sensor With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Transfer assembly	2.	Transfer rotary position sensor
: Vehicle front
Refer to COMPONENTS for symbols not described above.
