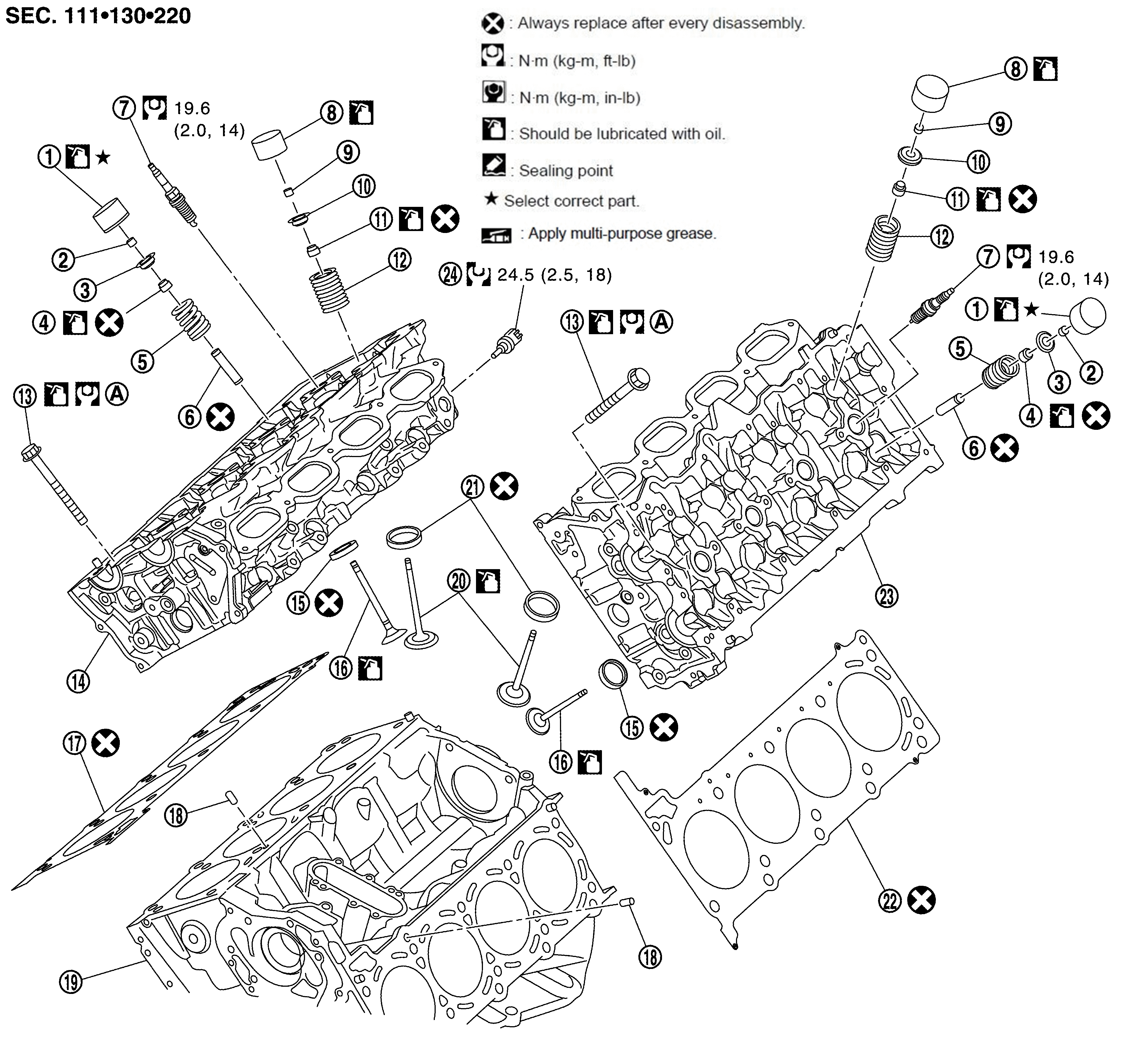

Exploded View With Torque Specifications
| 1. | Valve lifter (EXH) | 2. | Valve collet (EXH) | 3. | Valve spring retainer (EXH) |
| 4. | Valve oil seal (EXH) | 5. | Valve spring (with valve spring seat) (EXH) | 6. | Valve guide (EXH) |
| 7. | Spark plug | 8. | Valve lifter (INT) | 9. | Valve collet (INT) |
| 10. | Valve spring retainer (INT) | 11. | Valve oil seal (INT) | 12. | Valve spring (with valve spring seat) (INT) |
| 13. | Cylinder head bolt | 14. | Cylinder head (bank 2) | 15. | Valve seat (EXH) |
| 16. | Valve (EXH) | 17. | Cylinder head gasket (bank 2) | 18. | Oil filter (for VVEL ladder assembly) |
| 19. | Cylinder block | 20. | Valve (INT) | 21. | Valve seat (INT) |
| 22. | Cylinder head gasket (bank 1) | 23. | Cylinder head (bank 1) | 24. | Engine coolant temperature sensor |
| A. | Comply with the installation procedure when tightening. Refer to REMOVAL AND INSTALLATION . | ||||
| Refer to COMPONENTS for symbol marks in the figure. | |||||
CAUTION:
A high degree of precision is required for a valve on the intake side. Never remove the valve related parts unless necessary.
NOTE:
- As for replacement of parts on the intake side as shown in the exploded view, replace VVEL ladder assembly & cylinder head assembly. (Only valve oil seals are replaceable as a single part.)
- VVEL ladder assembly cannot be replaced as a single part, because it is machined together with cylinder head assembly.
