Removal And Installation: Installation

Remove the transfer control actuator. Refer to EXPLODED VIEW
Shift transfer assembly into AUTO as follows.
1. Install the spline socket (A) [SST: KV10119400 (-)] to transfer assembly in the figure.

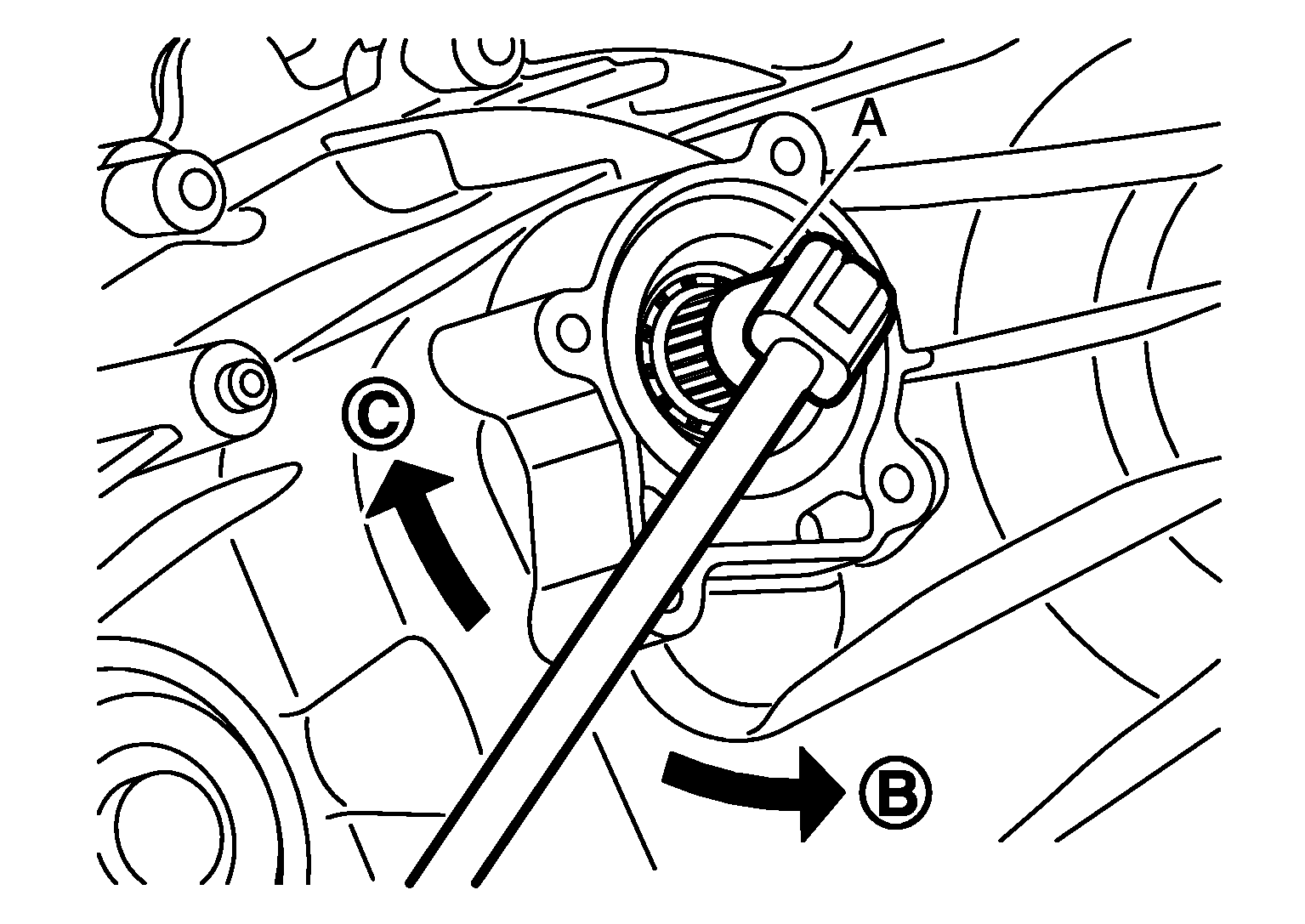

  Fig 1: Checking Transfer Assembly Using Spline Socket
  Courtesy of NISSAN NORTH AMERICA, INC.
2. Turn the shaft (B) direction and remove the spline socket at a position returning to (C) direction by spring power.
  CAUTION:
  The maximum turning force shall be 30 N•m (3.1 kg - m, 22 ft - lb).
3. Check that the surface fitting transfer rotary position sensor to transfer assembly is in the position shown in the figure below.

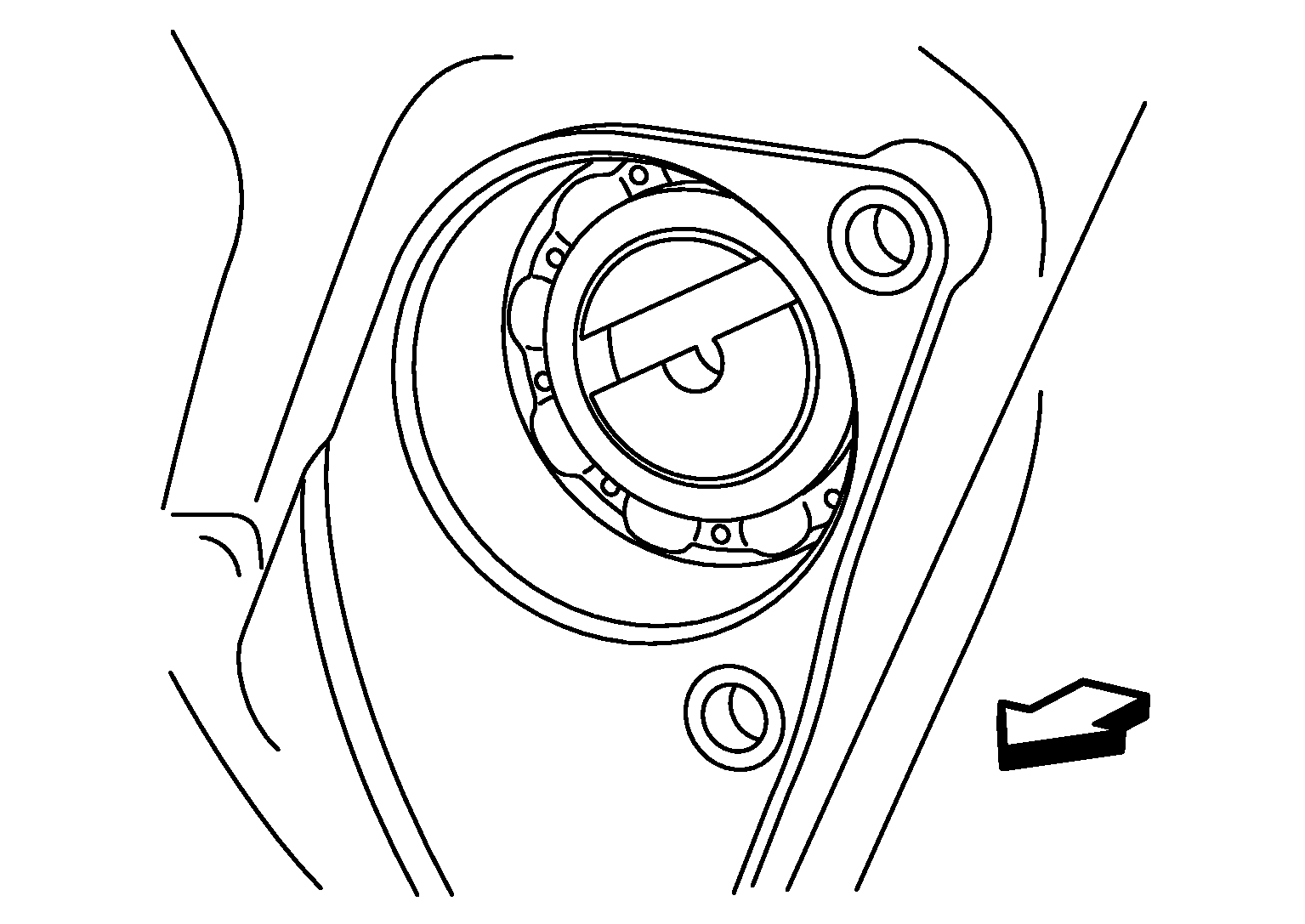

  Fig 2: Transfer Rotary Position Sensor Orientation
  Courtesy of NISSAN NORTH AMERICA, INC.

  : Vehicle front
Install the transfer rotary position sensor.

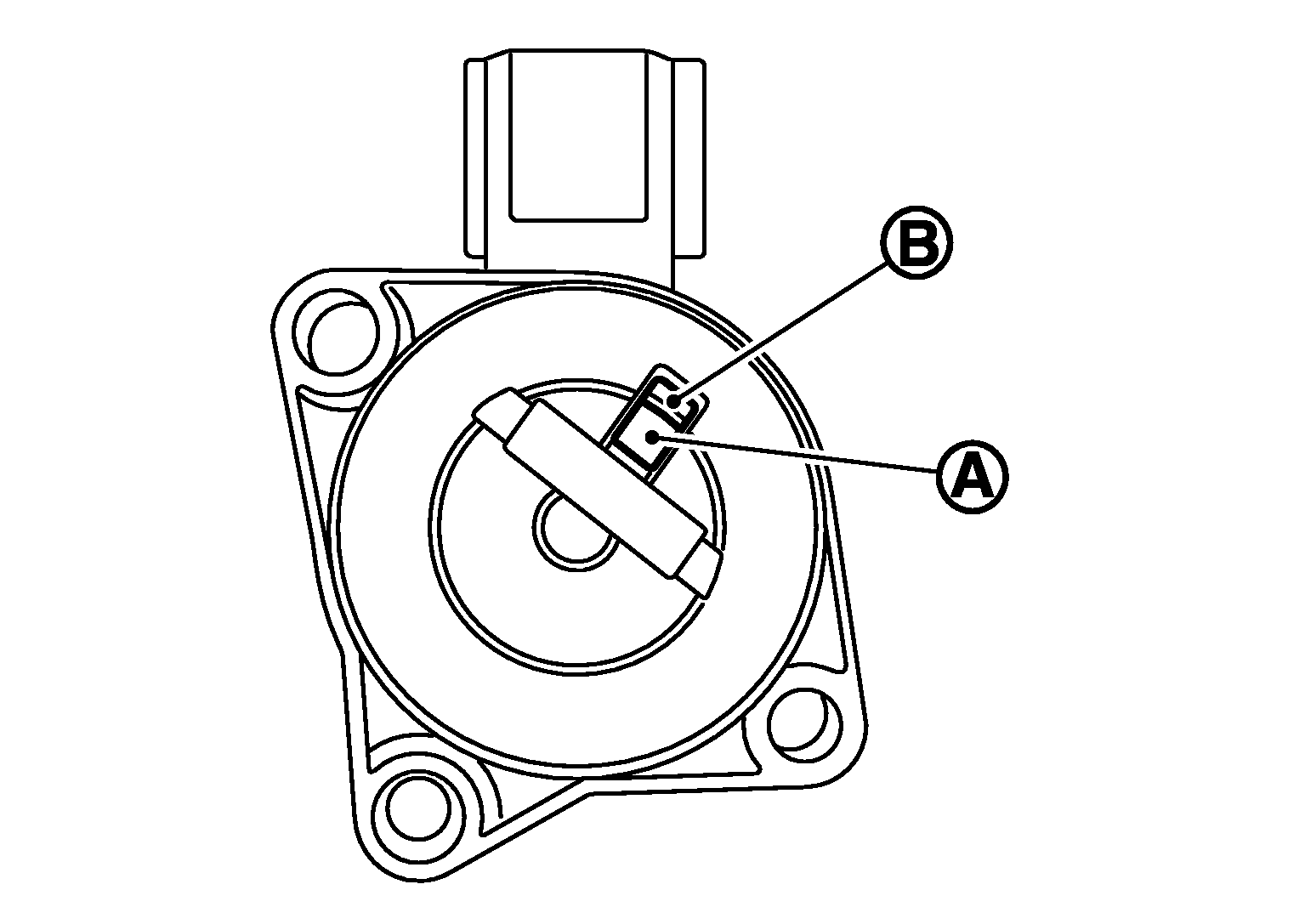

Fig 3: Identifying Transfer Rotary Position Sensor Part Position
Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- Check that part (A) of transfer rotary position sensor is in the position (B).
- Never damage O-ring of transfer rotary position sensor.
Connect transfer rotary position sensor connector.
Install the transfer control actuator. Refer to EXPLODED VIEW .
Perform inspection after installation. Refer to INSPECTION .
When replacing the transfer rotary position sensor, perform learning of transfer rotary position sensor. Refer to WORK PROCEDURE .
