Removal And Installation: Removal

  1. Remove front door finisher. Refer to REMOVAL AND INSTALLATION .

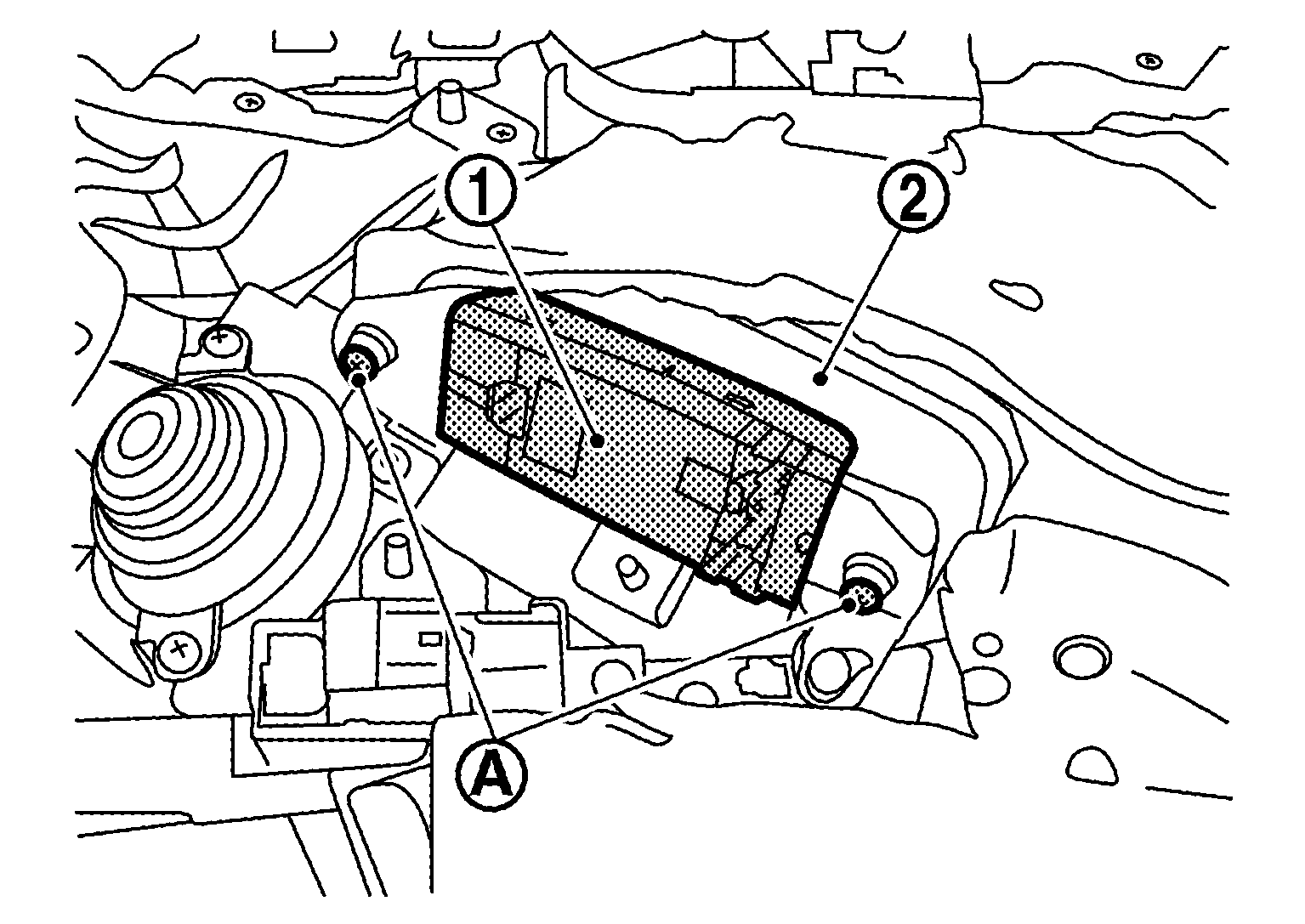

  2. Remove power window main switch mounting screws MARU-A-W , and then remove power window main switch WHITE-1 from front door finisher WHITE-2 .
    G09159604Courtesy of NISSAN NORTH AMERICA, INC.
