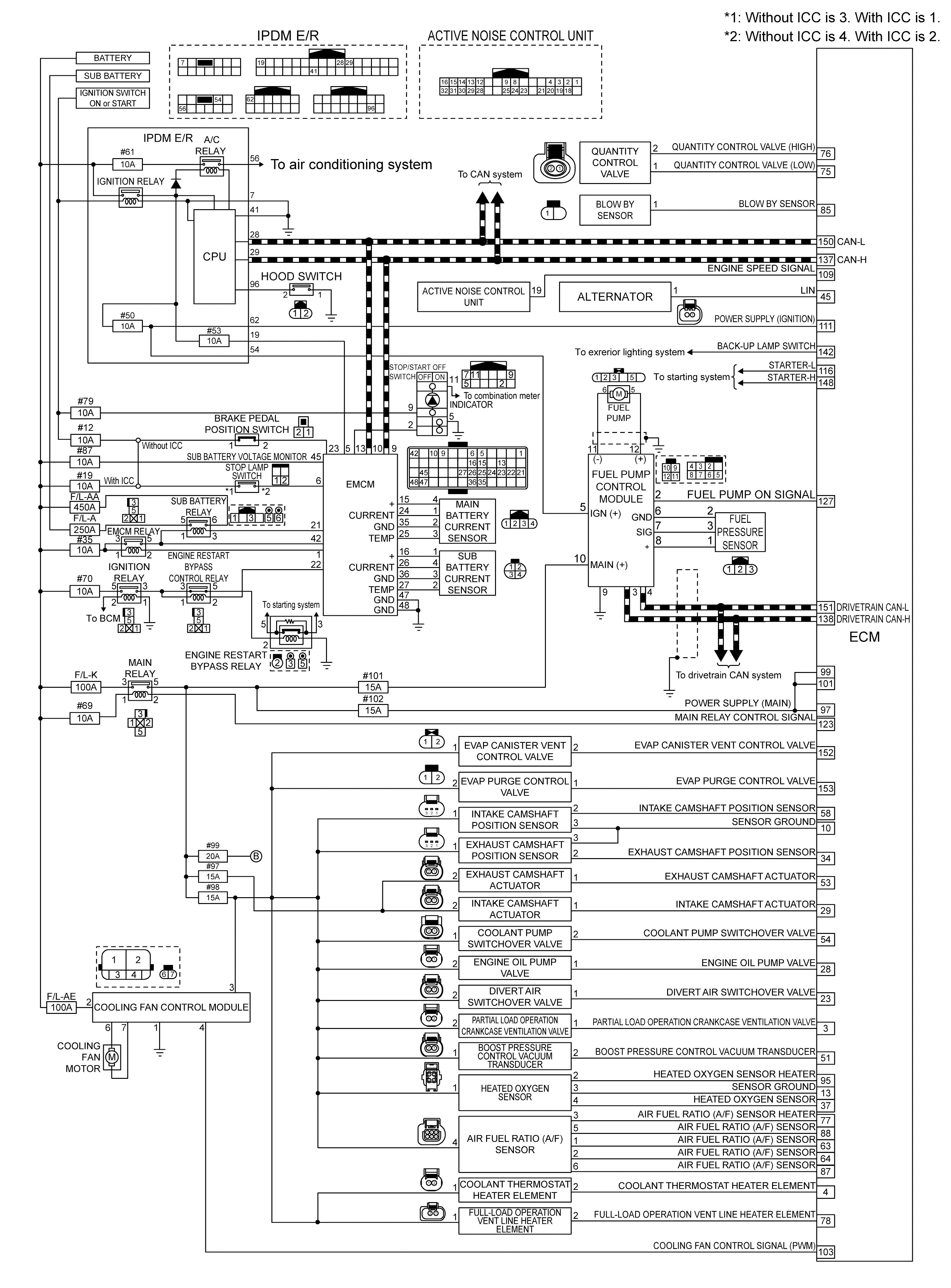

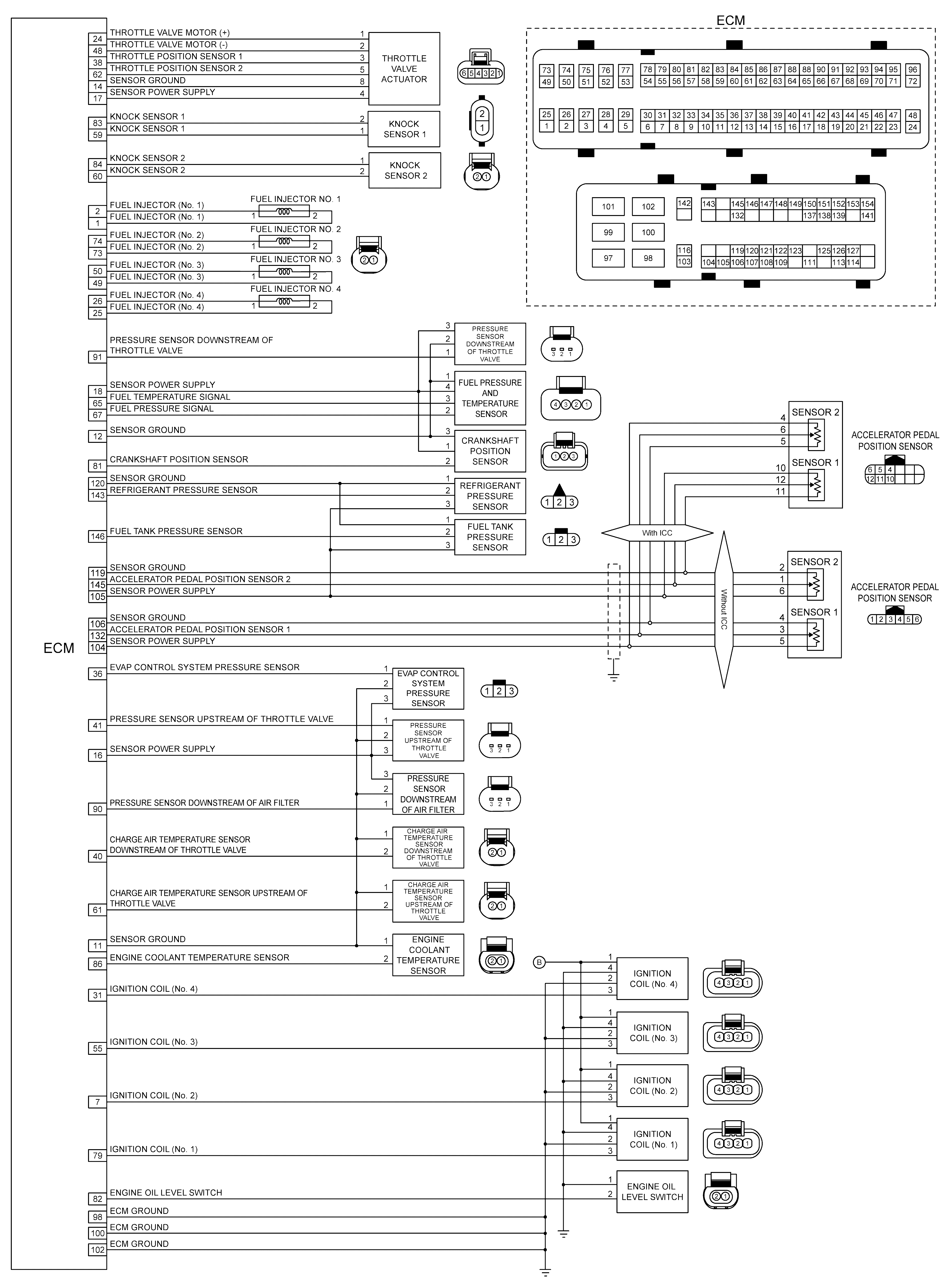

Home › Infiniti › 2016 › Q50 Base, AWD › Repair and Diagnosis › Engine Performance › System › Engine Control System (Introduction) (2.0L) (Except Hybrid) › System Description › System › Engine Control System › Circuit Diagram
