System Diagram
WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
VR30DDTT
 Courtesy of NISSAN NORTH AMERICA, INC.
|

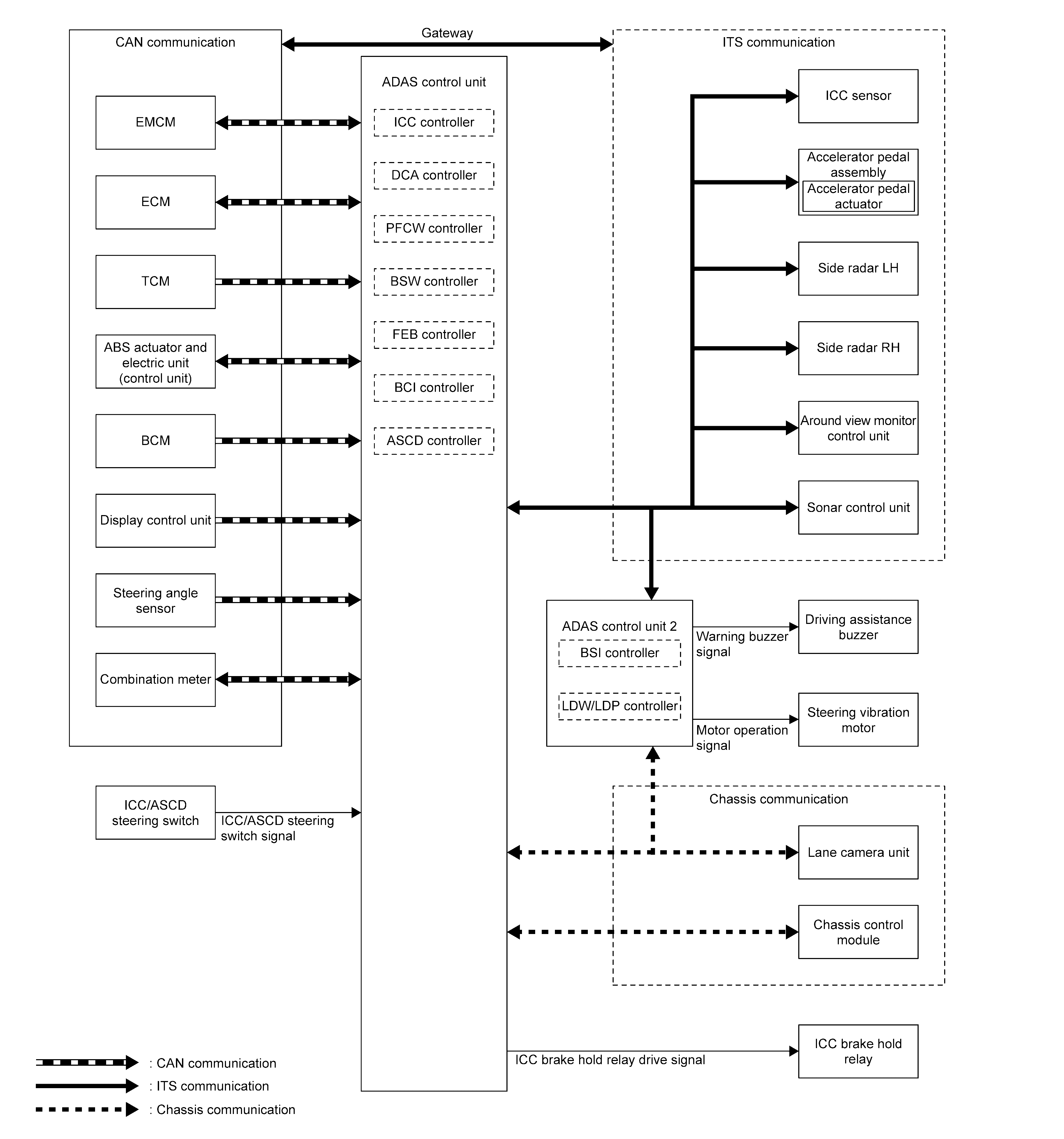

2.0 TURBO GASOLINE ENGINE

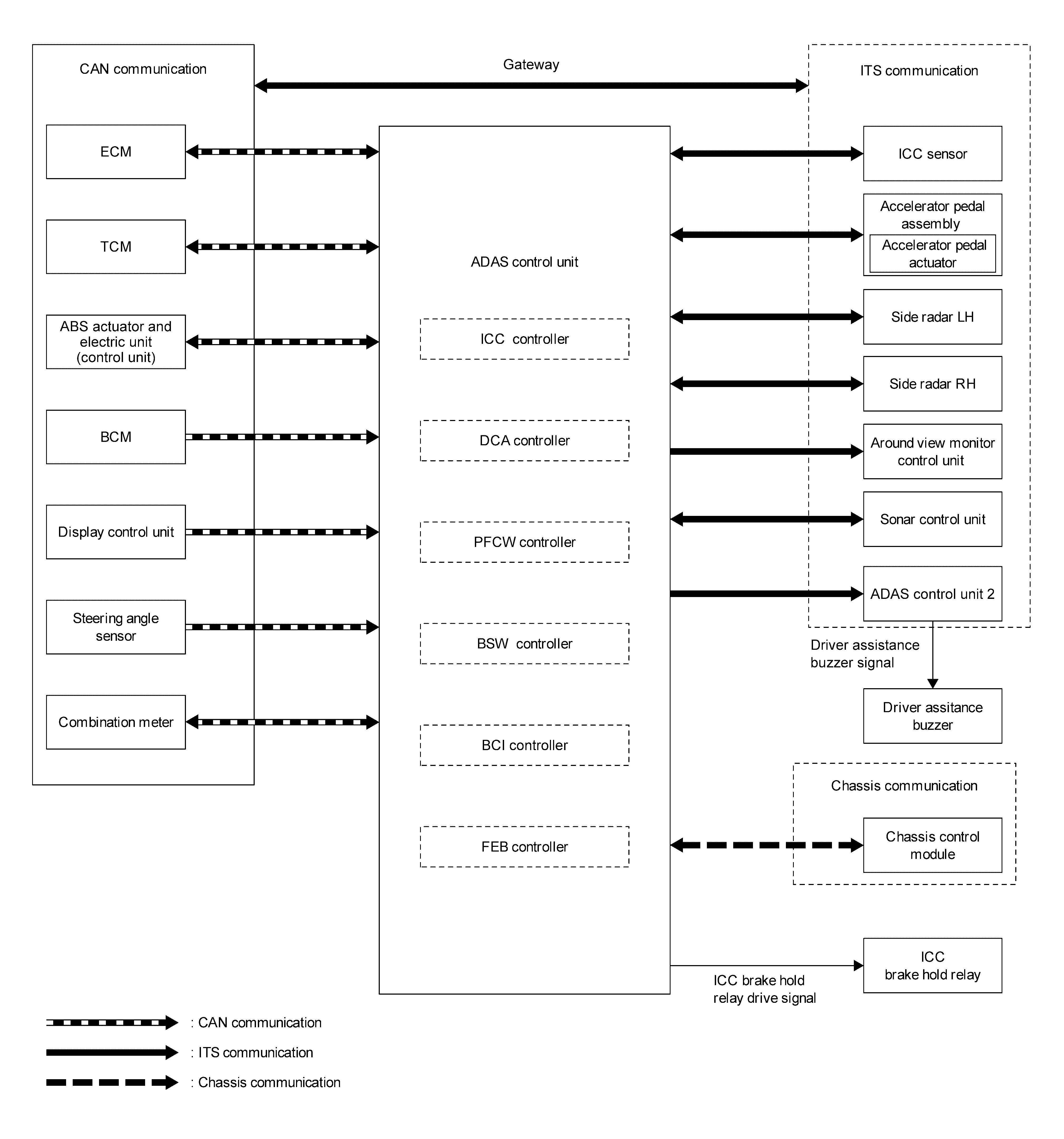

 Courtesy of NISSAN NORTH AMERICA, INC.
|
NOTE:
TCM is connected to drivetrain CAN communication and transmits a CAN communication signal to ADAS control unit via ECM.
