For VR30DDTT Engine Models (Except For MEXICO)

WARNING: This page is about a different car, the 2017 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

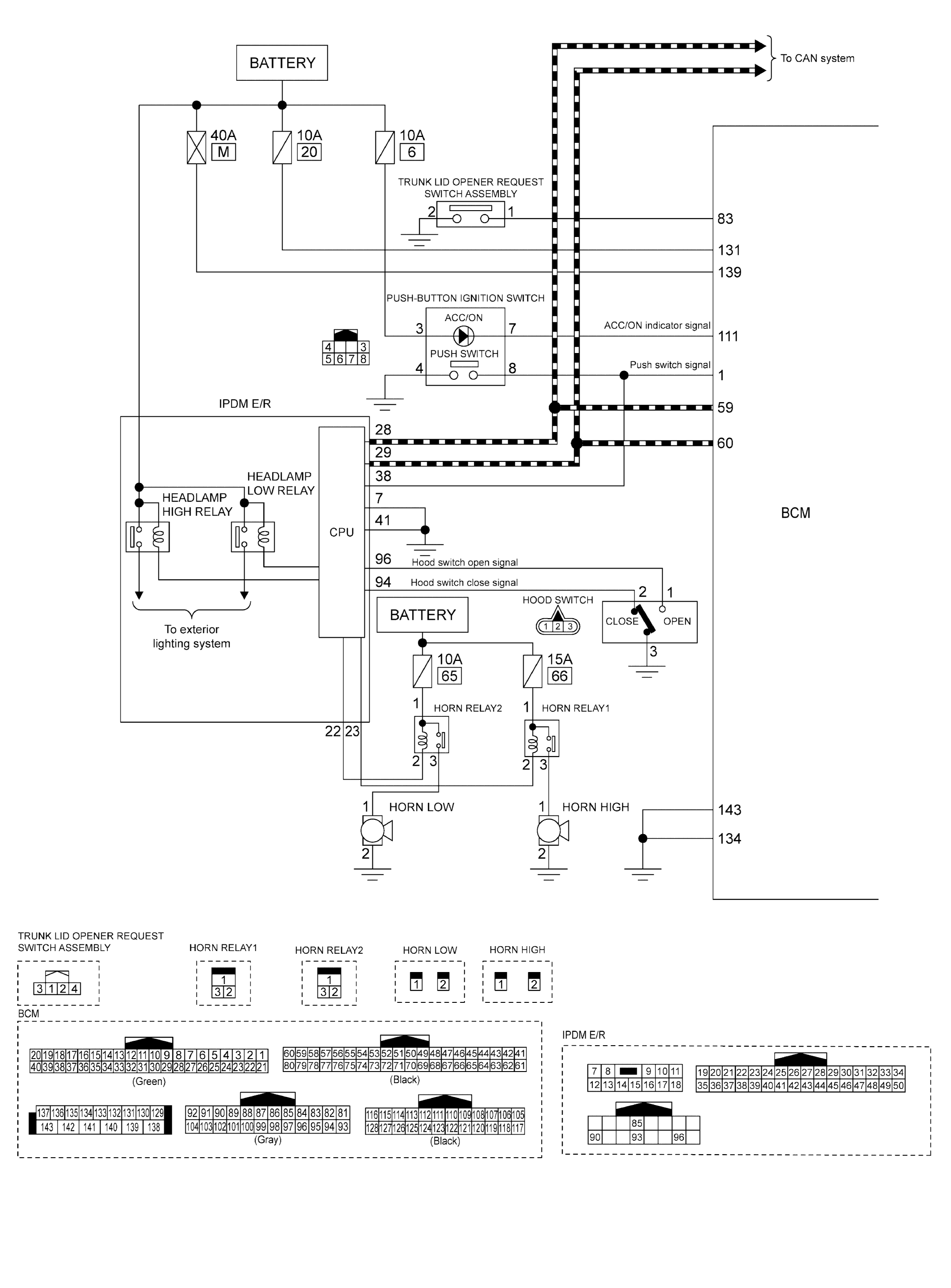

GNSJMKIB8729GB-729Courtesy of NISSAN NORTH AMERICA, INC.
GNSJMKIB8730GB-730Courtesy of NISSAN NORTH AMERICA, INC.
