Section 16 (Power Window Control System (Hybrid))
›
System Description
›
System
›

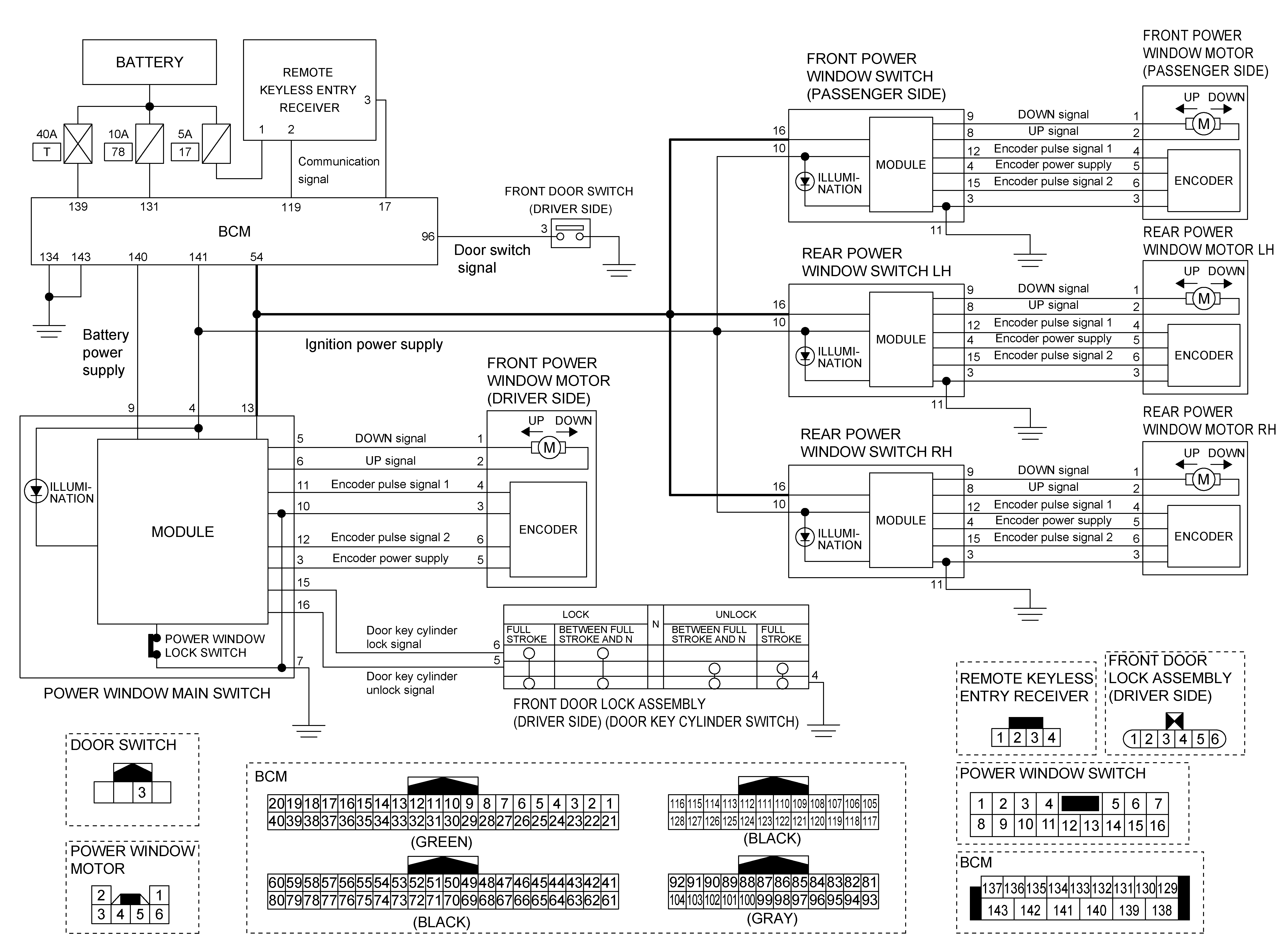

Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of NISSAN NORTH AMERICA, INC.
