Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

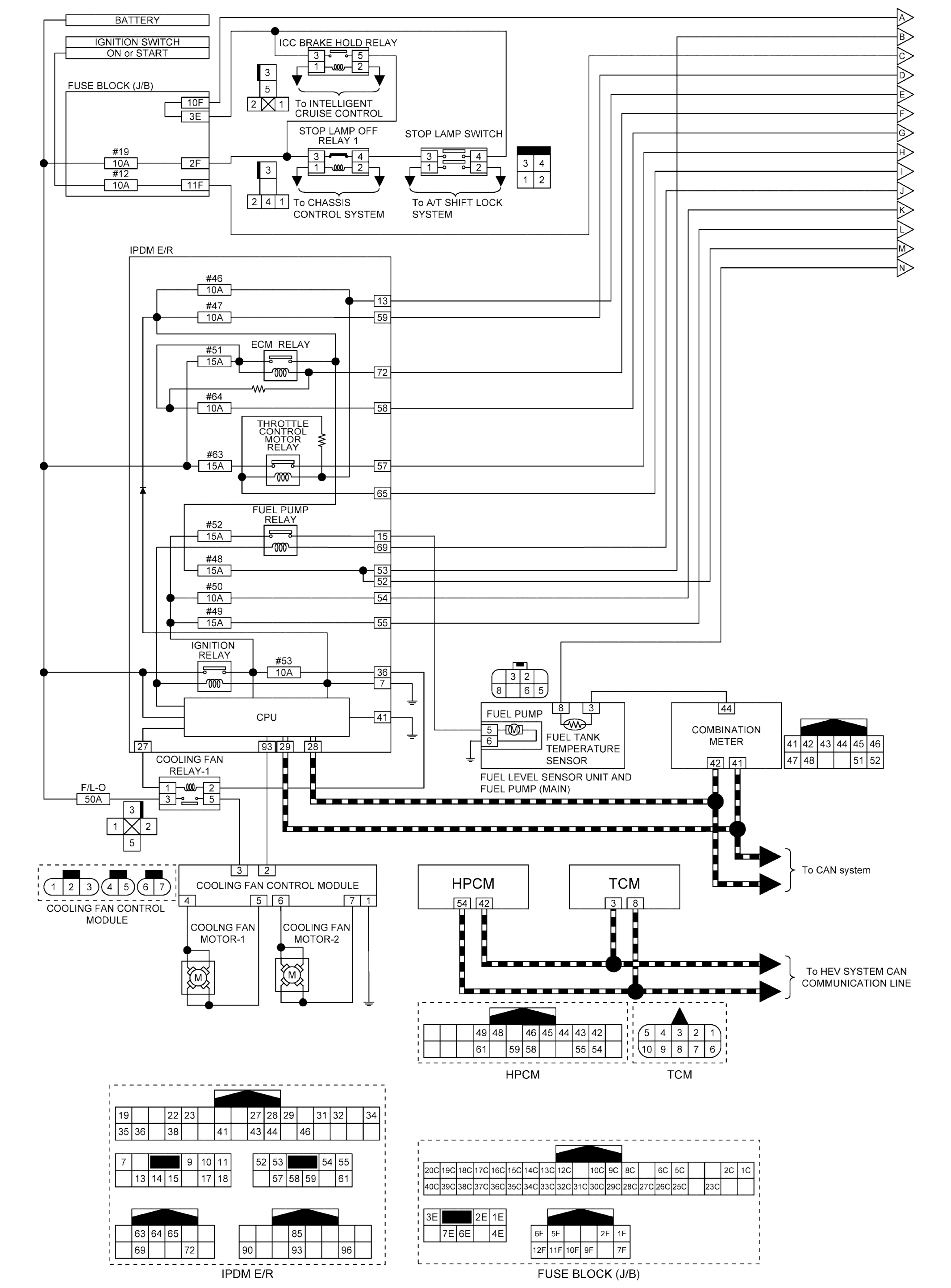

GNSJSBIA9513GB-513Courtesy of NISSAN NORTH AMERICA, INC.

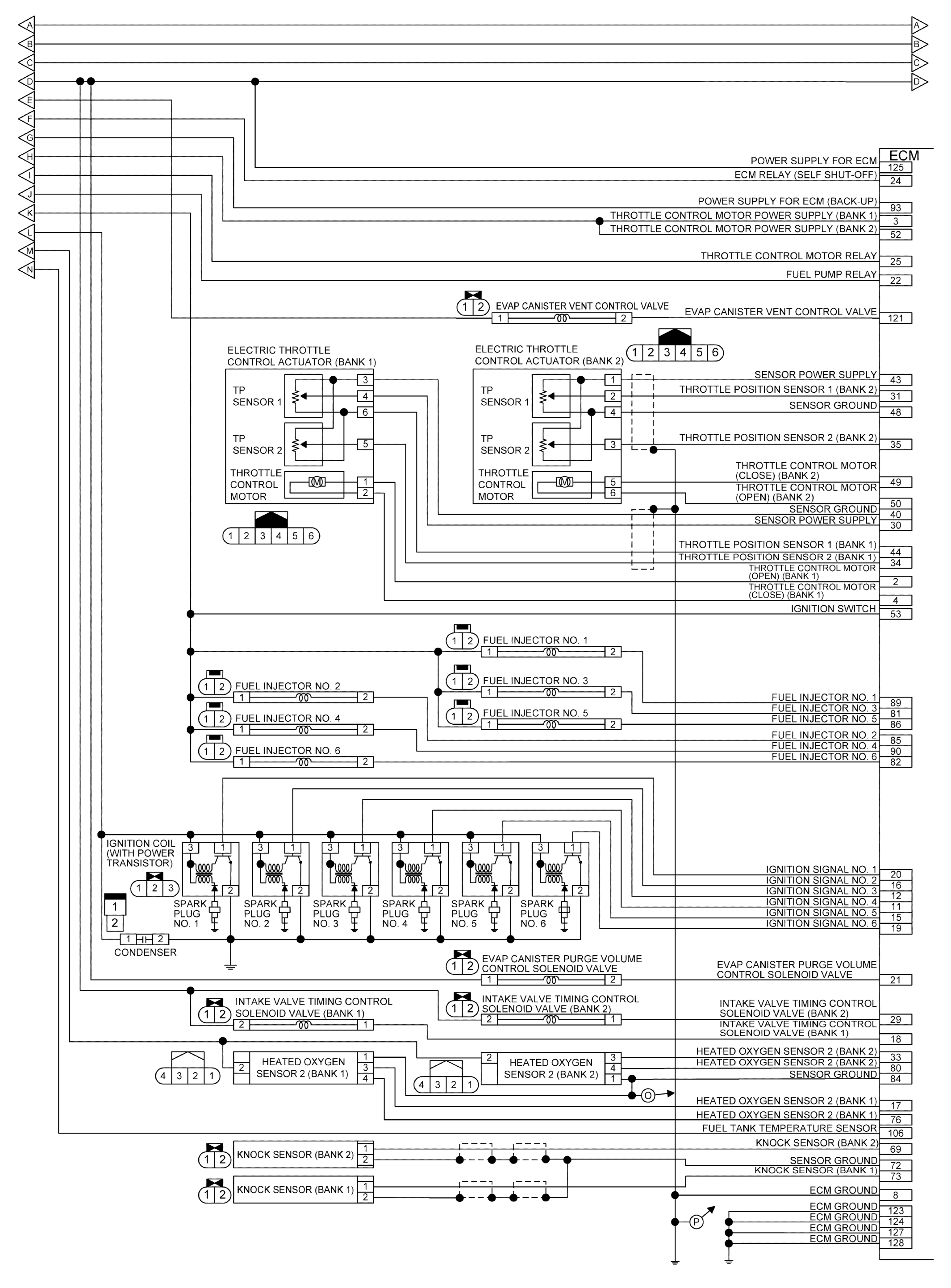

GNSJSBIA9514GB-514Courtesy of NISSAN NORTH AMERICA, INC.

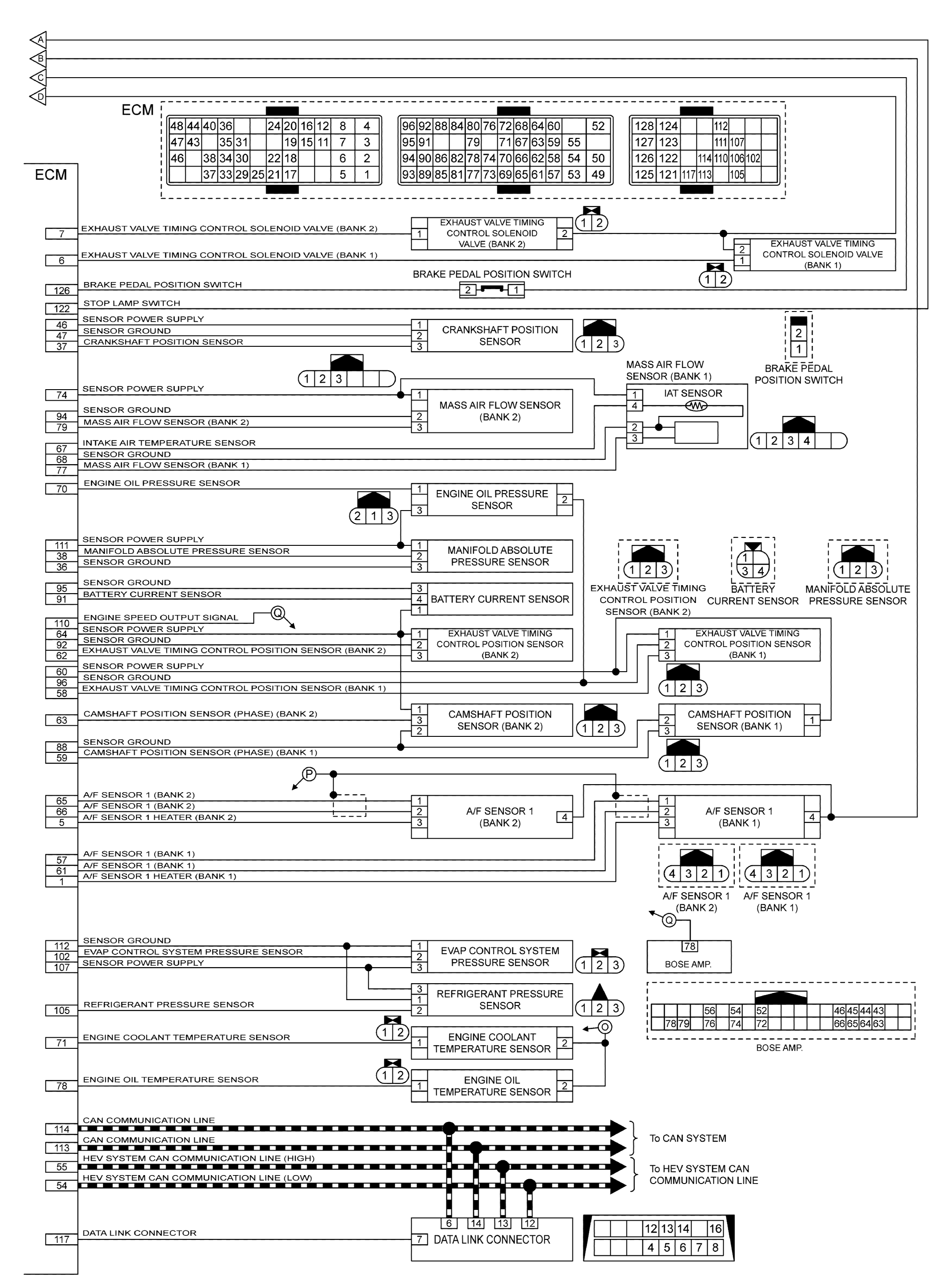

GNSJSBIA5894GB-894Courtesy of NISSAN NORTH AMERICA, INC.
