Compressor Connector End View (F44)

Connector Types:  RK02FGY

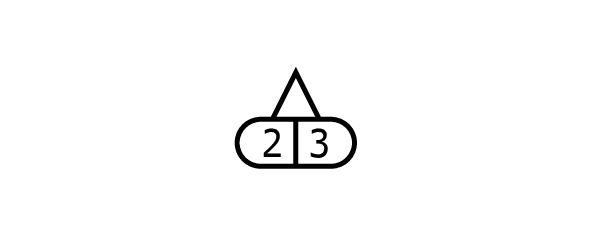

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

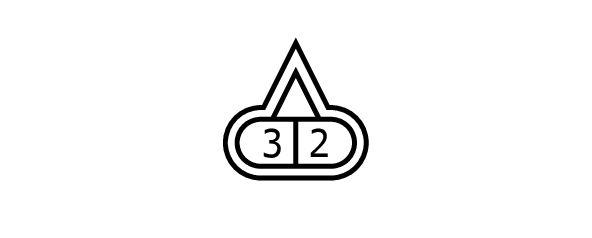

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
2	Y	-
3	BG	- [Without ICC]
3	O	- [With ICC]
