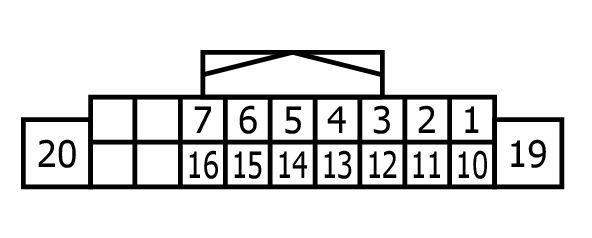

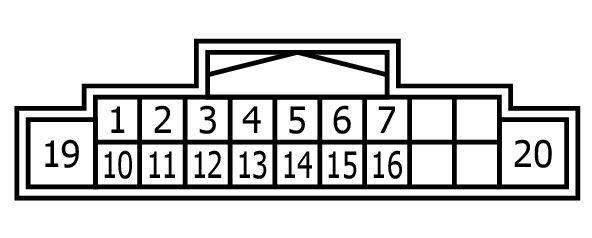

Av Control Unit Connector End View (M208)
Connector Types: TH18FW-CS2
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 1 | V | AMP. ON SIGNAL |
| 2 | P | SOUND SIGNAL FRONT LH (+) |
| 3 | L | SOUND SIGNAL FRONT LH (-) |
| 4 | V | SOUND SIGNAL REAR LH (+) |
| 5 | LG | SOUND SIGNAL REAR LH (-) |
| 6 | P | STRG SW A |
| 7 | BG | ACC RELAY CONT |
| 10 | B | SHIELD |
| 11 | R | SOUND SIGNAL FRONT RH (+) |
| 12 | G | SOUND SIGNAL FRONT RH (-) |
| 13 | BR | SOUND SIGNAL REAR RH (+) |
| 14 | Y | SOUND SIGNAL REAR RH (-) |
| 15 | B | STRG SW GND |
| 16 | L | STRG SW B |
| 19 | Y | BATTERY |
| 20 | B | GROUND |
