Av Control Unit Connector End View (M211)

Connector Types:  TH28FW

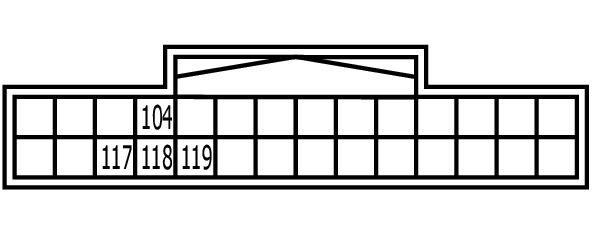

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

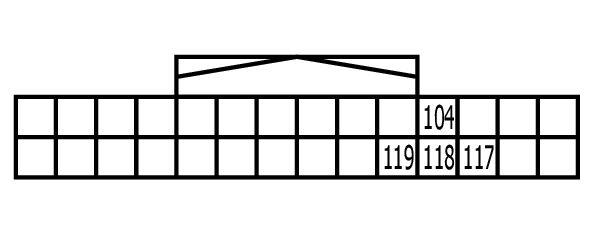

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
104	W	AUX SOUND SIGNAL LH
117	SHIELD	SHIELD
118	R	AUX SOUND SIGNAL RH
119	B	AUX GND
