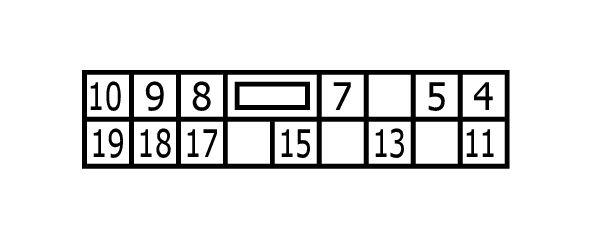

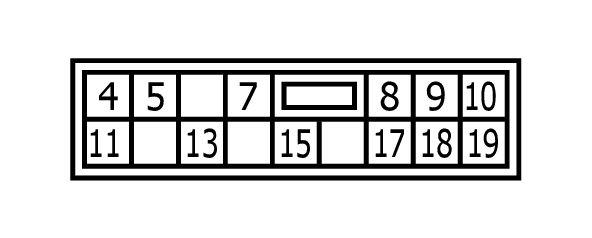

BCM (Body Control Module) Connector End View (M119)
Connector Types: NS16FW-CS
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 4 | P | INT ROOM LAMP PWR SUPPLY (BAT SAVE) |
| 5 | V | PASSENGER DOOR UNLOCK OUTPUT |
| 7 | Y | STEP LAMP OUTPUT |
| 8 | V | ALL DOOR, FUEL LID LOCK OUTPUT |
| 9 | G | DRIVER DOOR, FUEL LID UNLOCK OUTPUT |
| 10 | BR | REAR DOOR UNLOCK OUTPUT |
| 11 | R | BAT (FUSE) |
| 13 | B | GROUND |
| 15 | Y | ACC IND |
| 17 | W | TURN SIGNAL RH (FRONT) |
| 18 | BG | TURN SIGNAL LH (FRONT) |
| 19 | SB | ROOM LAMP TIMER |
