Compressor Connector End View (F43)

Connector Types:  RS01FB

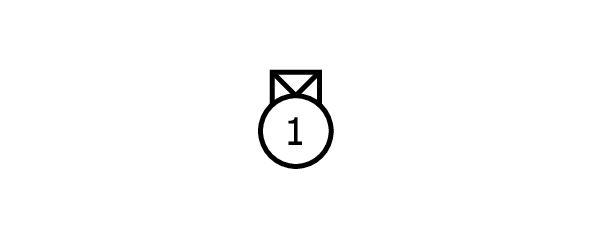

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

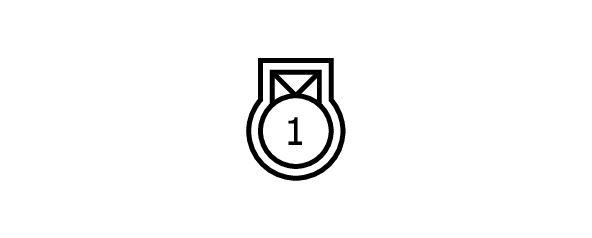

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	L	- [With VQ engine]
1	Y	- [With VK engine]
