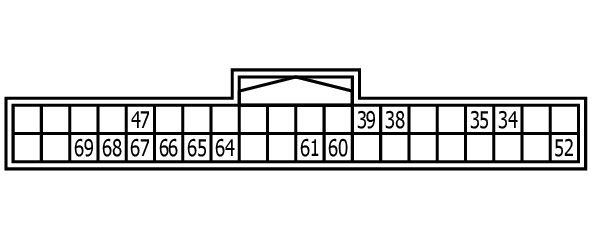

BCM (Body Control Module) Connector End View (M121)
Connector Types: TH40FGY-NH
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 34 | SB | LUGGAGE ROOM ANT- |
| 35 | V | LUGGAGE ROOM ANT+ |
| 38 | B | BACK DOOR ANT- |
| 39 | W | BACK DOOR ANT+ |
| 47 | Y | IGN RELAY (IPDM E/R) CONT |
| 52 | LG | STARTER RELAY CONT |
| 60 | SB | ENG_START_SW |
| 61 | W | TRUNK_REQUEST_SW |
| 64 | L | I-KEY WARN BUZZER (ENG ROOM) |
| 65 | BG | REAR WIPER STOP POSITION |
| 66 | LG | BACK DOOR SW |
| 67 | P | BACK DOOR OPENER SW |
| 68 | BR | REAR RH DOOR SW |
| 69 | R | REAR LH DOOR SW |
