Component Location

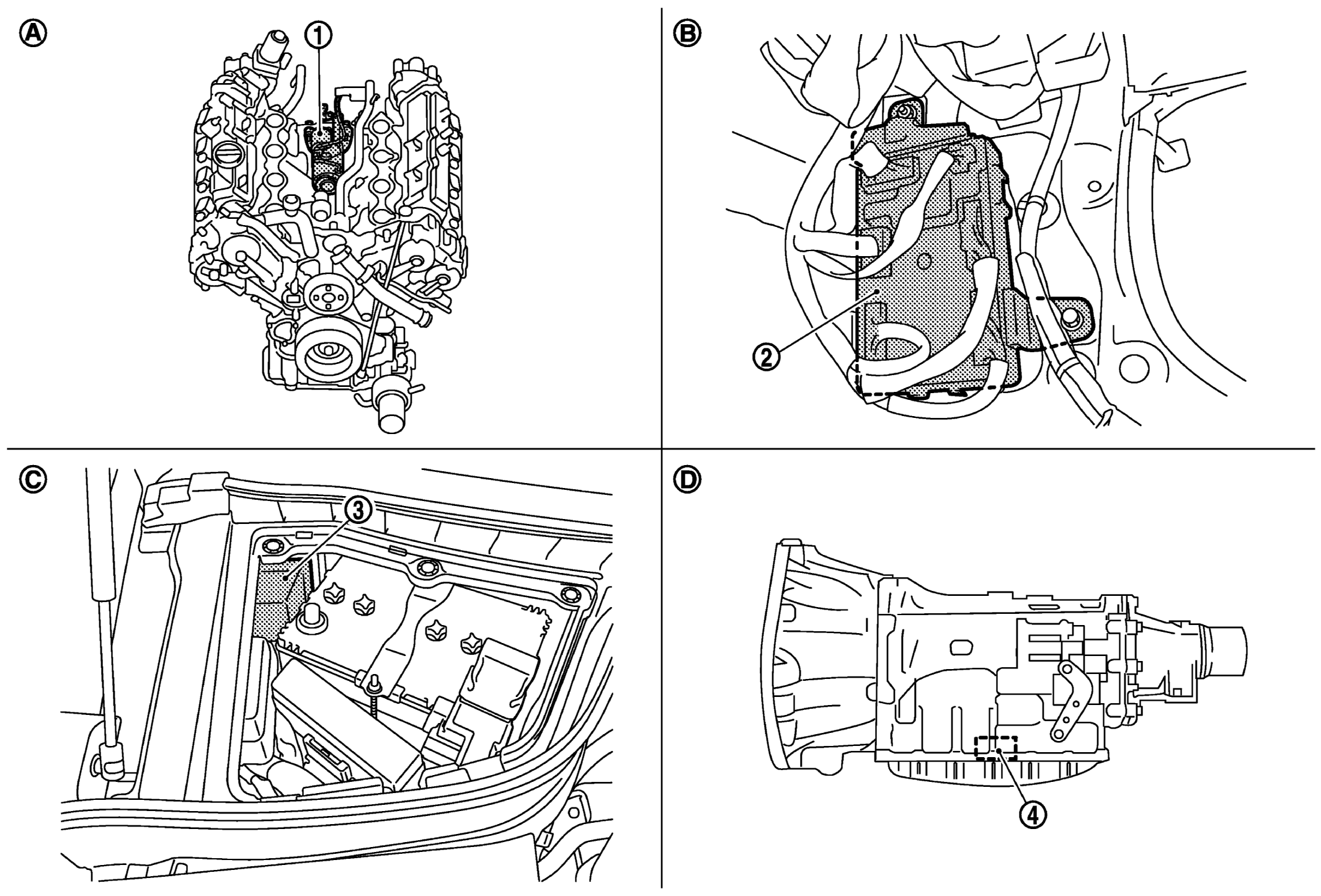

GNSJPBIA2375ZZ-375Courtesy of NISSAN NORTH AMERICA, INC.
1. Starter motor 2. BCM 3. IPDM E/R
4. TCM
A. Engine B. Dash side lower (Passenger side) C. Engine room dash panel RH
D. Inside of A/T (built into A/T)
