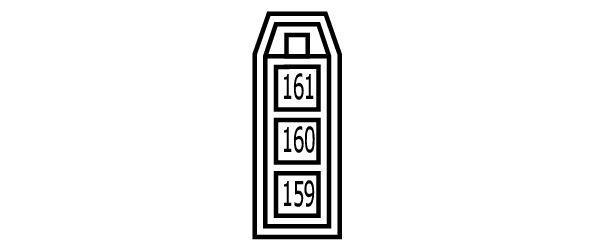

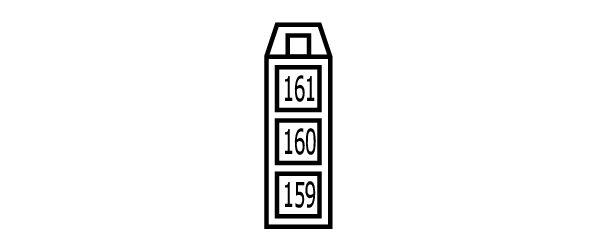

Av Control Unit Connector End View (M319)
Connector Types:
GT13SH-2_1S-HU
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 159 |
- |
FM SUB |
| 160 |
- |
AM-FM MAIN |
| 161 |
- |
ANTENNA AMP. ON SIGNAL |
