Av Control Unit Connector End View (M323)

Connector Types:  FAKRA_JACK

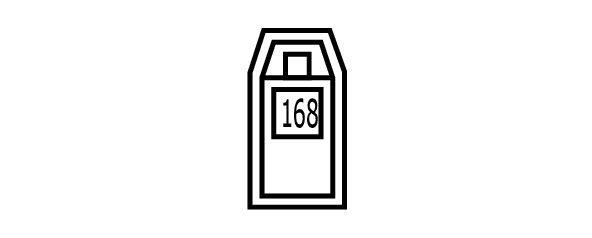

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

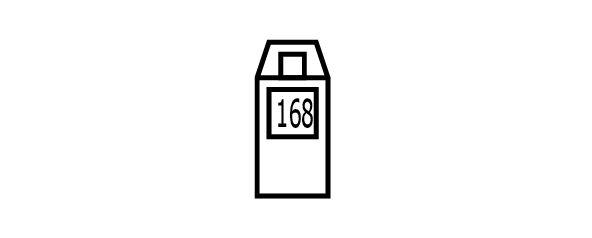

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
168	-	SATELLITE RADIO ANTENNA SIGNAL
