Intake Sensor Connector End View (M257)

Connector Types:  C02FW

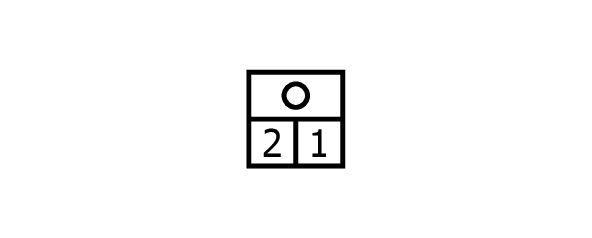

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

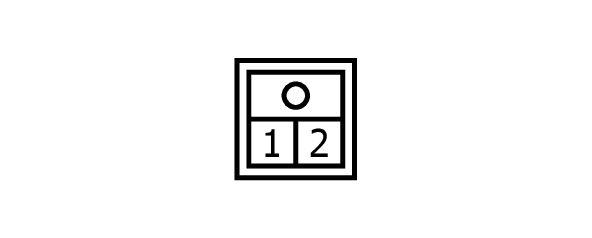

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	R	-
2	B/O	-
