Remote Keyless Entry Receiver Connector End View (B20)

Connector Types:  TK04FW

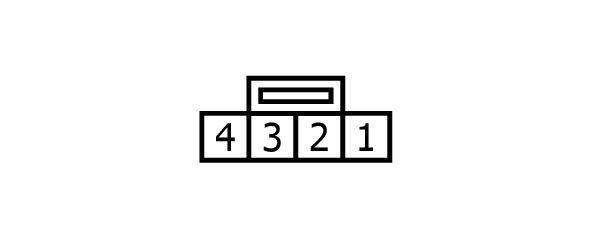

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

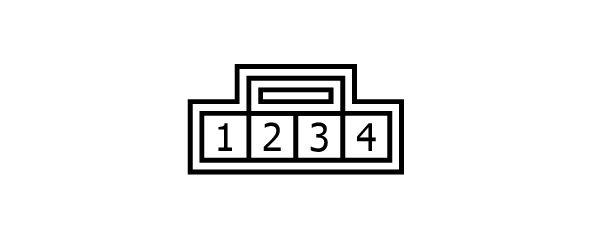

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	BR	-
2	W/B	-
3	G/R	-
4	B/Y	-
