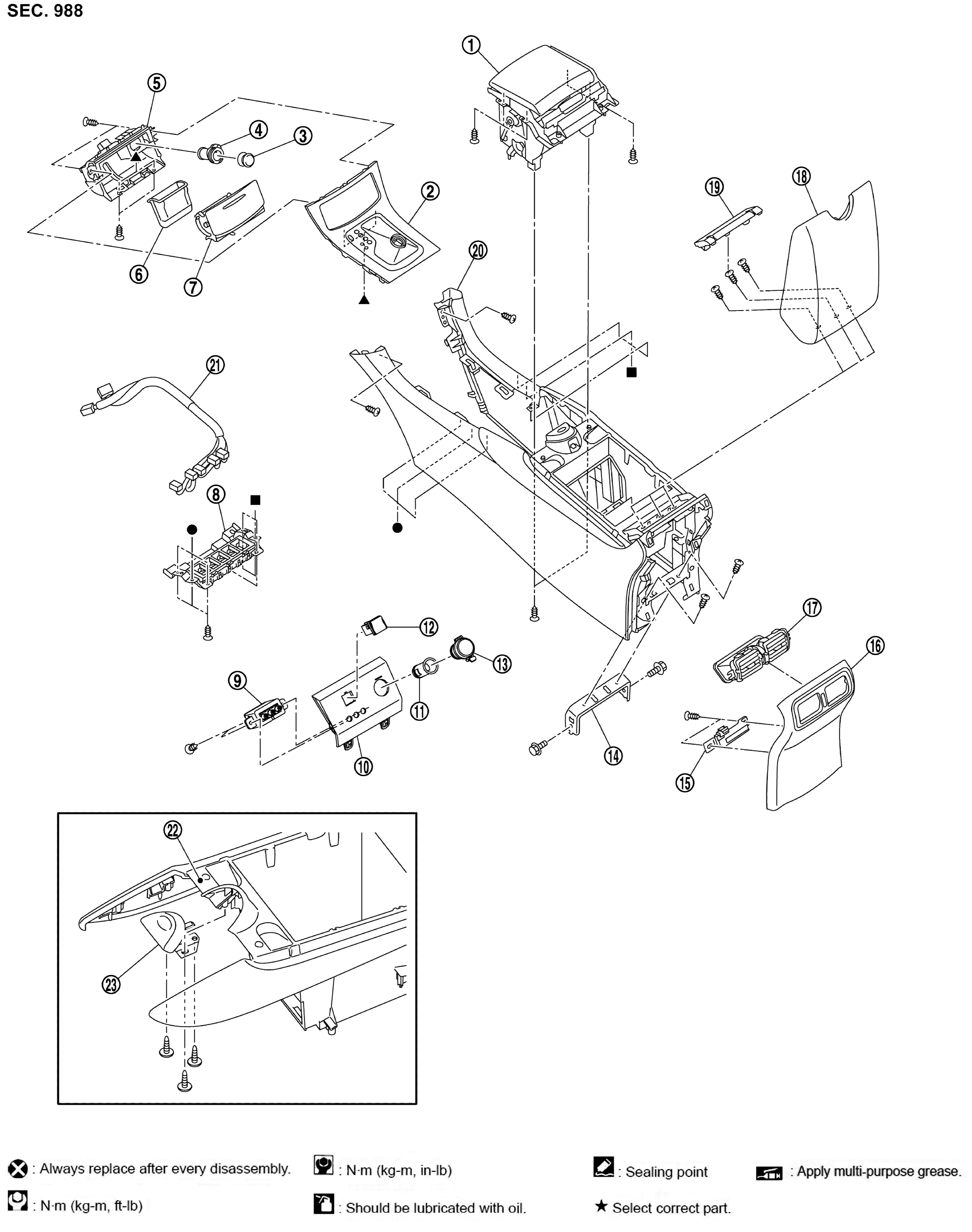

Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Cup holder assembly	2.	Console finisher assembly	3.	Socket knob
4.	Socket inner case	5.	Pocket	6.	Inner ashtray
7.	Ashtray lid	8.	Switch panel	9.	Auxiliary input jack
10.	Console center finisher	11.	Socket inner case	12.	USB connector
13.	Socket knob	14.	Console bracket	15.	Inside key antenna
16.	Console rear finisher	17.	Rear ventilator grille	18.	Console lid assembly
19.	Console mask	20.	Center console assembly	21.	Console sub harness
22.	Console box	23.	Console lid release button
, , : Indicates that the part is connected at points with same symbol in actual vehicle.
