Component Location
WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

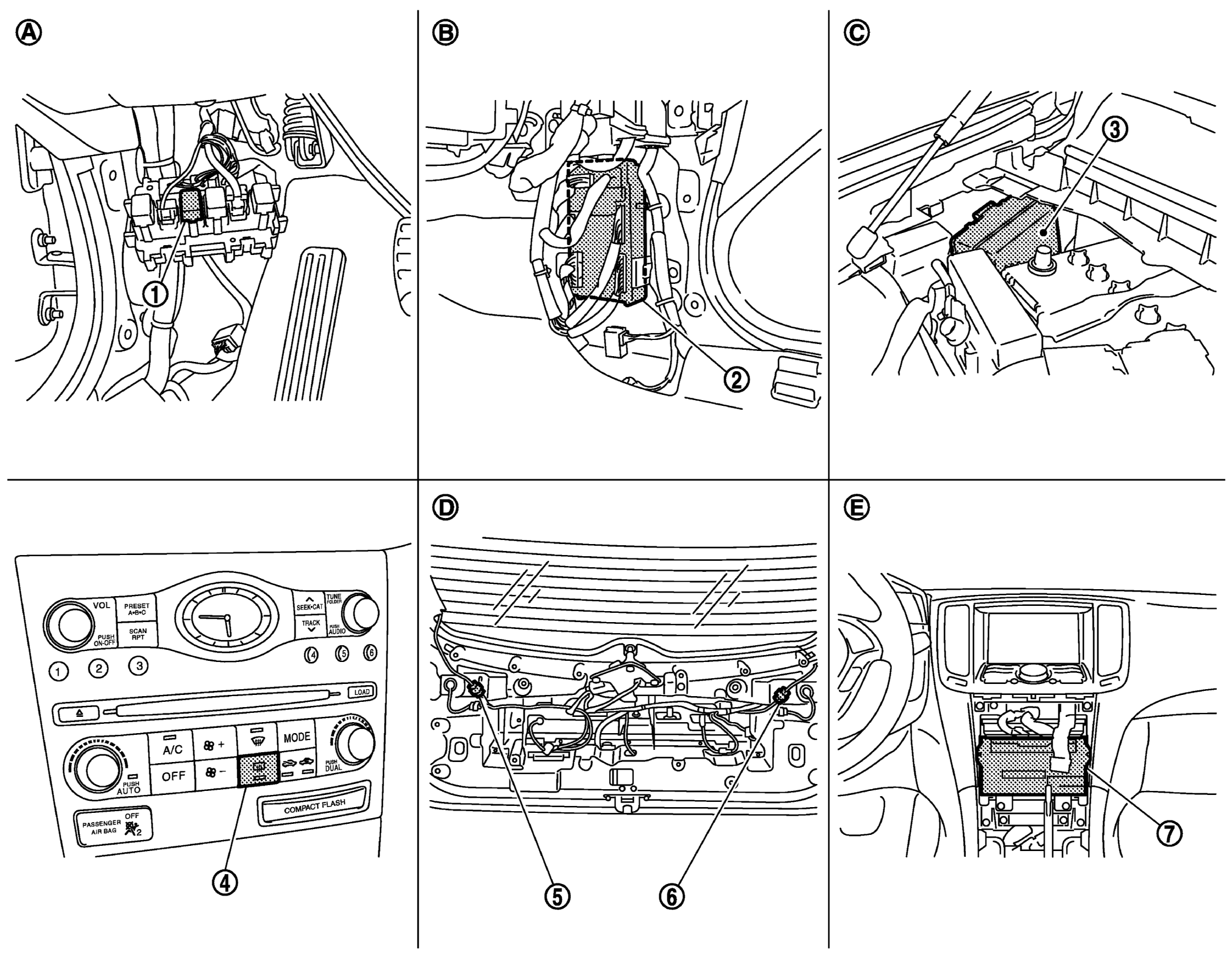

| 1. | Rear window defogger relay | 2. | BCM | 3. | IPDM E/R |
| 4. | Rear window defogger switch (built-in multifunction switch) | 5. | Rear window defogger connector | 6. | Rear window defogger connector |
| 7. | AV control unit | ||||
| A. | Dash side lower (driver side) | B. | Dash side lower (passenger side) | C. | Engine room dash panel (RH) |
| D. | Behind back door finisher | E. | Behind cluster lid C |
